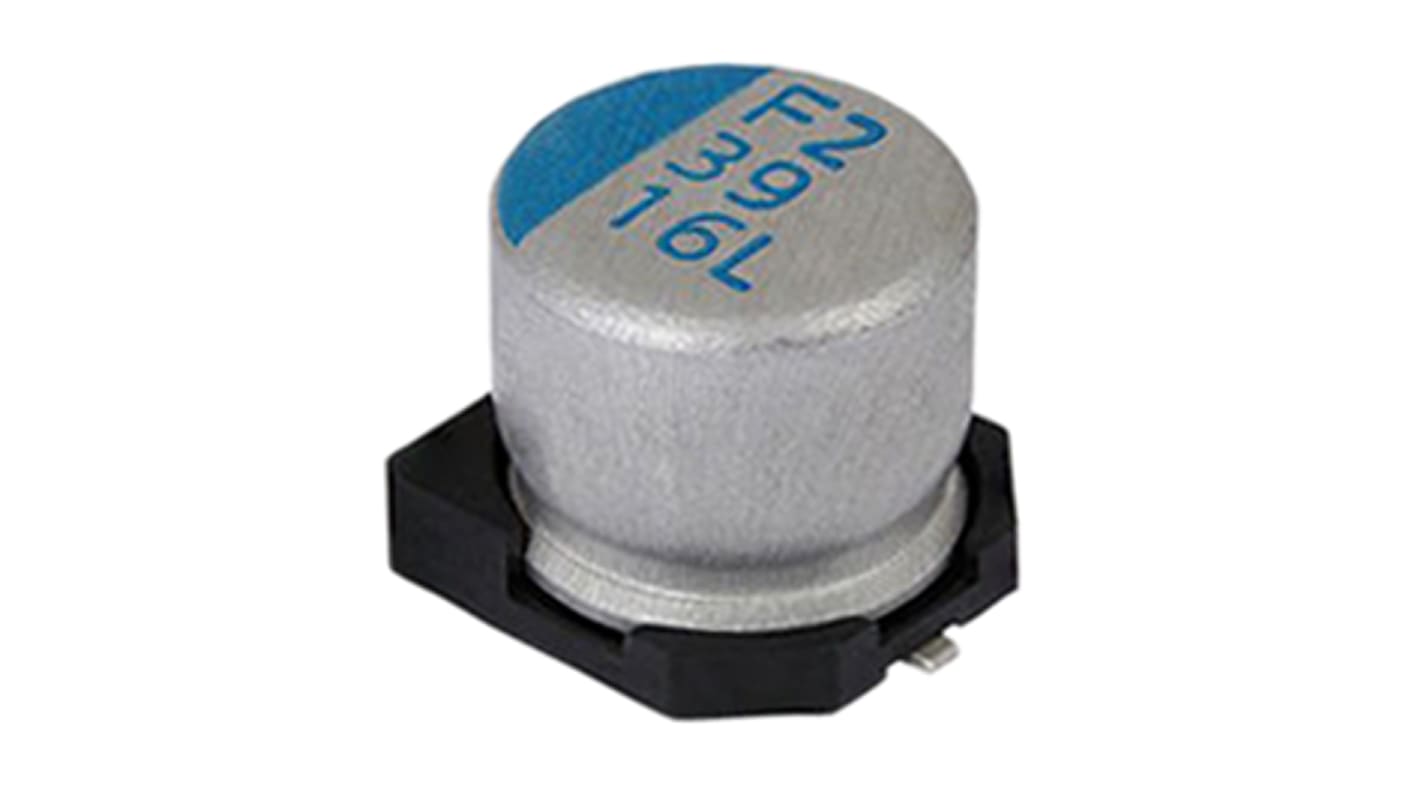

Vishay 120μF Polymer Aluminium Polymer Capacitor 16V dc, Surface Mount - MAL218197505E3

View all Aluminium Capacitors
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Packaging Options:
RS Stock No.:
914-3667
Mfr. Part No.:
MAL218197505E3
Brand:
Vishay
Find similar products by selecting one or more attributes.
Select all

Brand

Vishay

Capacitance

120µF

Voltage

16V dc

Mounting Type

Surface Mount

Technology

Polymer

Dimensions

8.4 x 8.4 x 6.7mm

Height

6.7mm

Length

8.4mm

Depth

8.4mm

Minimum Operating Temperature

-55°C

Maximum Operating Temperature

+105°C

Lead Pitch

3.1mm

Lifetime

5000h

Tolerance

±20%

Leakage Current

384 μA

Series

181 CPL

Ripple Current

2.8A

Polarised

Polar

Dissipation Factor

0.12%

Aluminium Polymer Capacitor, 181 CPL Series


Vishay 181 CPL Series Conductive Polymer SMD Low Impedance Aluminium Capacitors which have a high temperature range up to 105°C.

Features and Benefits:


Useful life up to 2500 hours at 105°C
Low ESR and highest ripple current
SMD-version with base plate, lead free and reflow solderable

Applications:


SMD technology, for high temperature reflow soldering; Industrial and professional applications; Telecommunications and IT; Portable and mobile equipment
