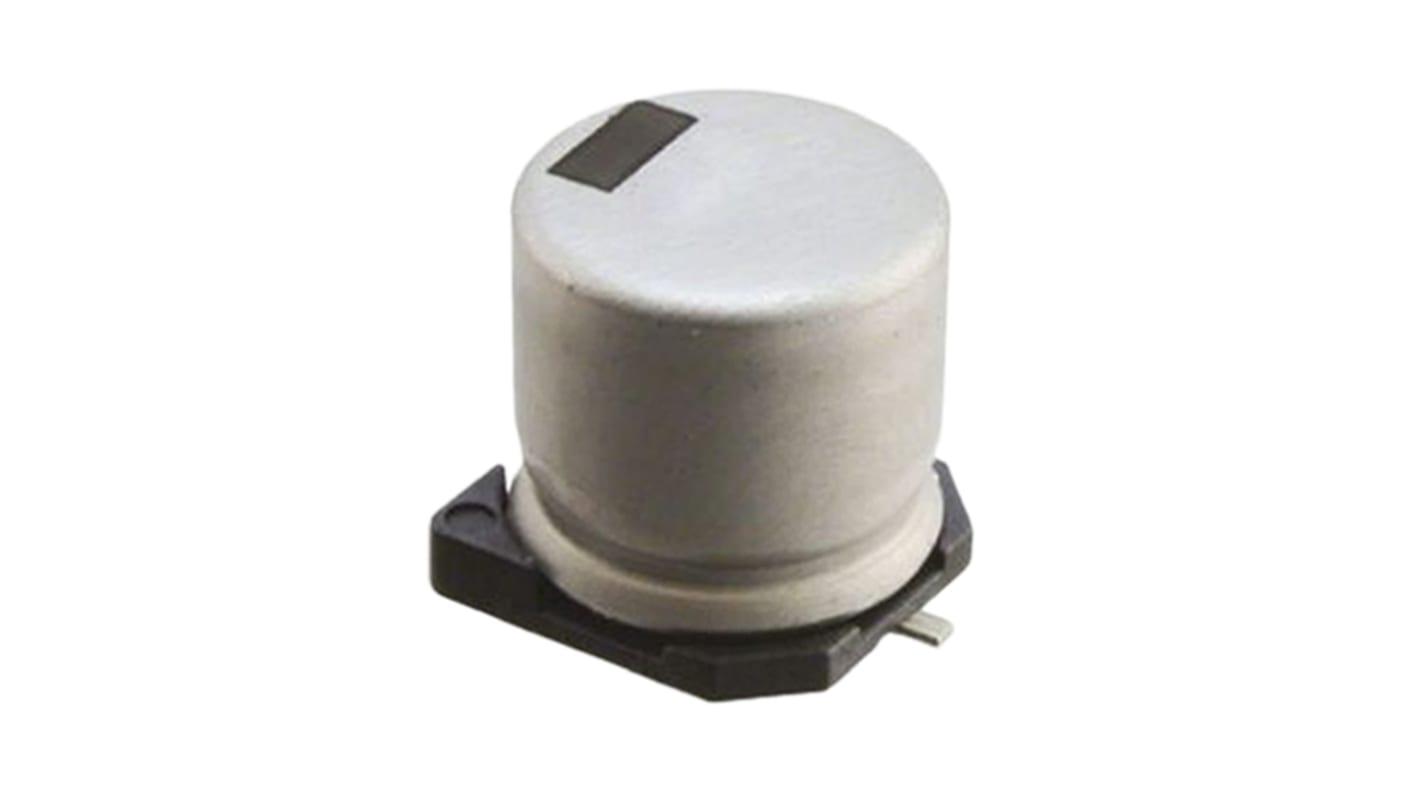

Vishay 33μF Electrolytic Capacitor 100V dc, Surface Mount - MAL214699903E3

View all Aluminium Capacitors
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
903-9647
Mfr. Part No.:
MAL214699903E3
Brand:
Vishay
Find similar products by selecting one or more attributes.
Select all

Brand

Vishay

Capacitance

33µF

Voltage

100V dc

Mounting Type

Surface Mount

Technology

Electrolytic

Dimensions

10 x 10 x 12mm

Height

12mm

Length

10mm

Depth

10mm

Minimum Operating Temperature

-55°C

Maximum Operating Temperature

+125°C

Lead Pitch

3.5mm

Lifetime

1500 to 6000h

Leakage Current

33 μA

Tolerance

±20%

Polarised

Polar

Series

146 CTI

Ripple Current

230mA

Dissipation Factor

0.12%

Vishay 146 CTI Series


Vishay 146 CTI series aluminium SMD (chip) capacitors feature high temperature and low impedance. They are charge and discharge proof, and the 4-pin and 6-pin versions are vibration proof. The AEC-Q200-qualified Vishay 146 CTI Capacitors are rated for automotive applications, as well as SMD technology where high temperature reflow soldering is used. Other applications include industrial, telecom, smoothing, filtering, and buffering.

Polarized aluminium electrolytic capacitors, non-solid electrolyte, self healing SMD-version with base plate, lead (Pb)-free reflow solderable
Charge and discharge proof, no peak current limitation
High temperature reflow soldering according to JEDEC J-STD-020
Vibration proof, 4-pin version and 6-pin version
AEC-Q200 qualified

The Vishay product is a aluminium electrolytic capacitors with ± 20 percent of tolerance. It is used for automotive application and has surface mounting type and is packed with case of radial and can - SMD.

Rated capacitance is 33 μF
Rated voltage is 100 V
Rated impedance is 930 mOhms
Operating temperature range -55°C to 125°C


SMT 125°C
