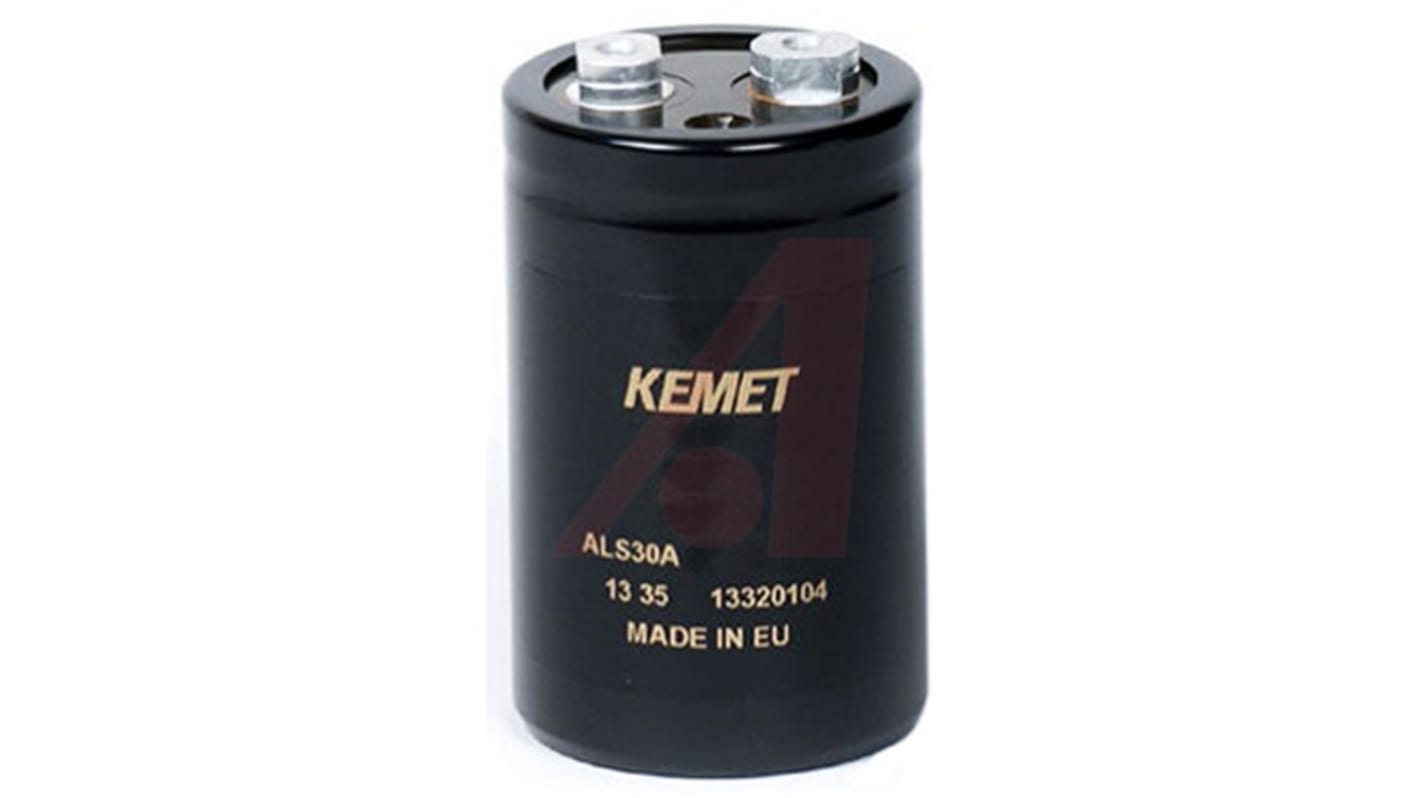

KEMET 10000μF Electrolytic Capacitor 400V dc, Screw Mount - ALS30A103NT400
- RS Stock No.:
- 869-6264
- Mfr. Part No.:
- ALS30A103NT400
- Brand:
- KEMET
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£100.71
(exc. VAT)
£120.85
(inc. VAT)
- RS Stock No.:
- 869-6264
- Mfr. Part No.:
- ALS30A103NT400
- Brand:
- KEMET
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | KEMET | |
Capacitance | 10000µF | |
Voltage | 400V dc | |
Mounting Type | Screw Mount | |
Technology | Aluminium Electrolytic | |
Dimensions | 77 x 220mm | |
Height | 220mm | |
Length | 220mm | |
Minimum Operating Temperature | -40°C | |
Diameter | 77mm | |
Maximum Operating Temperature | +85°C | |
Lead Pitch | 31.8mm | |
Lifetime | 20000 h @ +85 °C/400V dc/Ir, 40000 h @ +85 °C/400V dc | |
Equivalent Series Resistance | 19mΩ | |
Polarised | Polar | |
Leakage Current | 6 mA | |
Ripple Current | 31.5A | |
Tolerance | ±20% | |
Series | ALS30 | |
Select all | ||
---|---|---|
Brand KEMET | ||
Capacitance 10000µF | ||
Voltage 400V dc | ||
Mounting Type Screw Mount | ||
Technology Aluminium Electrolytic | ||
Dimensions 77 x 220mm | ||
Height 220mm | ||
Length 220mm | ||
Minimum Operating Temperature -40°C | ||
Diameter 77mm | ||
Maximum Operating Temperature +85°C | ||
Lead Pitch 31.8mm | ||
Lifetime 20000 h @ +85 °C/400V dc/Ir, 40000 h @ +85 °C/400V dc | ||
Equivalent Series Resistance 19mΩ | ||
Polarised Polar | ||
Leakage Current 6 mA | ||
Ripple Current 31.5A | ||
Tolerance ±20% | ||
Series ALS30 | ||
- COO (Country of Origin):
- PT
ALS30/31 Series
KEMET ALS30/31 series screw terminal capacitors cover a wide range of case sizes and voltage ratings featuring high ripple currents and long-life performance. Typical applications include smoothing, energy storage or pulse operation in telecommunication demanding power supplies, process control, AC motor control, traction, welding and measuring.
Features and Benefits:
Compact size
Long life expectancy up to 20000 h
High ripple current
Excellent surge voltage capability
Aluminium insert terminals with M5 threads
Long life expectancy up to 20000 h
High ripple current
Excellent surge voltage capability
Aluminium insert terminals with M5 threads
Product Application Information
These capacitors are suitable for industrial and commercial applications demanding high reliability and long-life expectancy. For example, frequency converters, uninterruptible power supplies and switch mode power supplies.
Note
Screws and washers are not supplied.
Standards
AEC-Q200
Clamp-fixing +85°C
Ideal for computer power supply applications or other applications that require long operational life
