Vishay 1300μF Electrolytic Capacitor 50V dc, Screw Mount - 36D132G050AA2A
- RS Stock No.:
- 855-5959
- Mfr. Part No.:
- 36D132G050AA2A
- Brand:
- Vishay
Discontinued product
- RS Stock No.:
- 855-5959
- Mfr. Part No.:
- 36D132G050AA2A
- Brand:
- Vishay
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details

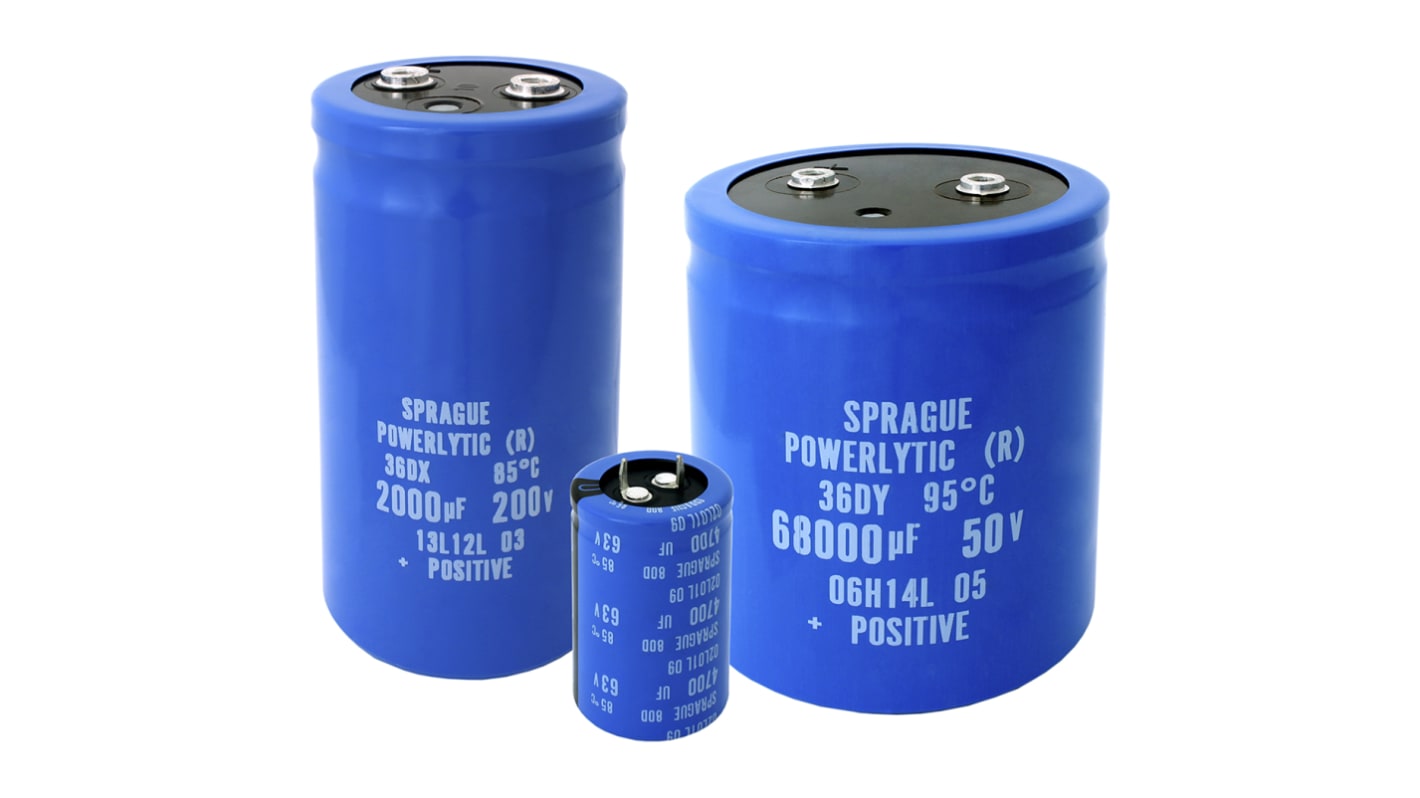

Vishay 36D Series
Vishay 36D series Powerlytic® Aluminium capacitors are a cylindrical insulated case with a long life design and low leakage current. The 36D series have screw terminal connections in a large can size that offers a wide range of capacitance values suitable for various applications.
Features and Benefits:
High ripple current
Low leakage current
Long shelf life
Screw Terminals
Low leakage current
Long shelf life
Screw Terminals
Applications:
Designed for applications requiring greatest possible capacitance in small physical case sizes.
Clamp-fixing +85°C
Ideal for computer power supply applications or other applications that require long operational life
Specifications
Attribute | Value |
|---|---|
| Capacitance | 1300µF |
| Voltage | 50V dc |
| Mounting Type | Screw Mount |
| Technology | Electrolytic |
| Dimensions | 35 x 54mm |
| Height | 54mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 35mm |
| Maximum Operating Temperature | +95°C |
| Lead Pitch | 12.7mm |
| Lifetime | 1000h |
| Series | 36D |
| Tolerance | -10 → +75% |
