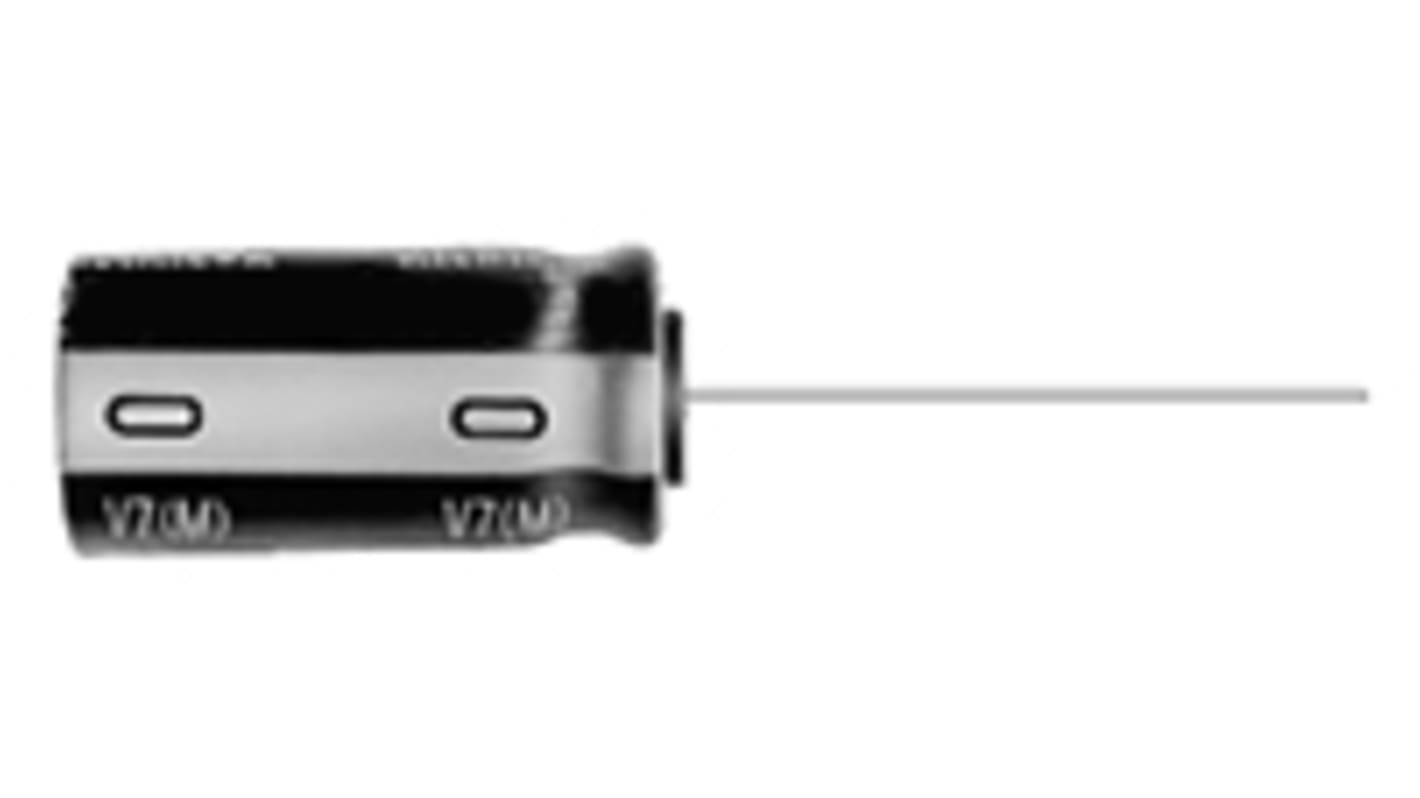

Nichicon 10μF Aluminium Electrolytic Capacitor 16V dc, Radial, Through Hole - UVZ1C100MDD
- RS Stock No.:
- 845-4635
- Mfr. Part No.:
- UVZ1C100MDD
- Brand:
- Nichicon
Discontinued
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (In a Box of 200)
£0.028
(exc. VAT)
£0.034
(inc. VAT)
- RS Stock No.:
- 845-4635
- Mfr. Part No.:
- UVZ1C100MDD
- Brand:
- Nichicon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nichicon | |
| Capacitance | 10µF | |
| Voltage | 16V dc | |
| Mounting Type | Radial, Through Hole | |
| Technology | Aluminium Electrolytic | |
| Dimensions | 5 (Dia.) x 11mm | |
| Height | 11mm | |
| Minimum Operating Temperature | -55°C | |
| Diameter | 5mm | |
| Maximum Operating Temperature | +105°C | |
| Lifetime | 1000h | |
| Lead Pitch | 2mm | |
| Ripple Current | 35mA | |
| Leakage Current | 4.8 μA | |
| Series | VZ | |
| Tolerance | ±20% | |
| Select all | ||
|---|---|---|
Brand Nichicon | ||
Capacitance 10µF | ||
Voltage 16V dc | ||
Mounting Type Radial, Through Hole | ||
Technology Aluminium Electrolytic | ||
Dimensions 5 (Dia.) x 11mm | ||
Height 11mm | ||
Minimum Operating Temperature -55°C | ||
Diameter 5mm | ||
Maximum Operating Temperature +105°C | ||
Lifetime 1000h | ||
Lead Pitch 2mm | ||
Ripple Current 35mA | ||
Leakage Current 4.8 μA | ||
Series VZ | ||
Tolerance ±20% | ||
Nichicon VZ Series General Purpose Electrolytic Capacitors
Nichicon VZ series aluminium electrolytic capacitors are miniature sized, low impedance, high reliability capacitors for switching power supplies. The VZ series is highly reliable with a lifetime rating of up to 1000 hours.
Features & Benefits:
High reliability
High temperature range
High ripple current
High temperature range
High ripple current
Lifetime rating of 1000 hours @ 105°C
