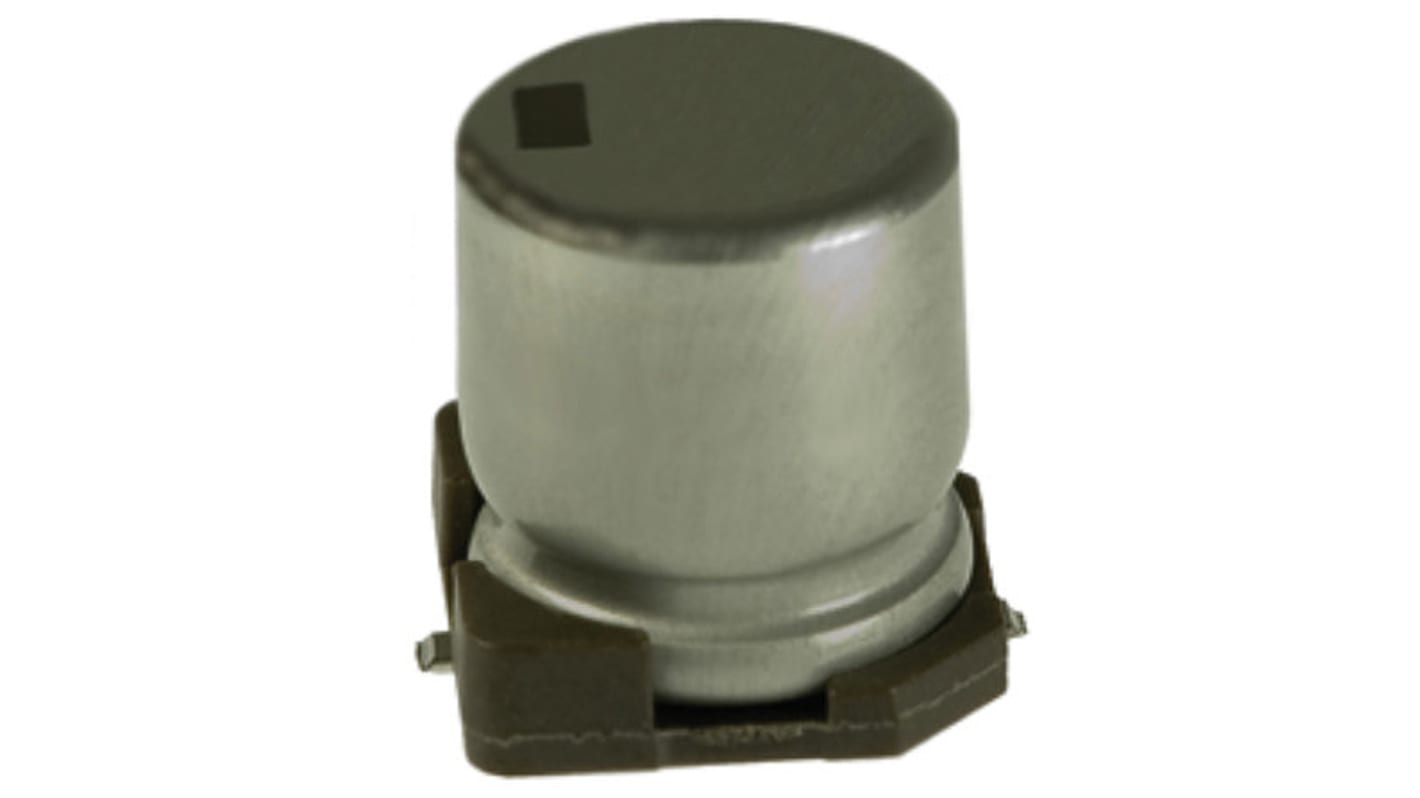

Nichicon 100μF Aluminium Electrolytic Capacitor 16V dc, Surface Mount - UWZ1C101MCL1GB

View all Aluminium Capacitors

Subtotal (1 pack of 25 units)*

£4.55

(exc. VAT)

£5.45

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 4,075 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
25 +£0.182£4.55

*price indicative

Packaging Options:
RS Stock No.:
844-0784
Mfr. Part No.:
UWZ1C101MCL1GB
Brand:
Nichicon
Find similar products by selecting one or more attributes.
Select all

Brand

Nichicon

Capacitance

100µF

Voltage

16V dc

Mounting Type

Surface Mount

Technology

Aluminium Electrolytic

Dimensions

6.3 (Dia.) x 5.4mm

Height

5.4mm

Minimum Operating Temperature

-55°C

Diameter

6.3mm

Maximum Operating Temperature

+105°C

Lead Pitch

2.2mm

Lifetime

1000h

Leakage Current

16 μA

Ripple Current

60mA

Polarised

Polar

Series

WZ

Tolerance

±20%

Aluminium Electrolytic Capacitor, WZ Series, 105°C


The WZ series from Nichicon are low impedance, chip type aluminium electrolytic capacitors. WZ chip capacitors can be used with automatic placement machines. Suitable for reflow soldering up to +260°C, their maximum operating temperature is +105°C. WZ aluminium electrolytic capacitors offer a range of capacitance values between 0.1 μF to 1500 μF, and voltage options between 6.3 V and 50 V.

Features & Benefits:


Chip type
High temperature reflow soldering up to +260°C
Anti-solvent feature
Can be used with carrier tape fed automatic mounting machines
Lead free
