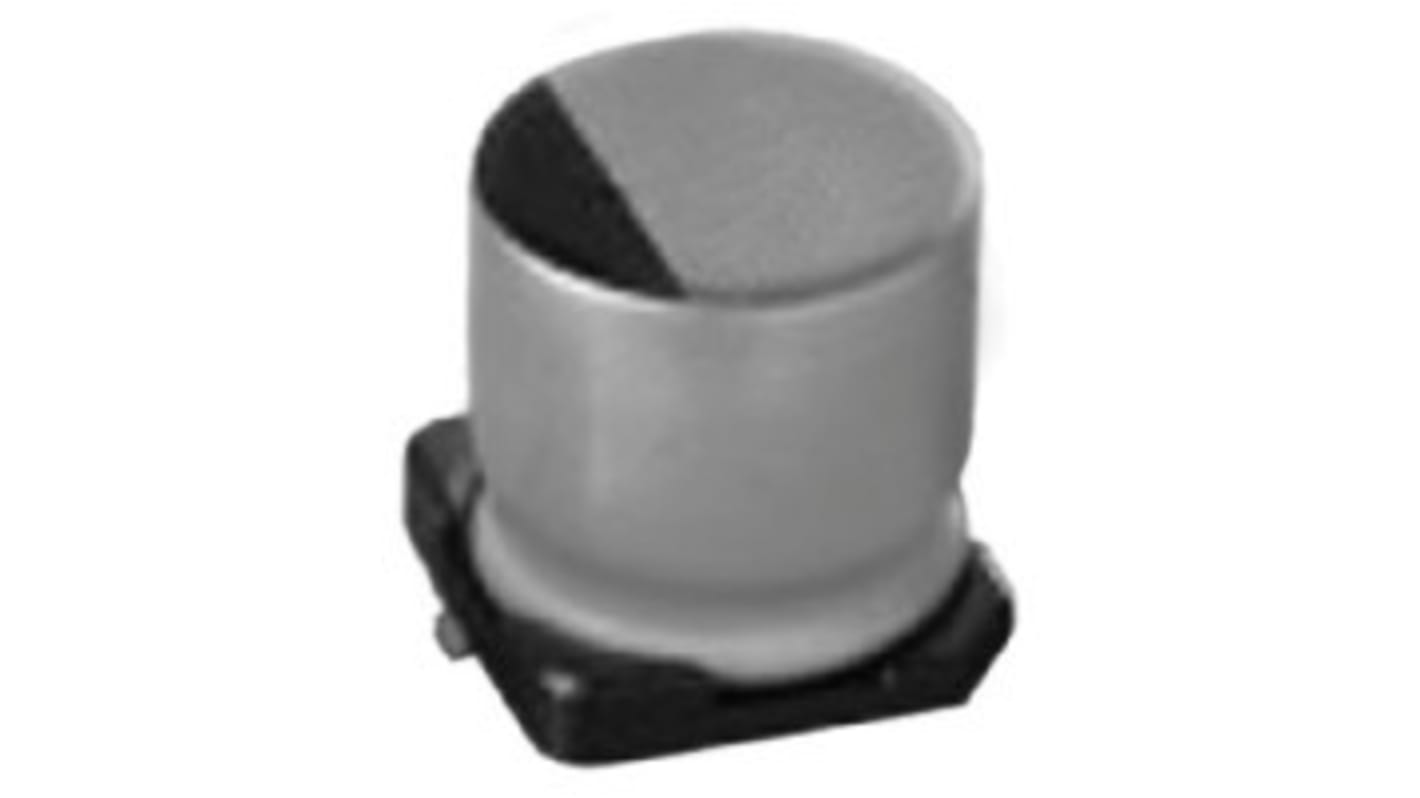

Nichicon 47μF Aluminium Electrolytic Capacitor 16V dc, Surface Mount - UCM1C470MCL1GS
- RS Stock No.:
- 843-2127P
- Mfr. Part No.:
- UCM1C470MCL1GS
- Brand:
- Nichicon
Bulk discount available
Subtotal 100 units (supplied on a continuous strip)*
£12.00
(exc. VAT)
£14.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 140 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 100 - 240 | £0.12 |
| 250 - 990 | £0.109 |
| 1000 - 1990 | £0.077 |
| 2000 + | £0.069 |
*price indicative
- RS Stock No.:
- 843-2127P
- Mfr. Part No.:
- UCM1C470MCL1GS
- Brand:
- Nichicon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nichicon | |
| Capacitance | 47µF | |
| Voltage | 16V dc | |
| Mounting Type | Surface Mount | |
| Technology | Aluminium Electrolytic | |
| Dimensions | 4 (Dia.) x 5.8mm | |
| Height | 5.8mm | |
| Minimum Operating Temperature | -55°C | |
| Diameter | 4mm | |
| Maximum Operating Temperature | +105°C | |
| Lifetime | 2000h | |
| Lead Pitch | 1mm | |
| Tolerance | ±20% | |
| Leakage Current | ≤0.01 CV (After 2 min) μA | |
| Polarised | Polar | |
| Ripple Current | 160mA | |
| Series | CM | |
Select all | ||
|---|---|---|
Brand Nichicon | ||
Capacitance 47µF | ||
Voltage 16V dc | ||
Mounting Type Surface Mount | ||
Technology Aluminium Electrolytic | ||
Dimensions 4 (Dia.) x 5.8mm | ||
Height 5.8mm | ||
Minimum Operating Temperature -55°C | ||
Diameter 4mm | ||
Maximum Operating Temperature +105°C | ||
Lifetime 2000h | ||
Lead Pitch 1mm | ||
Tolerance ±20% | ||
Leakage Current ≤0.01 CV (After 2 min) μA | ||
Polarised Polar | ||
Ripple Current 160mA | ||
Series CM | ||
Nichicon CM Series Low Impedance Capacitors
CM Aluminium Electrolytic Capacitor Chip type, low Impedance Series. Applications include power window switches and fuel pumps.
Features & Benefits:
Temperature range up to +105°C
Rated Voltage Range: 6.3 V to 50 V
Applicable to automatic mounting machine fed with carrier tape
Compliant to the RoHS directive (2011/65/EU)
