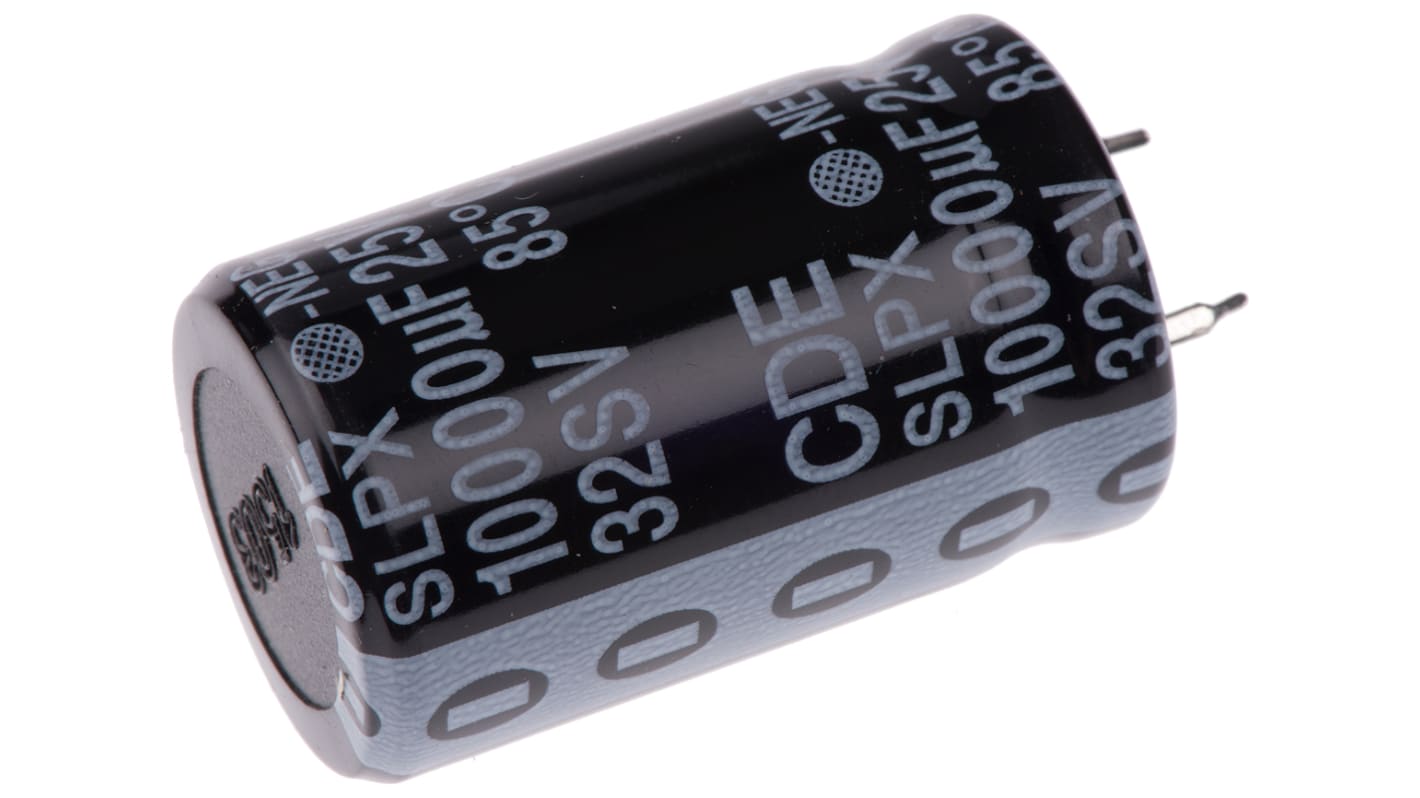

Cornell-Dubilier 10000μF Aluminium Electrolytic Capacitor 25V dc, Snap-In - SLPX103M025A5P3
- RS Stock No.:
- 744-1149
- Mfr. Part No.:
- SLPX103M025A5P3
- Brand:
- Cornell-Dubilier
Bulk discount available
Subtotal (1 unit)*
£2.16
(exc. VAT)
£2.59
(inc. VAT)
Stock information currently inaccessible
Units | Per unit |
|---|---|
| 1 - 9 | £2.16 |
| 10 - 49 | £1.75 |
| 50 - 99 | £1.66 |
| 100 + | £1.34 |
*price indicative
- RS Stock No.:
- 744-1149
- Mfr. Part No.:
- SLPX103M025A5P3
- Brand:
- Cornell-Dubilier
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Cornell-Dubilier | |
| Capacitance | 10000µF | |
| Voltage | 25V dc | |
| Mounting Type | Snap-In | |
| Technology | Aluminium Electrolytic | |
| Dimensions | 22 (Dia.) x 35mm | |
| Height | 35mm | |
| Minimum Operating Temperature | -40°C | |
| Diameter | 22mm | |
| Maximum Operating Temperature | +85°C | |
| Lifetime | 3000h | |
| Lead Pitch | 10mm | |
| Tolerance | ±20% | |
| Series | SLPX | |
| Equivalent Series Resistance | 45mΩ | |
| Ripple Current | 4.14A | |
| Leakage Current | <=3√CV μA @ 5 min | |
Select all | ||
|---|---|---|
Brand Cornell-Dubilier | ||
Capacitance 10000µF | ||
Voltage 25V dc | ||
Mounting Type Snap-In | ||
Technology Aluminium Electrolytic | ||
Dimensions 22 (Dia.) x 35mm | ||
Height 35mm | ||
Minimum Operating Temperature -40°C | ||
Diameter 22mm | ||
Maximum Operating Temperature +85°C | ||
Lifetime 3000h | ||
Lead Pitch 10mm | ||
Tolerance ±20% | ||
Series SLPX | ||
Equivalent Series Resistance 45mΩ | ||
Ripple Current 4.14A | ||
Leakage Current <=3√CV μA @ 5 min | ||
- COO (Country of Origin):
- CN
Cornell-Dubilier SLPX Series
Cornell-Dubilier SLPX series snap-In aluminium electrolytic capacitors are general purpose small cased capacitors that offer high ripple current and wide temperature range. The SLPX series is designed for DC filtering and power supply applications where long life and high ripple capability are needed.
Features and Benefits:
3000 h ripple load life at rated voltage
Small case size with high capacitance
Suitable for switching power supplies
10 mm lead spacing
High ripple current
Cost effective
22 mm to 35 mm diameter
3000 h ripple load life at rated voltage
Small case size with high capacitance
Suitable for switching power supplies
10 mm lead spacing
High ripple current
Cost effective
22 mm to 35 mm diameter
