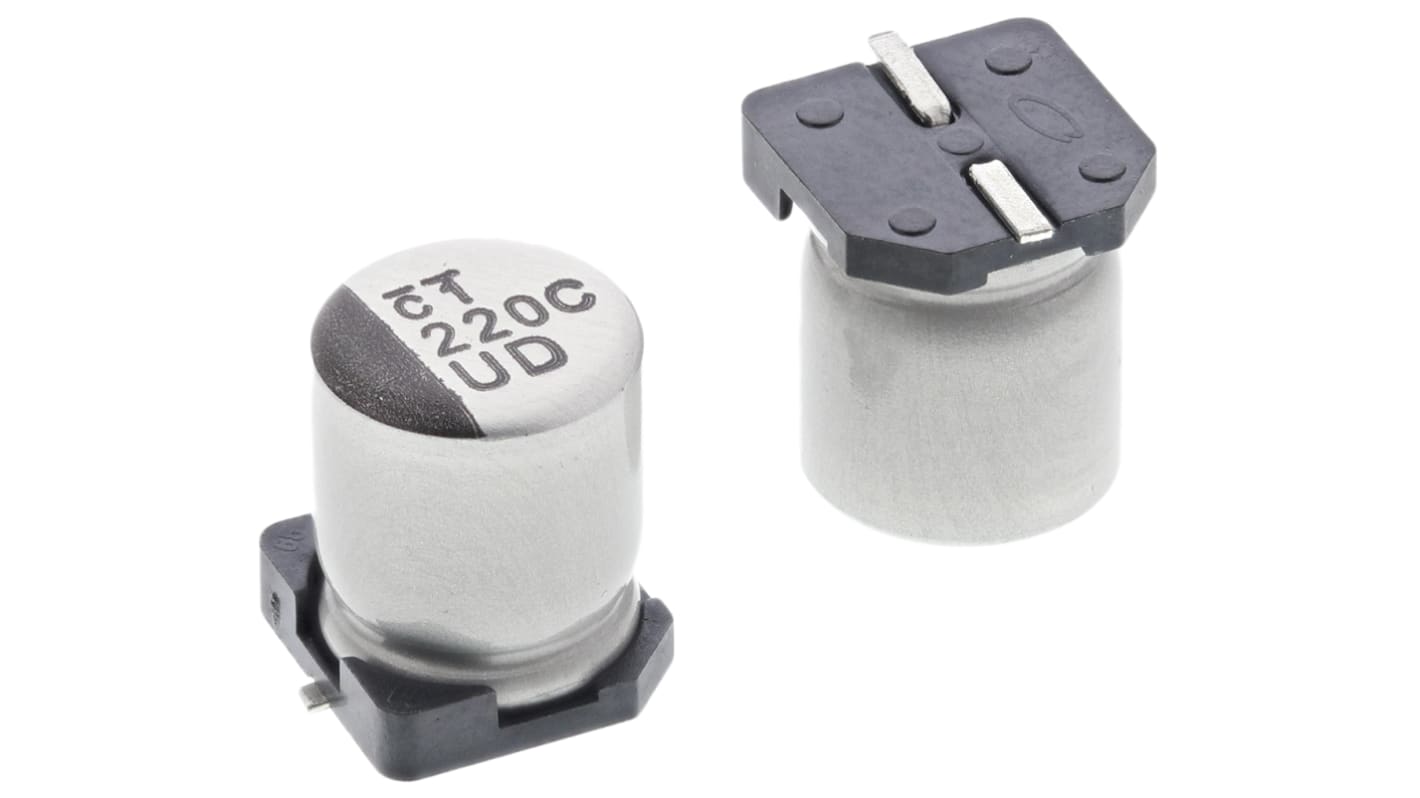

Nichicon 220μF Aluminium Electrolytic Capacitor 16V dc, Surface Mount - UUD1C221MCL1GS
- RS Stock No.:
- 739-3429
- Mfr. Part No.:
- UUD1C221MCL1GS
- Brand:
- Nichicon
Bulk discount available
Subtotal (1 pack of 10 units)*
£1.65
(exc. VAT)
£1.98
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 4,200 unit(s) shipping from 09 September 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 240 | £0.165 | £1.65 |
| 250 - 990 | £0.098 | £0.98 |
| 1000 - 1490 | £0.075 | £0.75 |
| 1500 + | £0.073 | £0.73 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (In a Pack of 10)
£0.299
(exc. VAT)
£0.359
(inc. VAT)
- RS Stock No.:
- 739-3429
- Mfr. Part No.:
- UUD1C221MCL1GS
- Brand:
- Nichicon
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nichicon | |
| Capacitance | 220µF | |
| Voltage | 16V dc | |
| Mounting Type | Surface Mount | |
| Technology | Aluminium Electrolytic | |
| Dimensions | 6.3 (Dia.) x 7.7mm | |
| Height | 7.7mm | |
| Minimum Operating Temperature | -55°C | |
| Diameter | 6.3mm | |
| Maximum Operating Temperature | +105°C | |
| Lifetime | 2000h | |
| Lead Pitch | 2.2mm | |
| Ripple Current | 280mA | |
| Polarised | Polar | |
| Tolerance | ±20% | |
| Series | UD | |
| Leakage Current | 35.2 μA | |
Select all | ||
|---|---|---|
Brand Nichicon | ||
Capacitance 220µF | ||
Voltage 16V dc | ||
Mounting Type Surface Mount | ||
Technology Aluminium Electrolytic | ||
Dimensions 6.3 (Dia.) x 7.7mm | ||
Height 7.7mm | ||
Minimum Operating Temperature -55°C | ||
Diameter 6.3mm | ||
Maximum Operating Temperature +105°C | ||
Lifetime 2000h | ||
Lead Pitch 2.2mm | ||
Ripple Current 280mA | ||
Polarised Polar | ||
Tolerance ±20% | ||
Series UD | ||
Leakage Current 35.2 μA | ||
