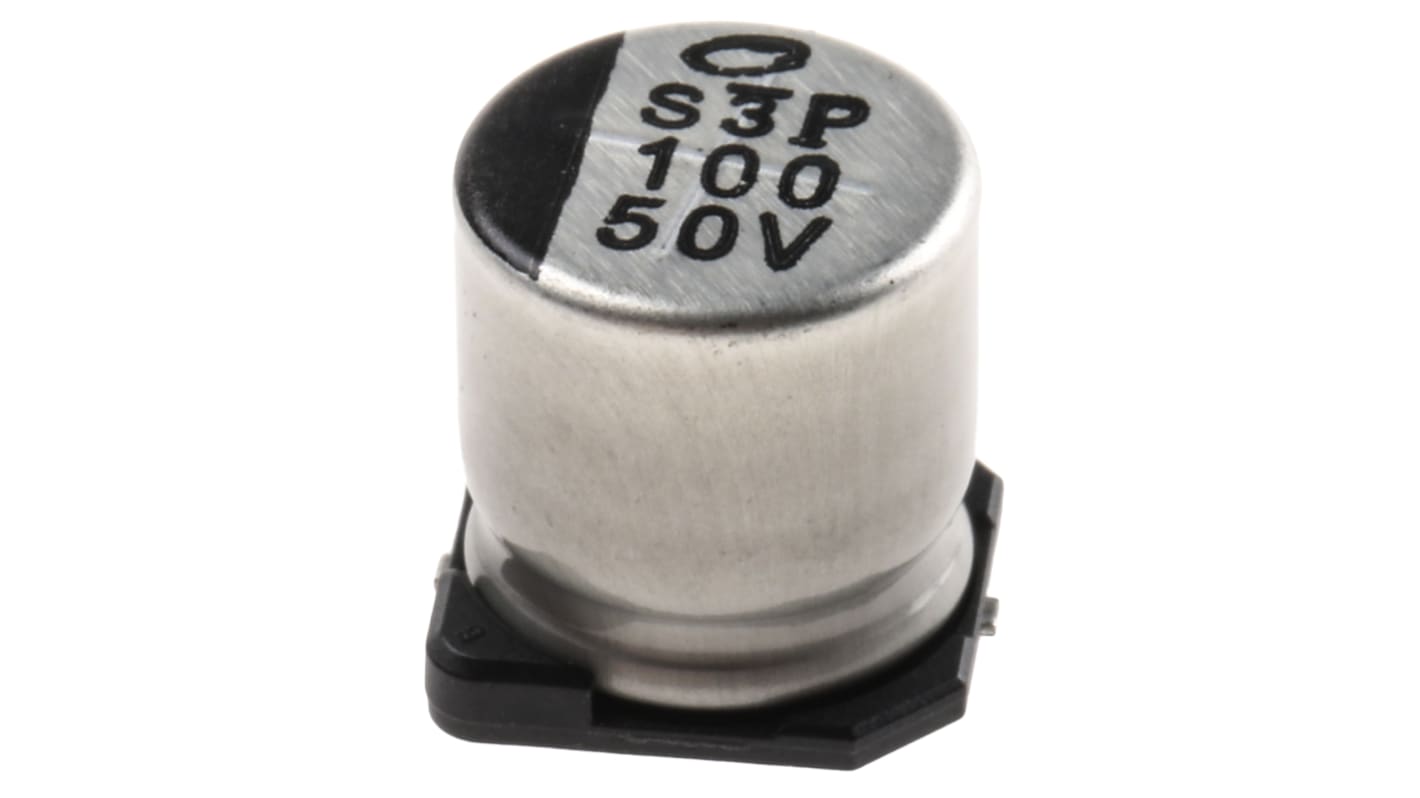

Nichicon 100μF Aluminium Electrolytic Capacitor 50V dc, Surface Mount - UUX1H101MNL1GS
- RS Stock No.:
- 739-3107P
- Mfr. Part No.:
- UUX1H101MNL1GS
- Brand:
- Nichicon
Bulk discount available
Subtotal 100 units (supplied on a continuous strip)*
£19.80
(exc. VAT)
£23.80
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 1,240 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 100 - 490 | £0.198 |
| 500 - 990 | £0.15 |
| 1000 + | £0.124 |
*price indicative
- RS Stock No.:
- 739-3107P
- Mfr. Part No.:
- UUX1H101MNL1GS
- Brand:
- Nichicon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nichicon | |
| Capacitance | 100µF | |
| Voltage | 50V dc | |
| Mounting Type | Surface Mount | |
| Technology | Aluminium Electrolytic | |
| Dimensions | 10 (Dia.) x 10mm | |
| Height | 10mm | |
| Minimum Operating Temperature | -55°C | |
| Diameter | 10mm | |
| Maximum Operating Temperature | +105°C | |
| Lead Pitch | 4.5mm | |
| Lifetime | 2000h | |
| Leakage Current | 150 μA | |
| Ripple Current | 310mA | |
| Polarised | Polar | |
| Tolerance | ±20% | |
| Series | UUX | |
Select all | ||
|---|---|---|
Brand Nichicon | ||
Capacitance 100µF | ||
Voltage 50V dc | ||
Mounting Type Surface Mount | ||
Technology Aluminium Electrolytic | ||
Dimensions 10 (Dia.) x 10mm | ||
Height 10mm | ||
Minimum Operating Temperature -55°C | ||
Diameter 10mm | ||
Maximum Operating Temperature +105°C | ||
Lead Pitch 4.5mm | ||
Lifetime 2000h | ||
Leakage Current 150 μA | ||
Ripple Current 310mA | ||
Polarised Polar | ||
Tolerance ±20% | ||
Series UUX | ||
