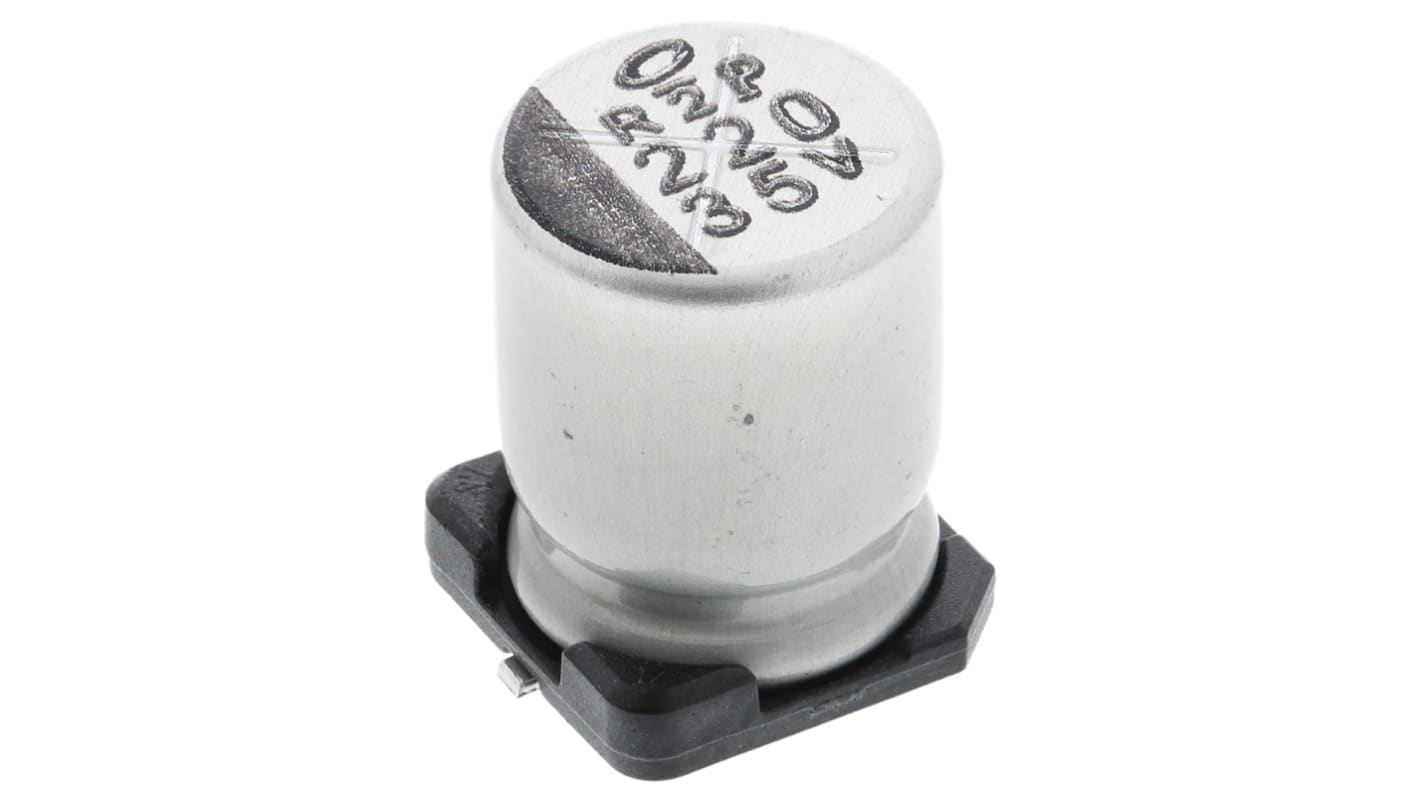

Nichicon 220μF Aluminium Electrolytic Capacitor 35V dc, Surface Mount - UWT1V221MNL1GS
- RS Stock No.:
- 739-2854
- Mfr. Part No.:
- UWT1V221MNL1GS
- Brand:
- Nichicon
Bulk discount available
Subtotal (1 pack of 10 units)*
£2.35
(exc. VAT)
£2.82
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 60 unit(s) ready to ship
- Plus 3,710 unit(s) shipping from 09 September 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 40 | £0.235 | £2.35 |
| 50 - 190 | £0.207 | £2.07 |
| 200 + | £0.16 | £1.60 |
*price indicative
- RS Stock No.:
- 739-2854
- Mfr. Part No.:
- UWT1V221MNL1GS
- Brand:
- Nichicon
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nichicon | |
| Capacitance | 220µF | |
| Voltage | 35V dc | |
| Mounting Type | Surface Mount | |
| Technology | Aluminium Electrolytic | |
| Dimensions | 8 (Dia.) x 10mm | |
| Height | 10mm | |
| Minimum Operating Temperature | -55°C | |
| Diameter | 8mm | |
| Maximum Operating Temperature | +105°C | |
| Lead Pitch | 3.1mm | |
| Lifetime | 1000h | |
| Polarised | Polar | |
| Leakage Current | 77 μA | |
| Ripple Current | 190mA | |
| Tolerance | ±20% | |
| Series | WT | |
Select all | ||
|---|---|---|
Brand Nichicon | ||
Capacitance 220µF | ||
Voltage 35V dc | ||
Mounting Type Surface Mount | ||
Technology Aluminium Electrolytic | ||
Dimensions 8 (Dia.) x 10mm | ||
Height 10mm | ||
Minimum Operating Temperature -55°C | ||
Diameter 8mm | ||
Maximum Operating Temperature +105°C | ||
Lead Pitch 3.1mm | ||
Lifetime 1000h | ||
Polarised Polar | ||
Leakage Current 77 μA | ||
Ripple Current 190mA | ||
Tolerance ±20% | ||
Series WT | ||
