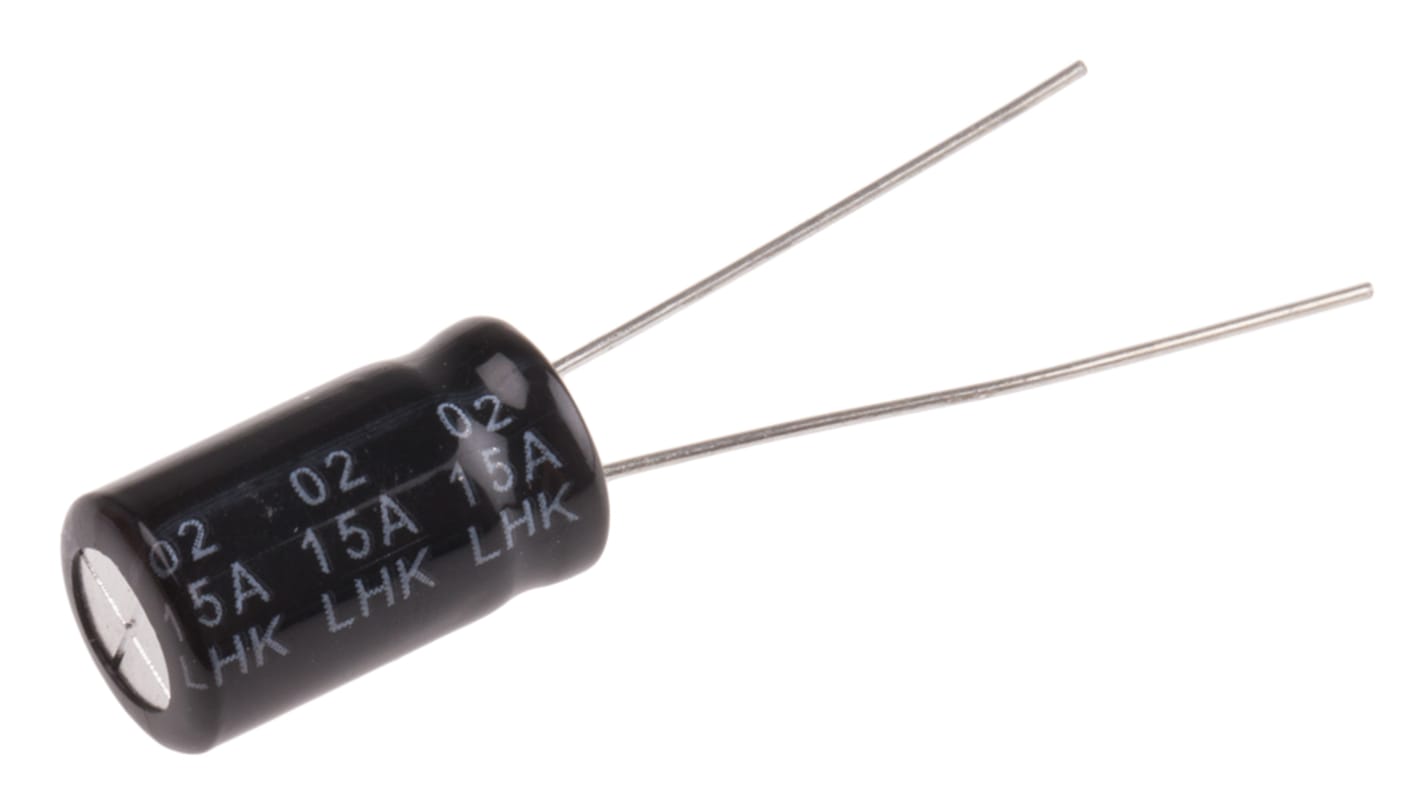

RS PRO 4.7μF Aluminium Electrolytic Capacitor 400V dc, Radial, Through Hole
- RS Stock No.:
- 723-9703
- Brand:
- RS PRO
2000 In stock - FREE next working day delivery available
240 available from Europe for delivery within 1 working day(s).
Added
Price Each (In a Pack of 10)
£0.171
(exc. VAT)
£0.205
(inc. VAT)
| Units | Per unit | Per Pack* |
| 10 - 90 | £0.171 | £1.71 |
| 100 - 490 | £0.145 | £1.45 |
| 500 - 990 | £0.131 | £1.31 |
| 1000 - 1990 | £0.112 | £1.12 |
| 2000 + | £0.09 | £0.90 |
| *price indicative | ||
- RS Stock No.:
- 723-9703
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
General Purpose Radial 400 to 450V
Safety vent construction design
Applications include communication equipment and switching power supply
Applications include communication equipment and switching power supply
Specifications
Attribute | Value |
|---|---|
| Capacitance | 4.7µF |
| Voltage | 400V dc |
| Mounting Type | Radial, Through Hole |
| Technology | Aluminium Electrolytic |
| Dimensions | 8 (Dia.) x 14mm |
| Height | 14mm |
| Length | 14mm |
| Minimum Operating Temperature | -25°C |
| Diameter | 8mm |
| Maximum Operating Temperature | +105°C |
| Lifetime | 2000h |
| Lead Pitch | 3.5mm |
| Leakage Current | <=0.03 CV or 3 μA @ 1 min |
| Polarised | Polar |
| Tolerance | ±20% |
| Series | RS |
| Ripple Current | 63mA |
| Dissipation Factor | 20% |
