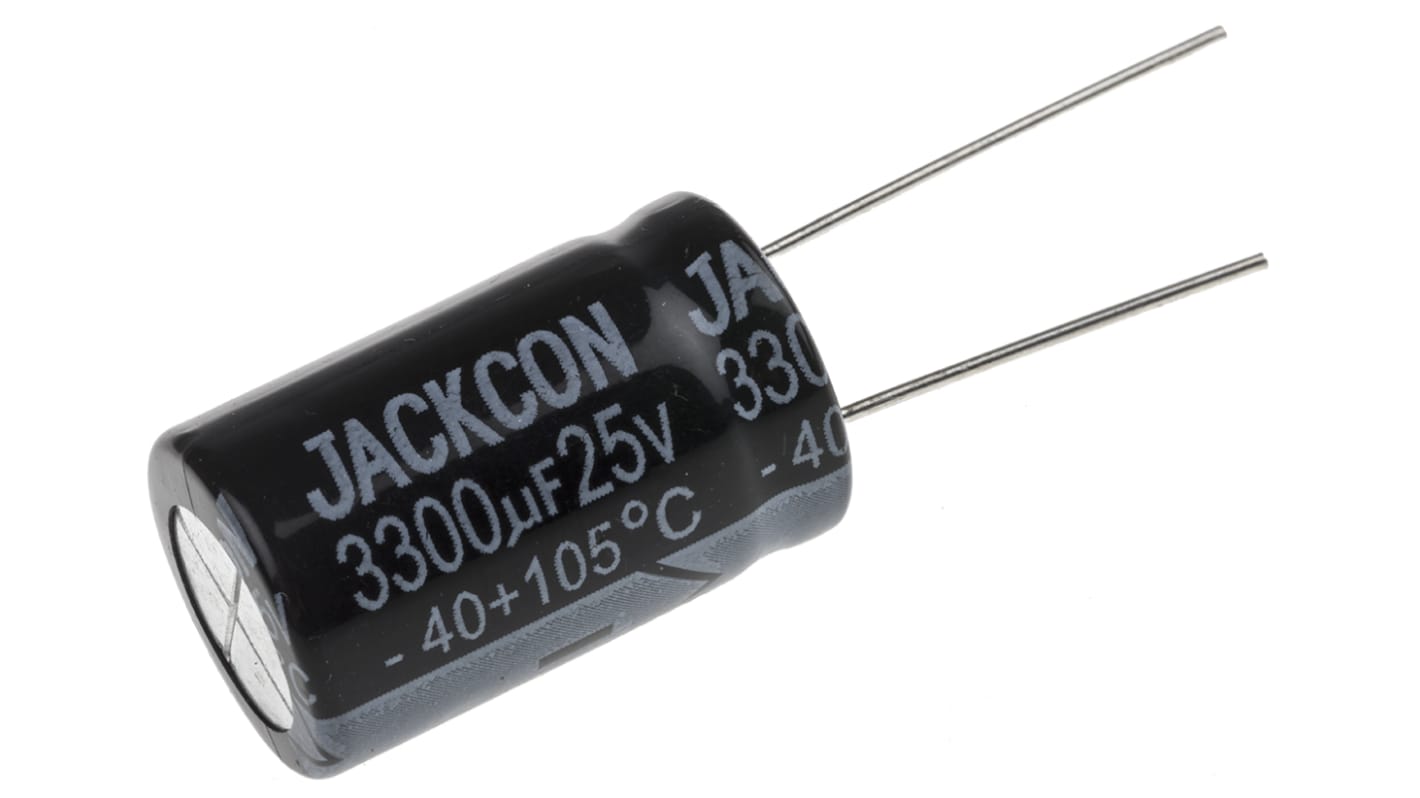

RS PRO 3300μF Aluminium Electrolytic Capacitor 25V dc, Radial, Through Hole
- RS Stock No.:
- 711-1182P
- Brand:
- RS PRO
Bulk discount available
Subtotal 50 units (supplied in a bag)*
£42.30
(exc. VAT)
£50.75
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 45 unit(s) ready to ship
- Plus 420 unit(s) shipping from 24 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 50 - 95 | £0.846 |
| 100 - 195 | £0.784 |
| 200 - 395 | £0.75 |
| 400 + | £0.676 |
*price indicative
- RS Stock No.:
- 711-1182P
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Capacitance | 3300µF | |
| Voltage | 25V dc | |
| Mounting Type | Radial, Through Hole | |
| Technology | Aluminium Electrolytic | |
| Dimensions | 16 (Dia.) x 26mm | |
| Height | 26mm | |
| Length | 26mm | |
| Minimum Operating Temperature | -40°C | |
| Diameter | 16mm | |
| Maximum Operating Temperature | 105°C | |
| Lifetime | 2000h | |
| Lead Pitch | 7.5mm | |
| Series | RS | |
| Tolerance | ±20% | |
| Leakage Current | <=0.01 CV or 3 μA @ 1 min | |
| Ripple Current | 1.48A | |
| Polarised | Polar | |
| Dissipation Factor | 14% | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Capacitance 3300µF | ||
Voltage 25V dc | ||
Mounting Type Radial, Through Hole | ||
Technology Aluminium Electrolytic | ||
Dimensions 16 (Dia.) x 26mm | ||
Height 26mm | ||
Length 26mm | ||
Minimum Operating Temperature -40°C | ||
Diameter 16mm | ||
Maximum Operating Temperature 105°C | ||
Lifetime 2000h | ||
Lead Pitch 7.5mm | ||
Series RS | ||
Tolerance ±20% | ||
Leakage Current <=0.01 CV or 3 μA @ 1 min | ||
Ripple Current 1.48A | ||
Polarised Polar | ||
Dissipation Factor 14% | ||
- COO (Country of Origin):
- TW
General Purpose Radial 25 to 50V
This RS brand LHK Series 105°C Axial Aluminium Capacitor features a safety vent construction design. Suitable for a variety of purposes, it is commonly used for communication equipment applications and for switching power supply.
