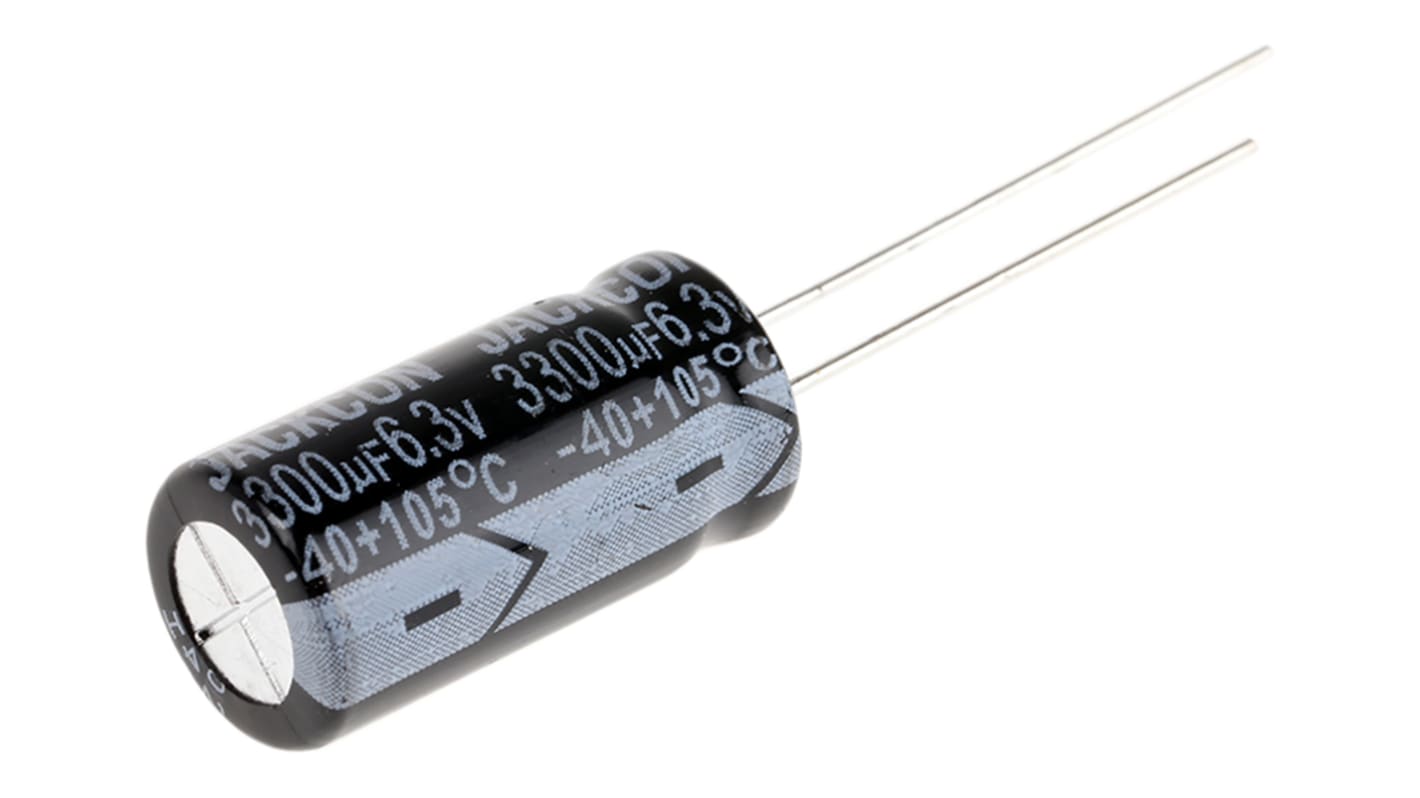

RS PRO 3300μF Aluminium Electrolytic Capacitor 6.3V dc, Radial, Through Hole
- RS Stock No.:
- 711-0753P
- Brand:
- RS PRO
Bulk discount available
Subtotal 50 units (supplied in a bag)*
£19.00
(exc. VAT)
£23.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 220 unit(s) shipping from 20 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 50 - 90 | £0.38 |
| 100 - 240 | £0.35 |
| 250 - 490 | £0.335 |
| 500 + | £0.301 |
*price indicative
- RS Stock No.:
- 711-0753P
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Capacitance | 3300µF | |
| Voltage | 6.3V dc | |
| Mounting Type | Radial, Through Hole | |
| Technology | Aluminium Electrolytic | |
| Dimensions | 10 (Dia.) x 20mm | |
| Height | 20mm | |
| Length | 20mm | |
| Minimum Operating Temperature | -40°C | |
| Diameter | 10mm | |
| Maximum Operating Temperature | 105°C | |
| Lifetime | 2000h | |
| Lead Pitch | 5mm | |
| Leakage Current | <=0.01 CV or 3 μA @ 1 min | |
| Tolerance | ±20% | |
| Ripple Current | 970mA | |
| Polarised | Polar | |
| Series | RS | |
| Dissipation Factor | 23% | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Capacitance 3300µF | ||
Voltage 6.3V dc | ||
Mounting Type Radial, Through Hole | ||
Technology Aluminium Electrolytic | ||
Dimensions 10 (Dia.) x 20mm | ||
Height 20mm | ||
Length 20mm | ||
Minimum Operating Temperature -40°C | ||
Diameter 10mm | ||
Maximum Operating Temperature 105°C | ||
Lifetime 2000h | ||
Lead Pitch 5mm | ||
Leakage Current <=0.01 CV or 3 μA @ 1 min | ||
Tolerance ±20% | ||
Ripple Current 970mA | ||
Polarised Polar | ||
Series RS | ||
Dissipation Factor 23% | ||
- COO (Country of Origin):
- TW
General Purpose Radial 6.3 to 16V
Axial RS Aluminium Capacitors, LHK Series 105°C
Safety vent construction design
Applications include communication equipment and switching power supply
Applications include communication equipment and switching power supply
