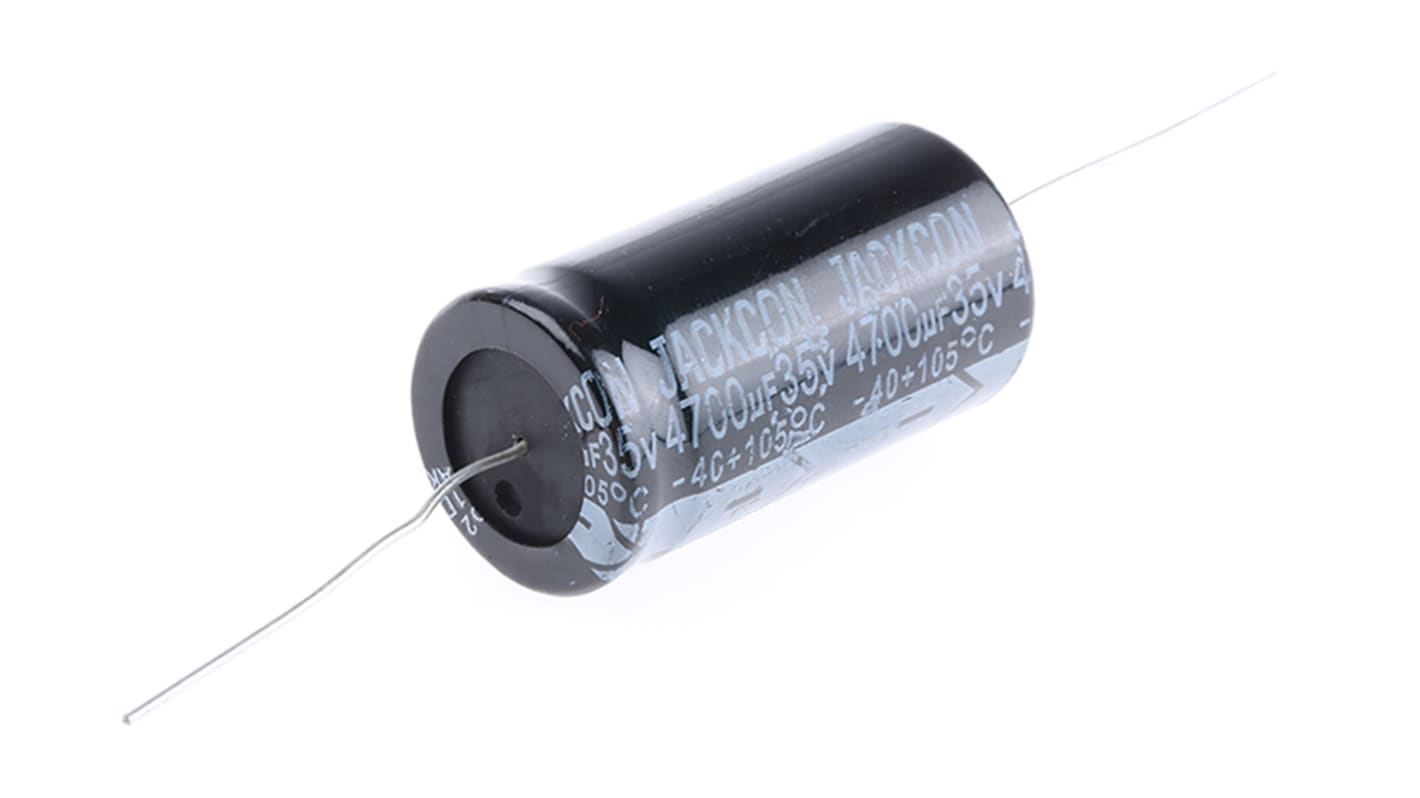

RS PRO 4700μF Aluminium Electrolytic Capacitor 35V dc, Axial, Through Hole
- RS Stock No.:
- 707-6717
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 pack of 2 units)*
£10.99
(exc. VAT)
£13.188
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 94 unit(s) ready to ship
- Plus 30 unit(s) ready to ship from another location
- Plus 1,000 unit(s) shipping from 03 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 2 - 18 | £5.495 | £10.99 |
| 20 - 48 | £5.11 | £10.22 |
| 50 - 98 | £4.72 | £9.44 |
| 100 - 198 | £4.505 | £9.01 |
| 200 + | £4.095 | £8.19 |
*price indicative
- RS Stock No.:
- 707-6717
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Capacitance | 4700µF | |
| Voltage | 35V dc | |
| Mounting Type | Axial, Through Hole | |
| Technology | Aluminium Electrolytic | |
| Dimensions | 22 (Dia.) x 42mm | |
| Height | 42mm | |
| Length | 42mm | |
| Minimum Operating Temperature | -40°C | |
| Diameter | 22mm | |
| Maximum Operating Temperature | 105°C | |
| Lifetime | 1000h | |
| Ripple Current | 2.1A | |
| Tolerance | ±20% | |
| Series | RS | |
| Polarised | Polar | |
| Leakage Current | <=0.02 CV or 3 μA @ 5 min | |
| Dissipation Factor | 12% | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Capacitance 4700µF | ||
Voltage 35V dc | ||
Mounting Type Axial, Through Hole | ||
Technology Aluminium Electrolytic | ||
Dimensions 22 (Dia.) x 42mm | ||
Height 42mm | ||
Length 42mm | ||
Minimum Operating Temperature -40°C | ||
Diameter 22mm | ||
Maximum Operating Temperature 105°C | ||
Lifetime 1000h | ||
Ripple Current 2.1A | ||
Tolerance ±20% | ||
Series RS | ||
Polarised Polar | ||
Leakage Current <=0.02 CV or 3 μA @ 5 min | ||
Dissipation Factor 12% | ||
- COO (Country of Origin):
- TW
RS Aluminium Axial Capacitors
General Purpose Axial RS Aluminium Capacitors, LAK Series 105°C
Safety vent construction design
Applications include communication equipment and switching power supply
Applications include communication equipment and switching power supply
