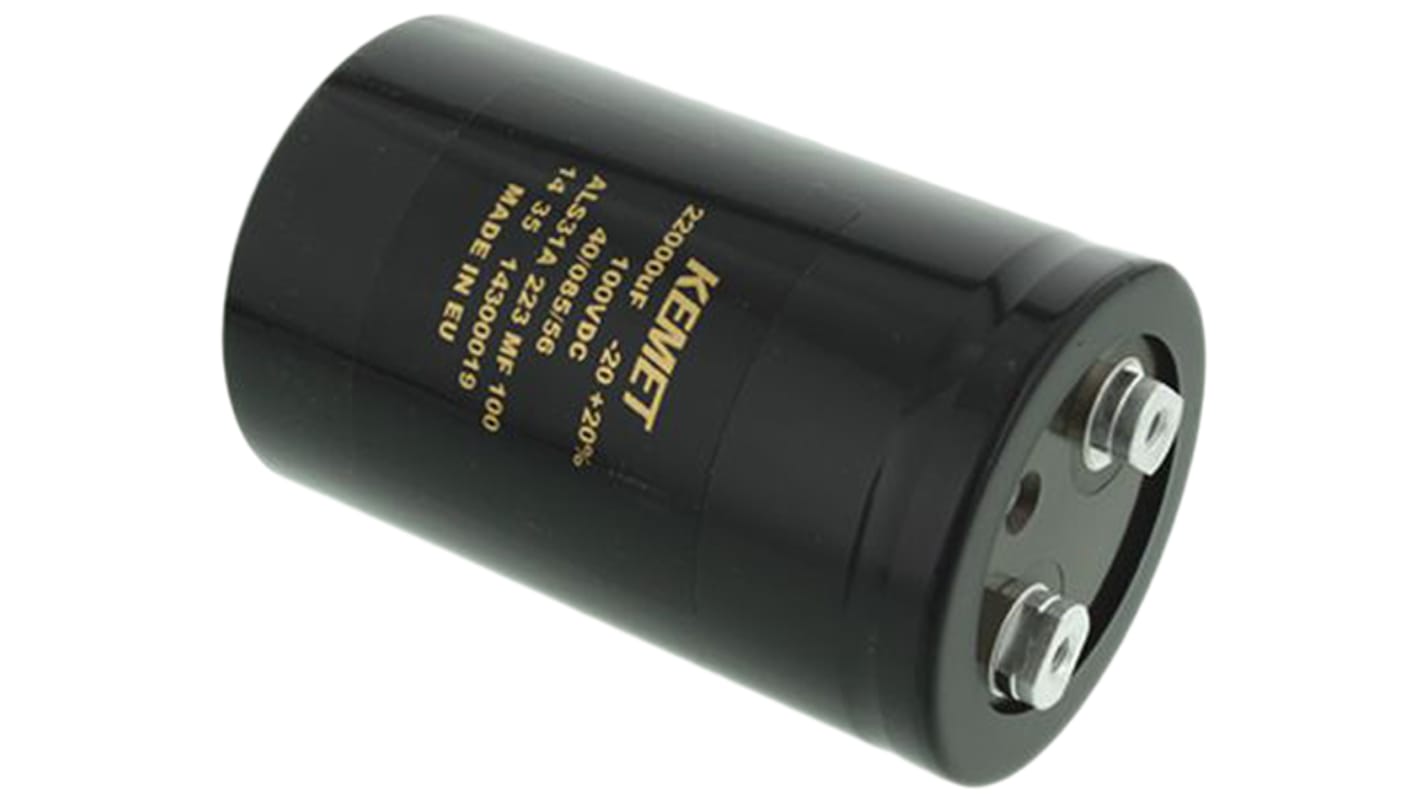

KEMET 22000μF Aluminium Electrolytic Capacitor 100V dc, Screw Terminal - ALS31A223MF100
- RS Stock No.:
- 381-9661
- Mfr. Part No.:
- ALS31A223MF100
- Brand:
- KEMET
Bulk discount available
Subtotal (1 unit)*
£42.68
(exc. VAT)
£51.22
(inc. VAT)
Stock information currently inaccessible
Units | Per unit |
|---|---|
| 1 - 4 | £42.68 |
| 5 - 9 | £40.12 |
| 10 - 24 | £37.56 |
| 25 + | £35.00 |
*price indicative
- RS Stock No.:
- 381-9661
- Mfr. Part No.:
- ALS31A223MF100
- Brand:
- KEMET
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KEMET | |
| Capacitance | 22000µF | |
| Voltage | 100V dc | |
| Mounting Type | Screw Terminal | |
| Technology | Aluminium Electrolytic | |
| Dimensions | 66 (Dia.) x 105mm | |
| Height | 105mm | |
| Length | 105mm | |
| Minimum Operating Temperature | -40°C | |
| Diameter | 66mm | |
| Maximum Operating Temperature | +85°C | |
| Lifetime | 19000 h @ +85 °C/100V dc/Ir, 38000 h @ +85 °C/100V dc | |
| Equivalent Series Resistance | 13mΩ | |
| Series | ALS31 | |
| Leakage Current | 6 mA | |
| Ripple Current | 18.4A | |
| Polarised | Polar | |
| Tolerance | ±20% | |
Select all | ||
|---|---|---|
Brand KEMET | ||
Capacitance 22000µF | ||
Voltage 100V dc | ||
Mounting Type Screw Terminal | ||
Technology Aluminium Electrolytic | ||
Dimensions 66 (Dia.) x 105mm | ||
Height 105mm | ||
Length 105mm | ||
Minimum Operating Temperature -40°C | ||
Diameter 66mm | ||
Maximum Operating Temperature +85°C | ||
Lifetime 19000 h @ +85 °C/100V dc/Ir, 38000 h @ +85 °C/100V dc | ||
Equivalent Series Resistance 13mΩ | ||
Series ALS31 | ||
Leakage Current 6 mA | ||
Ripple Current 18.4A | ||
Polarised Polar | ||
Tolerance ±20% | ||
ALS31 Series
The ALS31 series of aluminium electrolytic capacitors from KEMET provide a long life, compact solution. Offering various voltage options and case sizes, these aluminium electrolytic capacitors are suited to industrial and commercial applications requiring long life expectancy and high reliability.
Features
Up to 20000 h life span at +85°C
High ripple current
High reliability
Excellent surge voltage capability
High CV volume combined with high ripple current handling capability
High ripple current
High reliability
Excellent surge voltage capability
High CV volume combined with high ripple current handling capability
Product Application Information
Suitable applications for these aluminium electrolytic capacitors include smoothing, energy storage and pulse operation in telecommunication demanding power supplies. These aluminium capacitors are ideal for AC motor control, process control, welding, traction and measuring.
Note
Terminal screws and fixing nut are not supplied
Standards
AEC-Q200
