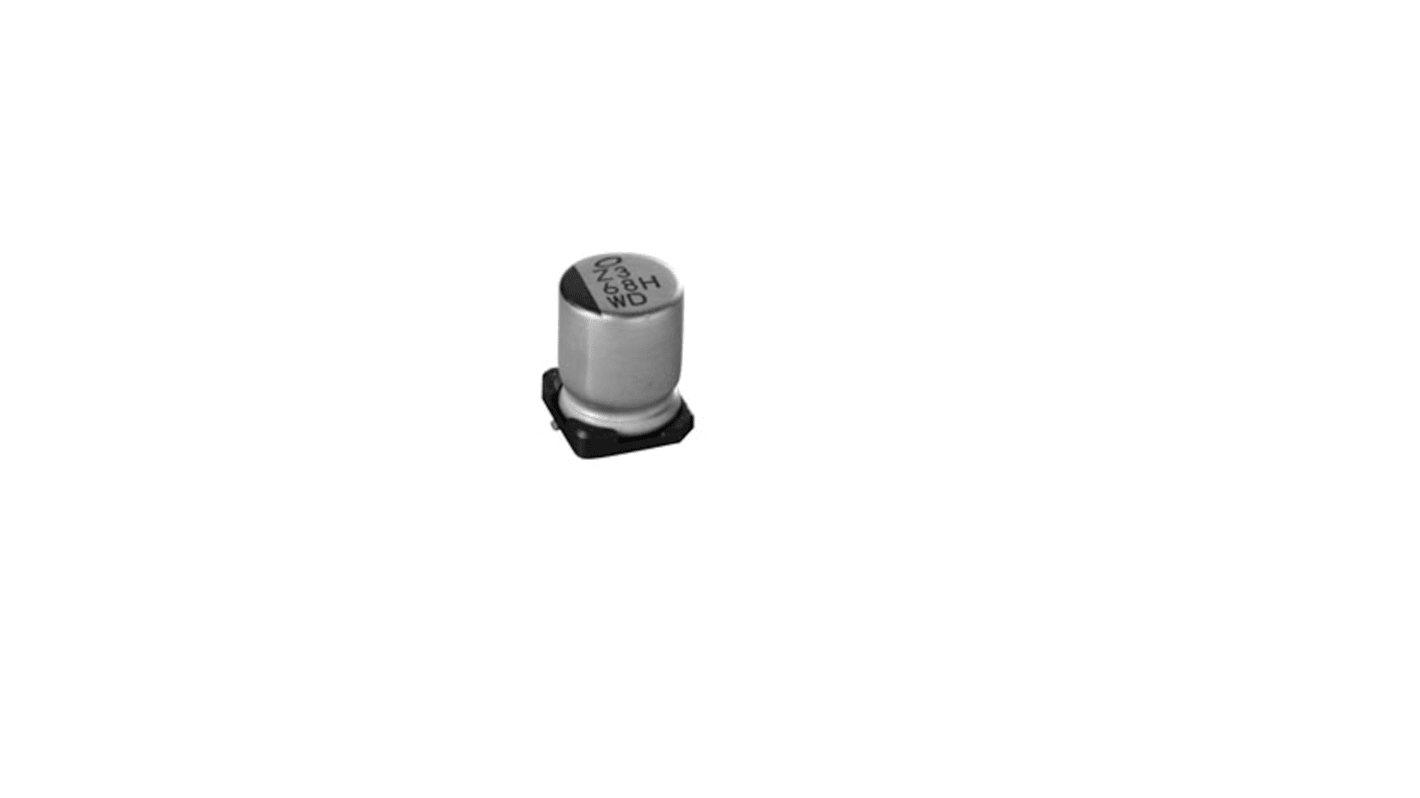

Nichicon 22μF Aluminium Electrolytic Capacitor 35V dc, Surface Mount - UWD1V220MCL1GS
- RS Stock No.:
- 243-7343
- Mfr. Part No.:
- UWD1V220MCL1GS
- Brand:
- Nichicon
Subtotal (1 reel of 1000 units)*
£82.00
(exc. VAT)
£98.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 1000 + | £0.082 | £82.00 |
*price indicative
- RS Stock No.:
- 243-7343
- Mfr. Part No.:
- UWD1V220MCL1GS
- Brand:
- Nichicon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nichicon | |
| Capacitance | 22µF | |
| Voltage | 35V dc | |
| Mounting Type | Surface Mount | |
| Technology | Aluminium Electrolytic | |
| Dimensions | 5 x 5.8mm | |
Select all | ||
|---|---|---|
Brand Nichicon | ||
Capacitance 22µF | ||
Voltage 35V dc | ||
Mounting Type Surface Mount | ||
Technology Aluminium Electrolytic | ||
Dimensions 5 x 5.8mm | ||
The Nichicon's UWD series is chip type aluminium capacitor have low impedance, works at high temperature of 260°C and suitable reflow condition.
Corresponding with 260°C peak reflow soldering
Recomended reflow condition : 260°C peak 5 sec. 230°C over 60 sec. 2 times (φ10 x 10 : 1 time)
Chip type, low impedance temperature range up to +105°C
Designed for surface mounting on high density PC board
Ap
Recomended reflow condition : 260°C peak 5 sec. 230°C over 60 sec. 2 times (φ10 x 10 : 1 time)
Chip type, low impedance temperature range up to +105°C
Designed for surface mounting on high density PC board
Ap
