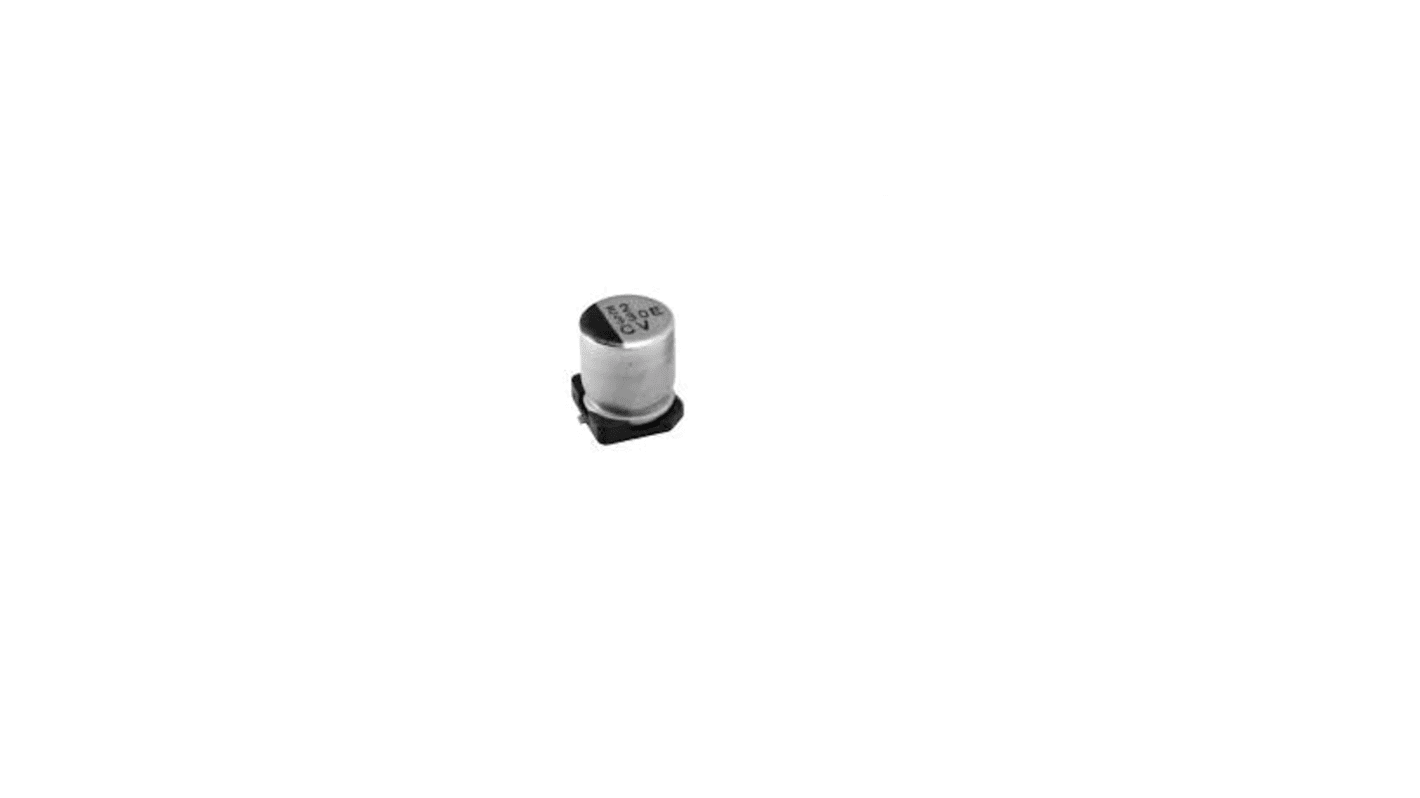

Nichicon 47μF Aluminium Electrolytic Capacitor 35V dc, Surface Mount - UCZ1V470MCL6GS
- RS Stock No.:
- 243-7286
- Mfr. Part No.:
- UCZ1V470MCL6GS
- Brand:
- Nichicon
Bulk discount available
Subtotal (1 tape of 10 units)*
£3.70
(exc. VAT)
£4.40
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3,240 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 10 - 90 | £0.37 | £3.70 |
| 100 - 390 | £0.327 | £3.27 |
| 400 + | £0.282 | £2.82 |
*price indicative
- RS Stock No.:
- 243-7286
- Mfr. Part No.:
- UCZ1V470MCL6GS
- Brand:
- Nichicon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nichicon | |
| Capacitance | 47µF | |
| Voltage | 35V dc | |
| Mounting Type | Surface Mount | |
| Technology | Aluminium Electrolytic | |
| Dimensions | 6.3 x 7.7mm | |
Select all | ||
|---|---|---|
Brand Nichicon | ||
Capacitance 47µF | ||
Voltage 35V dc | ||
Mounting Type Surface Mount | ||
Technology Aluminium Electrolytic | ||
Dimensions 6.3 x 7.7mm | ||
The Nichicon's UCZ series is chip type aluminium capacitor have high reliability, ESR specification and works at low as well as high temperature.
Chip type, high temperature range, for +125°C use
Added ESR specification after the test at -40°C
Applicable to automatic mounting machine fed with carrier tape
Compliant to the RoHS directive (2011/65/EU,(EU)2015/863)
AEC-Q200 compliant
Added ESR specification after the test at -40°C
Applicable to automatic mounting machine fed with carrier tape
Compliant to the RoHS directive (2011/65/EU,(EU)2015/863)
AEC-Q200 compliant
