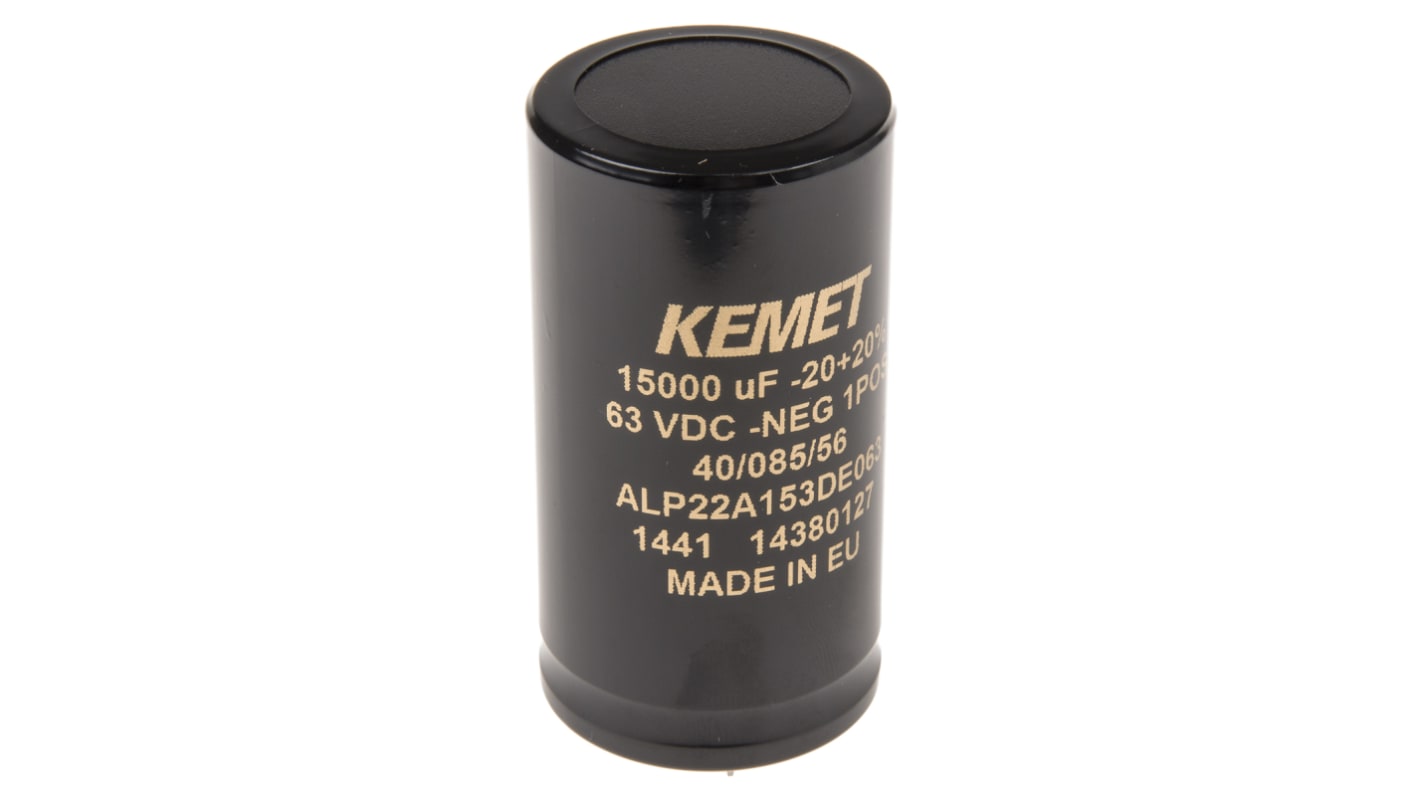

KEMET 15000μF Electrolytic Capacitor 63V dc, Through Hole - ALP22A153DE063
- RS Stock No.:
- 227-1204
- Mfr. Part No.:
- ALP22A153DE063
- Brand:
- KEMET
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 227-1204
- Mfr. Part No.:
- ALP22A153DE063
- Brand:
- KEMET
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KEMET | |
| Capacitance | 15000µF | |
| Voltage | 63V dc | |
| Mounting Type | Through Hole | |
| Technology | Electrolytic | |
| Dimensions | 40 x 75mm | |
| Length | 75mm | |
| Minimum Operating Temperature | -40°C | |
| Diameter | 40mm | |
| Maximum Operating Temperature | +85°C | |
| Lifetime | 26000 h @ +85 °C/63V dc/Ir | |
| Ripple Current | 4.97 A @ 100Hz | |
| Tolerance | -10 → +30% | |
| Leakage Current | 5.67 mA | |
| Equivalent Series Resistance | 27 mΩ @ 100 kHz | |
| Polarised | Polar | |
| Series | ALP22 | |
Select all | ||
|---|---|---|
Brand KEMET | ||
Capacitance 15000µF | ||
Voltage 63V dc | ||
Mounting Type Through Hole | ||
Technology Electrolytic | ||
Dimensions 40 x 75mm | ||
Length 75mm | ||
Minimum Operating Temperature -40°C | ||
Diameter 40mm | ||
Maximum Operating Temperature +85°C | ||
Lifetime 26000 h @ +85 °C/63V dc/Ir | ||
Ripple Current 4.97 A @ 100Hz | ||
Tolerance -10 → +30% | ||
Leakage Current 5.67 mA | ||
Equivalent Series Resistance 27 mΩ @ 100 kHz | ||
Polarised Polar | ||
Series ALP22 | ||
ALP22 Series
Long life low ESR aluminium electrolytic capacitors incorporating a safety vent and insulating sleeve.
Additional PCB pins are intended for mechanical connection only. It is recommended that they be soldered to the printed circuit board on isolated pads
Additional PCB pins are intended for mechanical connection only. It is recommended that they be soldered to the printed circuit board on isolated pads
