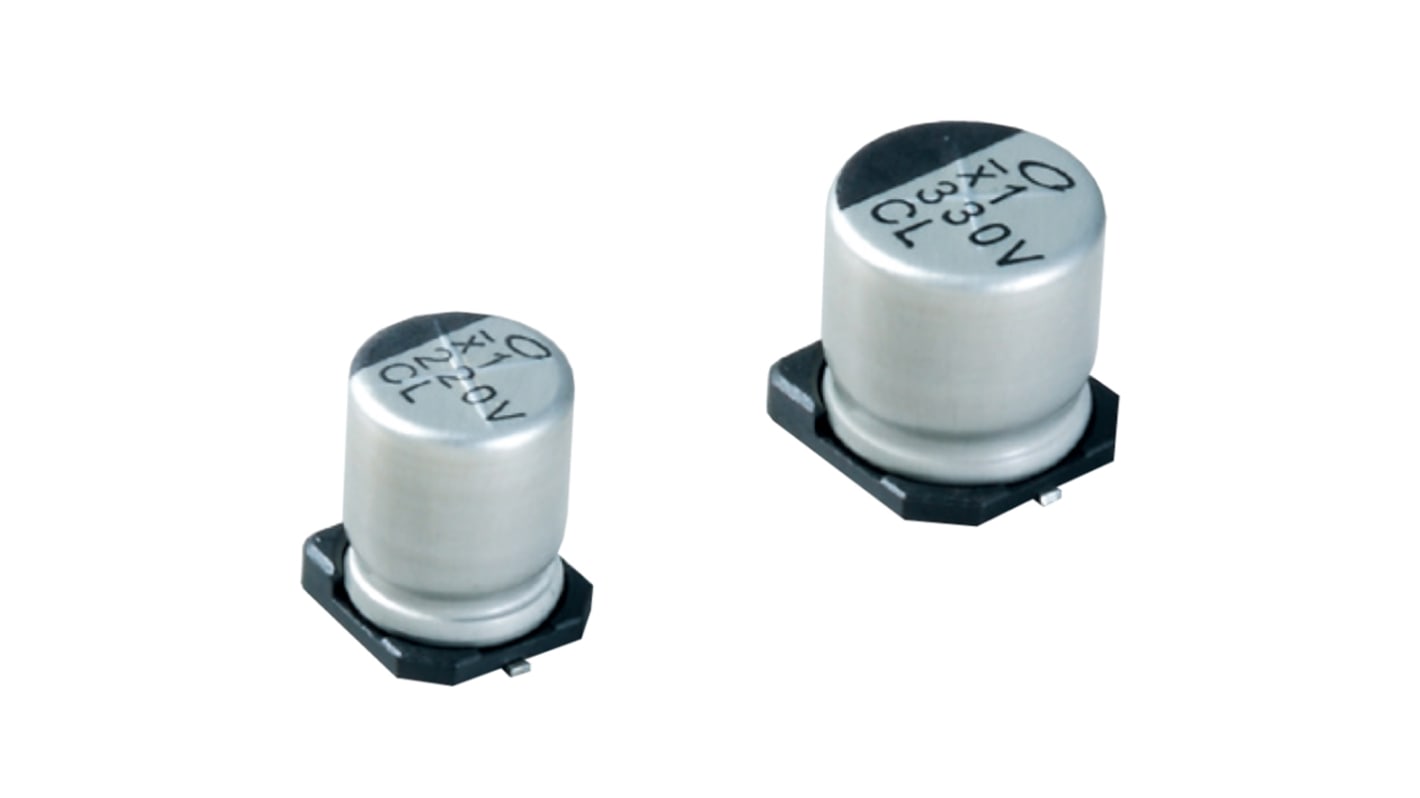

Nichicon 1000μF Aluminium Electrolytic Capacitor 16V dc, Surface Mount - UCL1C102MNL1GS
- RS Stock No.:
- 187-2457
- Mfr. Part No.:
- UCL1C102MNL1GS
- Brand:
- Nichicon
1840 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 10)
£0.617
(exc. VAT)
£0.74
(inc. VAT)
| Units | Per unit | Per Pack* |
| 10 - 90 | £0.617 | £6.17 |
| 100 - 190 | £0.495 | £4.95 |
| 200 + | £0.37 | £3.70 |
| *price indicative | ||
- RS Stock No.:
- 187-2457
- Mfr. Part No.:
- UCL1C102MNL1GS
- Brand:
- Nichicon
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
Chip type, low impedance temperature range up to +105°C
Applicable to automatic mounting machine fed with carrier tape
Applicable to automatic mounting machine fed with carrier tape
Specifications
Attribute | Value |
|---|---|
| Capacitance | 1000µF |
| Voltage | 16V dc |
| Mounting Type | Surface Mount |
| Technology | Aluminium Electrolytic |
| Dimensions | 10.3 x 10.3 x 13.5mm |
| Height | 13.5mm |
| Length | 10.3mm |
| Depth | 10.3mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 10mm |
| Maximum Operating Temperature | +105°C |
| Lead Pitch | 4.5mm |
| Lifetime | 2000h |
| Leakage Current | 3 μA |
| Polarised | Polar |
| Tolerance | ±20% |
| Series | CL |
| Ripple Current | 1.19A |
| Dissipation Factor | 0.16% |
