KEMET 600μF Polymer Capacitor 900V dc, Screw Mount - C44UOGQ6600F8SK

View all Aluminium Capacitors

Subtotal (1 bag of 5 units)*

£554.55

(exc. VAT)

£665.45

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 10 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Bag*
5 +£110.91£554.55

*price indicative

RS Stock No.:
173-4052
Mfr. Part No.:
C44UOGQ6600F8SK
Brand:
KEMET
Find similar products by selecting one or more attributes.
Select all

Brand

KEMET

Capacitance

600µF

Voltage

900V dc

Mounting Type

Screw Mount

Technology

Polymer

Dimensions

85 x 140mm

Height

140mm

Minimum Operating Temperature

-40°C

Diameter

85mm

Maximum Operating Temperature

+85°C

Lead Pitch

31.7mm

Lifetime

100000h

Tolerance

±10%

Polarised

Non-Polar

Equivalent Series Resistance

2.2mΩ

Series

C44U

Ripple Current

58 (10 kHz 40°C)A

Dissipation Factor

≤0.0002%

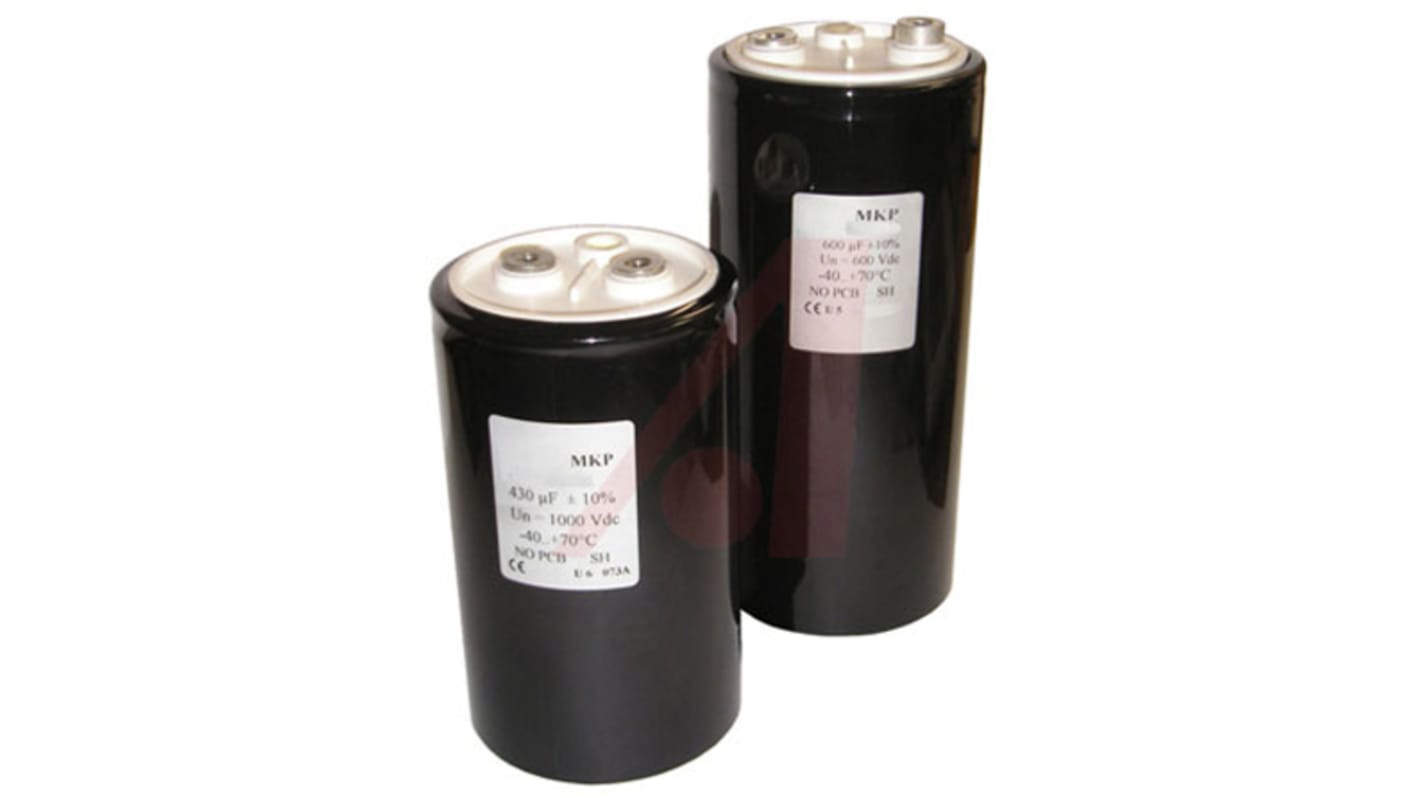

KEMET C44U Series Power Capacitors


C44U power capacitors from KEMET are constructed from a non-inductive segmented metallised polypropylene film within a cylindrical aluminium can. The can is filled with resin and features screw terminals and a plastic deck. This series is available with a DC rating of 600 V dc through to 1300 V dc and capacitance from 250 μF to 600 μF.

Features and Benefits


Long life expectancy of 100000 hours

High capacitance density

Controlled self-healing

Low losses

High ripple current

Product Applications


Recommended applications for these power capacitors include energy storage and DC filtering.
