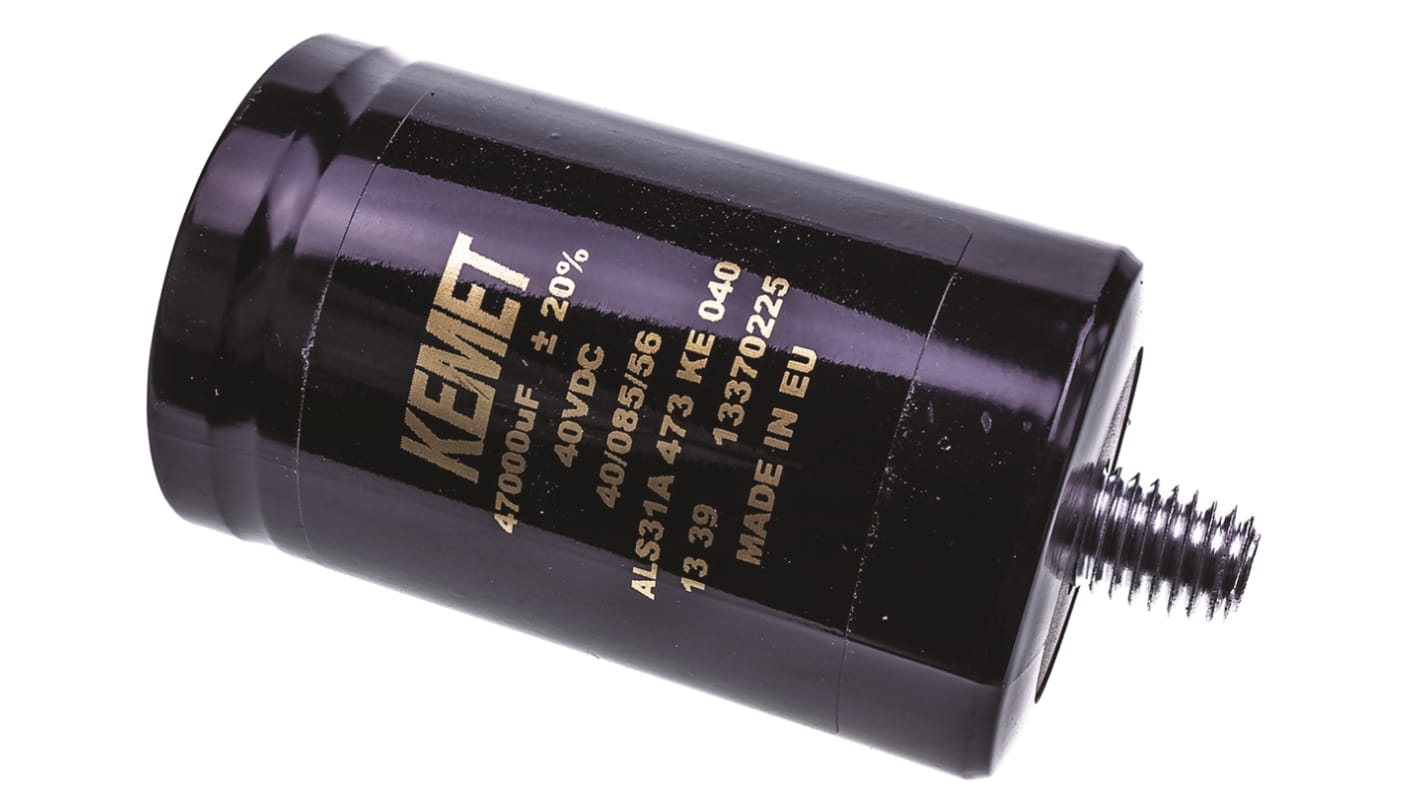

KEMET 47000μF Aluminium Electrolytic Capacitor 40V dc, Screw Terminal - ALS31A473KE040
- RS Stock No.:
- 172-6913
- Mfr. Part No.:
- ALS31A473KE040
- Brand:
- KEMET
Subtotal (1 box of 24 units)*
£508.512
(exc. VAT)
£610.224
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 72 unit(s) ready to ship
- Plus 999,999,912 unit(s) shipping from 23 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
---|---|---|
24 + | £21.188 | £508.51 |
*price indicative
- RS Stock No.:
- 172-6913
- Mfr. Part No.:
- ALS31A473KE040
- Brand:
- KEMET
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | KEMET | |
Capacitance | 47000µF | |
Voltage | 40V dc | |
Mounting Type | Screw Terminal | |
Technology | Aluminium Electrolytic | |
Dimensions | 51 (Dia.) x 82mm | |
Height | 82mm | |
Length | 82mm | |
Minimum Operating Temperature | -40°C | |
Diameter | 51mm | |
Maximum Operating Temperature | +85°C | |
Lifetime | 18000 h @ +85 °C/40V dc/Ir, 36000 h @ +85 °C/40V dc | |
Series | ALS31 | |
Ripple Current | 14.2A | |
Leakage Current | 6 mA | |
Polarised | Polar | |
Tolerance | ±20% | |
Equivalent Series Resistance | 12mΩ | |
Select all | ||
---|---|---|
Brand KEMET | ||
Capacitance 47000µF | ||
Voltage 40V dc | ||
Mounting Type Screw Terminal | ||
Technology Aluminium Electrolytic | ||
Dimensions 51 (Dia.) x 82mm | ||
Height 82mm | ||
Length 82mm | ||
Minimum Operating Temperature -40°C | ||
Diameter 51mm | ||
Maximum Operating Temperature +85°C | ||
Lifetime 18000 h @ +85 °C/40V dc/Ir, 36000 h @ +85 °C/40V dc | ||
Series ALS31 | ||
Ripple Current 14.2A | ||
Leakage Current 6 mA | ||
Polarised Polar | ||
Tolerance ±20% | ||
Equivalent Series Resistance 12mΩ | ||
ALS31 Series
The ALS31 series of aluminium electrolytic capacitors from KEMET provide a long life, compact solution. Offering various voltage options and case sizes, these aluminium electrolytic capacitors are suited to industrial and commercial applications requiring long life expectancy and high reliability.
Features
Up to 20000 h life span at +85°C
High ripple current
High reliability
Excellent surge voltage capability
High CV volume combined with high ripple current handling capability
High ripple current
High reliability
Excellent surge voltage capability
High CV volume combined with high ripple current handling capability
Product Application Information
Suitable applications for these aluminium electrolytic capacitors include smoothing, energy storage and pulse operation in telecommunication demanding power supplies. These aluminium capacitors are ideal for AC motor control, process control, welding, traction and measuring.
Note
Terminal screws and fixing nut are not supplied
Standards
AEC-Q200
