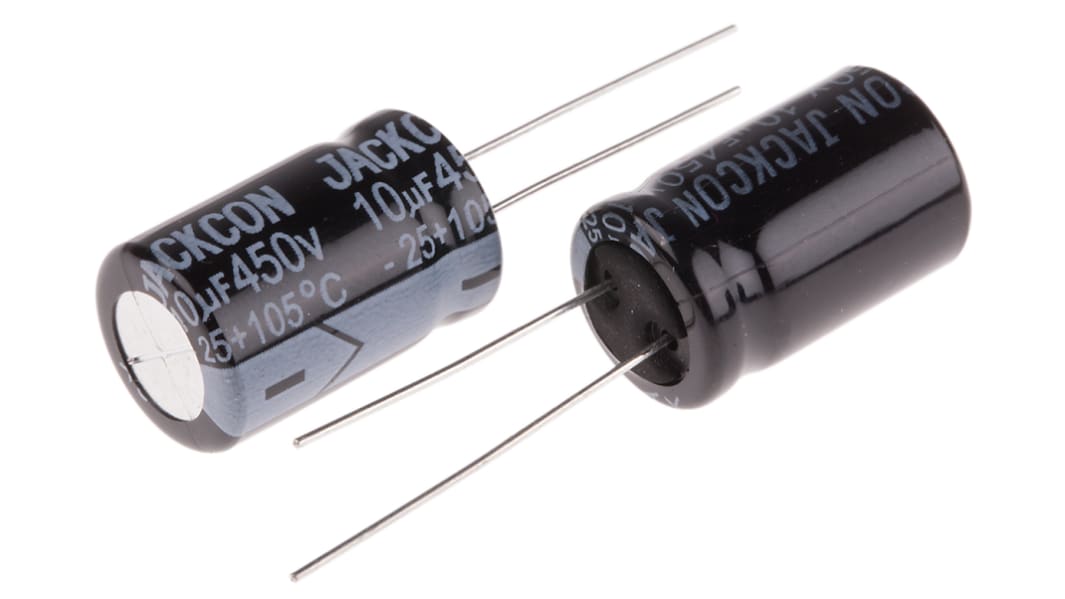

RS PRO 10μF Aluminium Electrolytic Capacitor 450V dc, Radial, Through Hole
- RS Stock No.:
- 170-1323
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 bag of 250 units)*
£82.00
(exc. VAT)
£98.50
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 250 unit(s) shipping from 01 December 2025
- Plus 1,000 unit(s) shipping from 27 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 250 - 250 | £0.328 | £82.00 |
| 500 - 750 | £0.315 | £78.75 |
| 1000 - 1750 | £0.305 | £76.25 |
| 2000 - 3750 | £0.276 | £69.00 |
| 4000 + | £0.243 | £60.75 |
*price indicative
- RS Stock No.:
- 170-1323
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Capacitance | 10µF | |
| Voltage | 450V dc | |
| Mounting Type | Radial, Through Hole | |
| Technology | Aluminium Electrolytic | |
| Dimensions | 13 (Dia.) x 21mm | |
| Height | 21mm | |
| Length | 21mm | |
| Minimum Operating Temperature | -25°C | |
| Diameter | 13mm | |
| Maximum Operating Temperature | 105°C | |
| Lead Pitch | 5mm | |
| Lifetime | 2000h | |
| Tolerance | ±20% | |
| Ripple Current | 92mA | |
| Leakage Current | <=0.03 CV or 3 μA @ 1 min | |
| Polarised | Polar | |
| Series | RS | |
| Dissipation Factor | 20% | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Capacitance 10µF | ||
Voltage 450V dc | ||
Mounting Type Radial, Through Hole | ||
Technology Aluminium Electrolytic | ||
Dimensions 13 (Dia.) x 21mm | ||
Height 21mm | ||
Length 21mm | ||
Minimum Operating Temperature -25°C | ||
Diameter 13mm | ||
Maximum Operating Temperature 105°C | ||
Lead Pitch 5mm | ||
Lifetime 2000h | ||
Tolerance ±20% | ||
Ripple Current 92mA | ||
Leakage Current <=0.03 CV or 3 μA @ 1 min | ||
Polarised Polar | ||
Series RS | ||
Dissipation Factor 20% | ||
- COO (Country of Origin):
- TW
General Purpose Radial 400 to 450V
Safety vent construction design
Applications include communication equipment and switching power supply
Applications include communication equipment and switching power supply
