Legris Compressed Air Pipe Blue Polyamide 12mm x 100m 1100P Series
- RS Stock No.:
- 144-7886
- Mfr. Part No.:
- 1100P12 04
- Brand:
- Legris
3 In stock - FREE next working day delivery available
9 available from Europe for delivery within 1 working day(s).
Added
Price Each
£221.19
(exc. VAT)
£265.43
(inc. VAT)
| Units | Per unit |
| 1 + | £221.19 |
- RS Stock No.:
- 144-7886
- Mfr. Part No.:
- 1100P12 04
- Brand:
- Legris
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- ES
Product Details

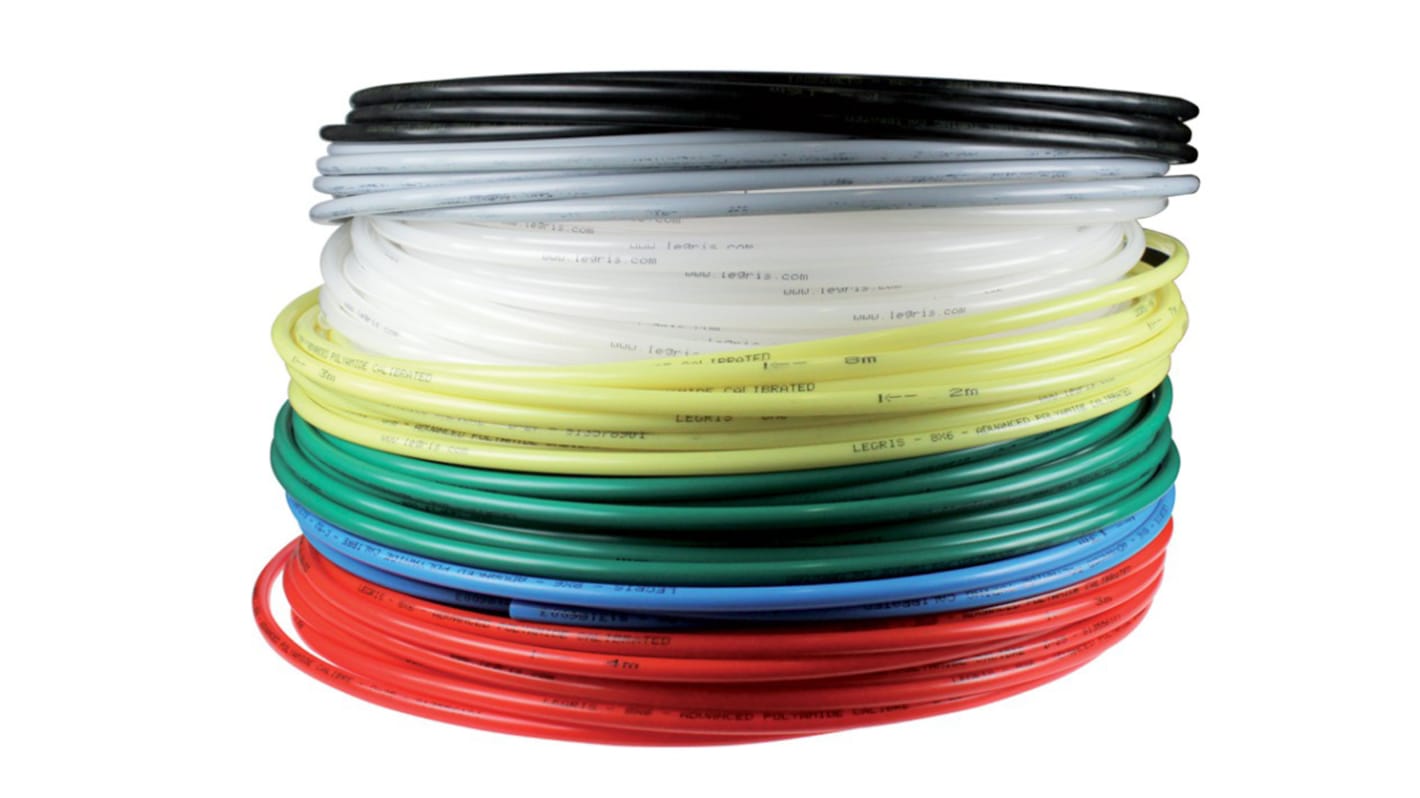

Polyamide (PA) Flexible Tubing
Parker Legris polyamide (PA) tubing has been specially tested for industrial and vehicle applications. Its durability is due to its stable long-term mechanical properties.
Features and Benefits
• Good chemical and humidity resistance
• Excellent material stability
• Continuous calibration during production for excellent reliability
• Two material grades: rigid and semi-rigid
• Wide range of working pressure and temperature
• Good vibration absorption
• Abrasion-resistant
• Large choice of colours to facilitate circuit identification
• Silicone-free
Product Application Information
• Factory automation
• Miscellaneous manufacturing
• Packaging
• Machine tools
Can be used for standard pneumatic machinery equipment and low-pressure air conveying. The tubing is also suitable for vacuum applications.
Approvals
• DI: 2002/95/EC (RoHS), 2011/65/EC
• DI: 97/23/EC (PED)
• RG: 1907/2006 (REACH)
Transportation
• Chemical performance and resistance tested according to
DIN 74324 -1 / DIN 73378 / ISO 7628
• DI: 97/23/EC (PED)
• RG: 1907/2006 (REACH)
Transportation
• Chemical performance and resistance tested according to
DIN 74324 -1 / DIN 73378 / ISO 7628
Parker Legris
Specifications
Attribute | Value |
|---|---|
| Hose Outside Diameter | 12mm |
| Hose Inside Diameter | 10mm |
| Colour | Blue |
| Material | Polyamide |
| Application | Industrial |
| Length | 100m |
| Maximum Operating Pressure | 50 bar |
| Manufacturer Series | 1100P |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +100°C |
| Special Features | Highly Durable |
| Number of Tubes | 1 |
