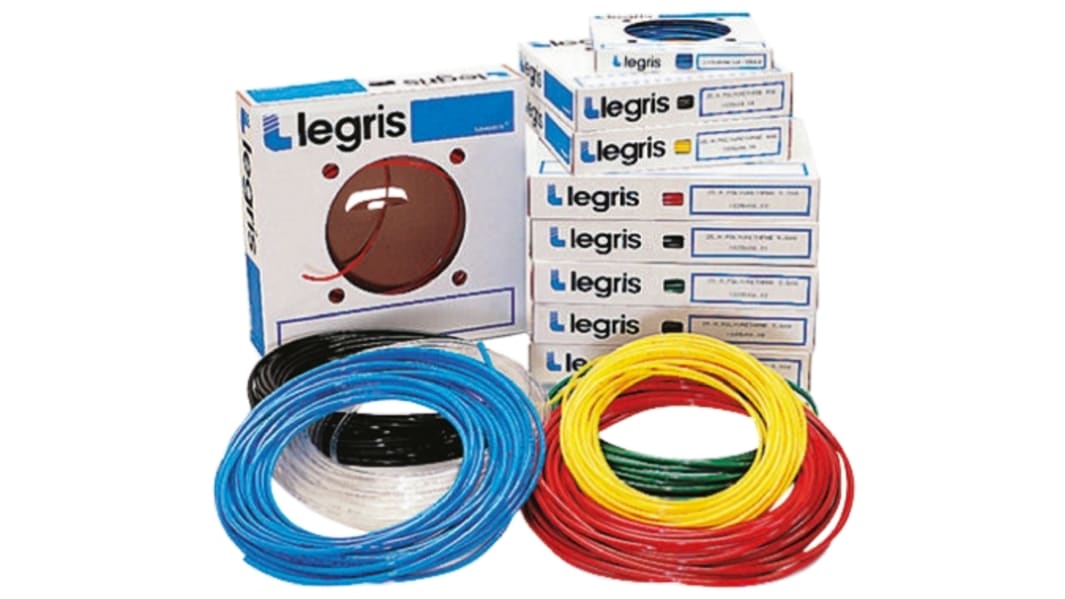

Legris Compressed Air Pipe Black PUR 8mm x 25m 1025U Series
- RS Stock No.:
- 224-530
- Mfr. Part No.:
- 1025U08 01
- Brand:
- Legris
2 In stock - FREE next working day delivery available
64 available from Europe for delivery within 1 working day(s).
Added
Price Each
£35.42
(exc. VAT)
£42.50
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £35.42 |
| 5 - 9 | £34.35 |
| 10 + | £33.22 |
- RS Stock No.:
- 224-530
- Mfr. Part No.:
- 1025U08 01
- Brand:
- Legris
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- ES
Product Details
Polyurethane (PU) Flexible Tubing
Polyurethanes 3 specific materials - ester, ether and food-grade ""crystal"" - offer excellent flexibility and outstanding use in a wide range of applications. The tubing allows for 50% space reduction when compared to semi-rigid tubing.
There are 3 material grades:
• PU ester - for pneumatic applications
• PU ether - no water absorption
• PU ether food-grade ""crystal"" - chemical resistance superior to PU ether
Features and Benefits
• Excellent mechanical properties
• Optimal bend radius
• Unsurpassed abrasion resistance for a single layer tubing
• UV-resistant
• Superior vacuum capability due to surface hardness
• Good vibration absorption
• Large choice of colours to facilitate circuit identification
• Silicone-free
• Consistent tensile strength for optimum longevity
Product Application Information
• Factory automation
• Miscellaneous manufacturing
• Food and beverage
• Vehicle assembly facilities
Used for compressed air, fluid conveying and standard pneumatic applications requiring rapid cycles. Also suitable for vacuum applications, water and high humidity (PU ether).
Approvals
• DI: 2002/95/EC (RoHS), 2011/65/EC
• DI: 97/23/EC (PED)
• RG: 1907/2006 (REACH)
Food (PU ether food-grade ""crystal"")
• FDA: 21 CFR 177.2600, 178.3297, 176.170, 178.2010
• RG: 1935/2004 EC
• DI: 97/23/EC (PED)
• RG: 1907/2006 (REACH)
Food (PU ether food-grade ""crystal"")
• FDA: 21 CFR 177.2600, 178.3297, 176.170, 178.2010
• RG: 1935/2004 EC
Standards
NF E49-101
Parker Legris
Specifications
Attribute | Value |
|---|---|
| Hose Outside Diameter | 8mm |
| Hose Inside Diameter | 5.5mm |
| Colour | Black |
| Material | PUR |
| Length | 25m |
| Maximum Operating Pressure | 8bar |
| Manufacturer Series | 1025U |
| Minimum Operating Temperature | -15°C |
| Maximum Operating Temperature | +70°C |
