Arcol Ohmite 25Ω ±10% 100W High Power Wirewound Adjustable Resistor ±260ppm/°C 165.1mm

View all Adjustable Resistors
Bulk discount available

Subtotal (1 unit)*

£31.70

(exc. VAT)

£38.04

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 2 unit(s) ready to ship
  • Plus 25 unit(s) shipping from 28 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£31.70
5 - 9£28.97
10 - 19£26.79
20 +£25.43

*price indicative

RS Stock No.:
144-5503
Mfr. Part No.:
D100K25RE
Brand:
Arcol Ohmite
Find similar products by selecting one or more attributes.
Select all

Brand

Arcol Ohmite

Resistance

25Ω

Tolerance

±10%

Power Rating

100W

Temperature Coefficient

±260ppm/°C

Termination Style

Solder

Technology

Wire Wound

Mounting Style

Bolt On

Case Style

Vitreous Enamel

Series

210

Dimensions

19.1 x 165.1mm

Diameter

19.1mm

Length

165.1mm

Maximum Operating Temperature

+350°C

Minimum Operating Temperature

+25°C

Construction

Wire Wound

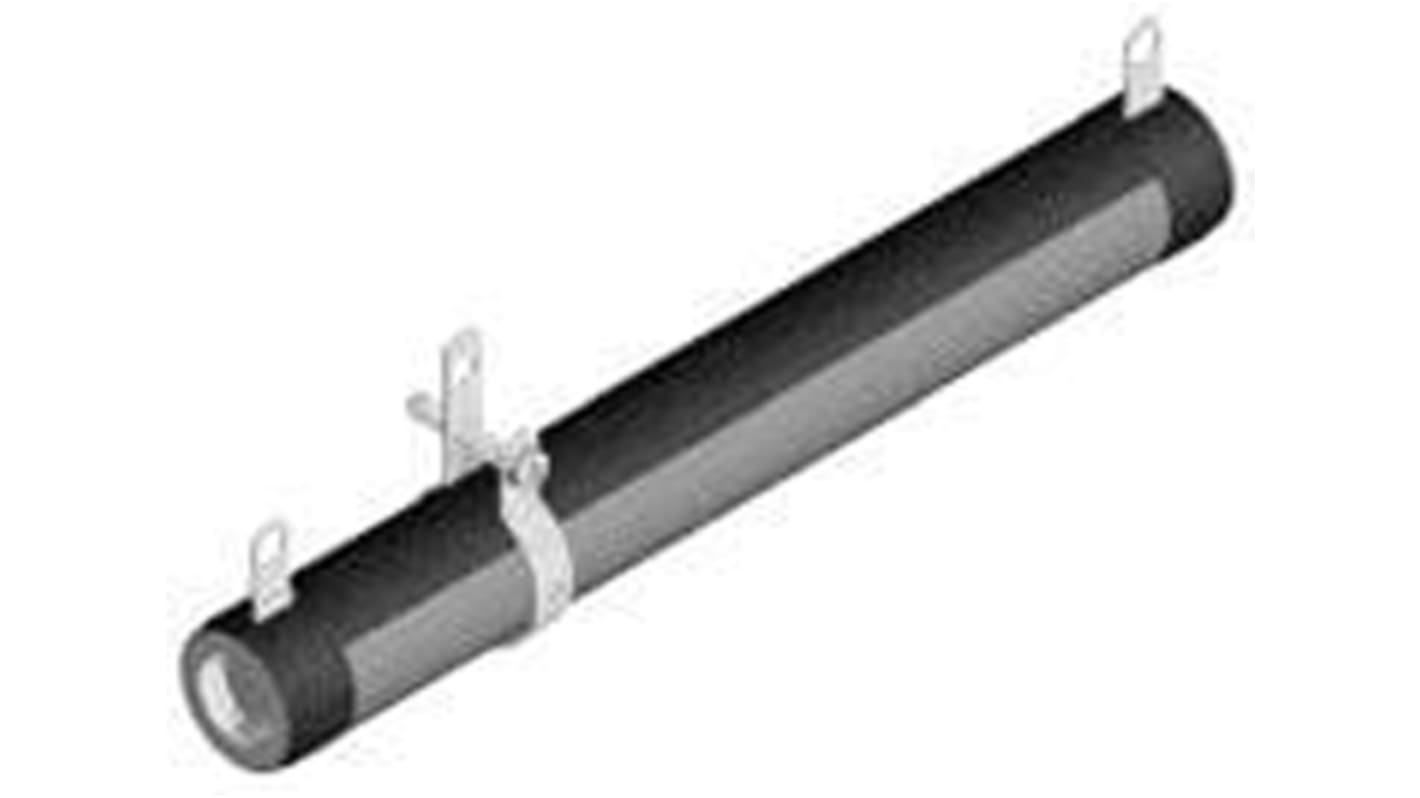

Ohmite 210 Series Wirewound Adjustable Power Resistors


Ohmite 210 series adjustable power resistors for applications requiring settings at different resistance values. These wirewound resistors are equipped with an adjustable lug, making them ideal for adjusting circuits, obtaining odd resistance values and setting equipment to meet various line voltages. The 210 series resistors feature a hollow core to permit secure fastening with spring-type clips or thru bolts with washers. They also offer the durability of lead free vitreous enamel coating and all-welded construction.

Terminals suitable for soldering or bolt connection.
Adjustable lug supplied
High wattage applications
All-welded construction
Rugged lead free vitreous enamel coating.
Flame resistant coating
RoHS compliant

Note

Mounting brackets not included.
Terminals suitable for soldering or bolt connection
Adjustable lug supplied
High wattage applications
All welded construction
Rugged lead free vitreous enamel coating
Flame resistant coating
Additional adjustable lugs available

Choose Ohmite’s 210 Type adjustable resistors for applications requiring settings at different resistance values. These wirewound resistors are equipped with an adjustable lug, making them ideal for adjusting circuits, obtaining odd resistance values and setting equipment to meet various line voltages. 210 Type resistors feature a hollow core to permit secure fastening with spring-type clips or thru bolts with washers. They also offer the durability of lead free vitreous enamel coating and all-welded construction. Mounting brackets not included with resistors.
