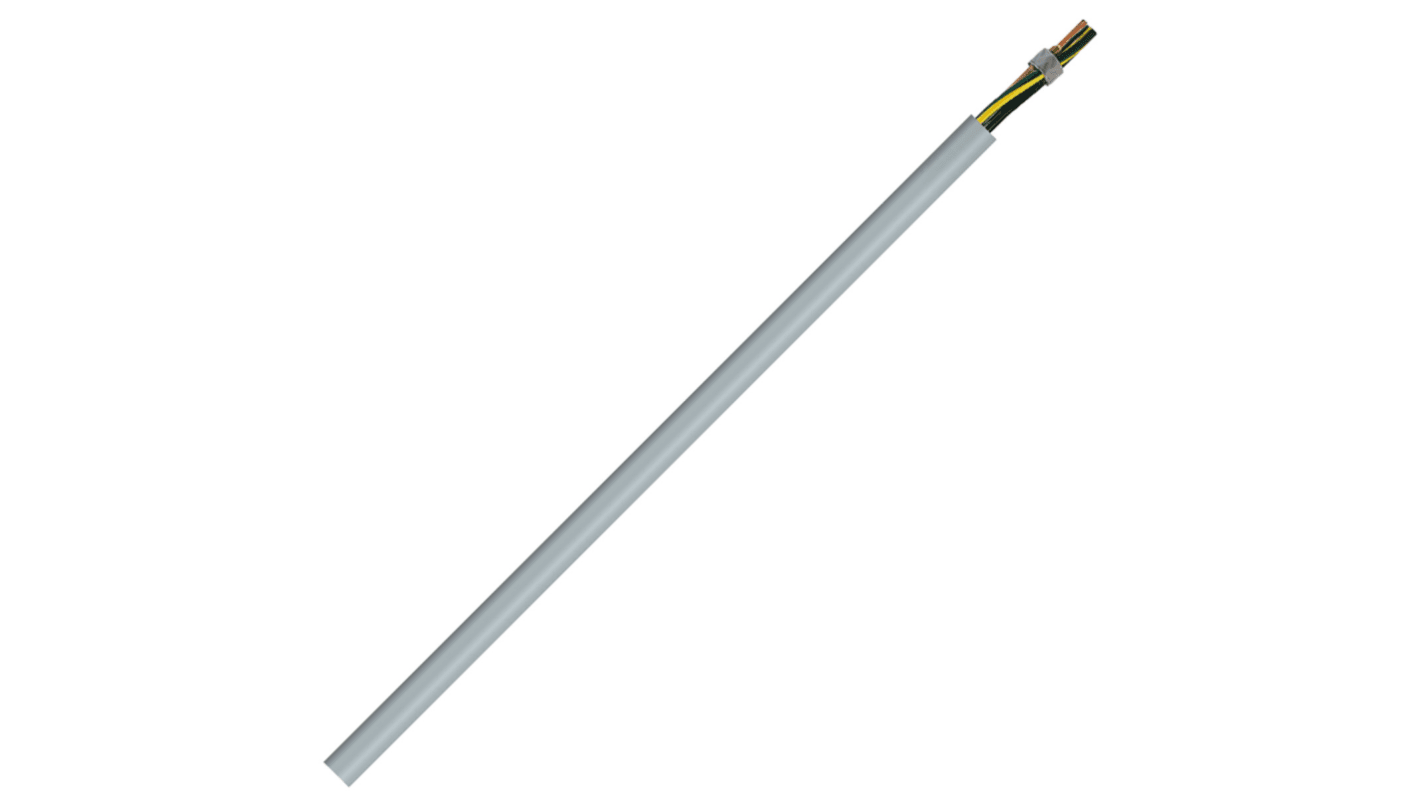

CAE Groupe 12 Core Polyvinyl Chloride PVC Sheath Multicore Actuator/Sensor Cable, 0.75 mm² CSA

  • RS Stock No. 797-0987
  • Mfr. Part No. H112.0075
  • Brand CAE Groupe
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): IT
Product Details

Harmoflex H05VV5-F Cable

The H0VV5-F range of cables can be used in a number of applications including power, control, connecting cables in electrical facilities, for fixed laying and movement without tensile stress or without defined cable routing.

Features and Benefits

• Suitable for use in dry, humid and wet rooms (also water-oil mixture)
• Free from lacquer damaging substances and silicone (during production)
• Outdoor use only with UV protection- no laying underground
• Increased resistance to oil by special PVC outer sheath

Specifications
Attribute Value
Number of Cores 12
Cross Sectional Area 0.75 mm²
Screened/Unscreened Unscreened
Length 50m
Outer Diameter 13.7mm
Voltage Rating 300 V, 500 V
Sheath Material Polyvinyl Chloride PVC
American Wire Gauge 18 AWG
Cable Shape Multicore
Insulation Material PVC
Sheath Colour Grey
Oil Resistant Yes
Series Harmoflex H05VV5-F
Minimum Bend Radius 8 x D
Conductor Material Bare Copper
Maximum Operating Temperature +70°C
Minimum Operating Temperature -5°C
2 In stock for delivery within 1 working days
Price 1 Reel of 50 Metre(s)
£ 158.74
(exc. VAT)
£ 190.49
(inc. VAT)
Reel(s)
Per Reel
Per Metre*
1 +
£158.74
£3.175
*price indicative
Not available for guaranteed pre 9am/10am delivery
