Mellor Electric AC1000 Anti Clockwise Shaded Pole AC Motor, 19 W, 1 Phase, 2 Pole, 220 → 260 V ac

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

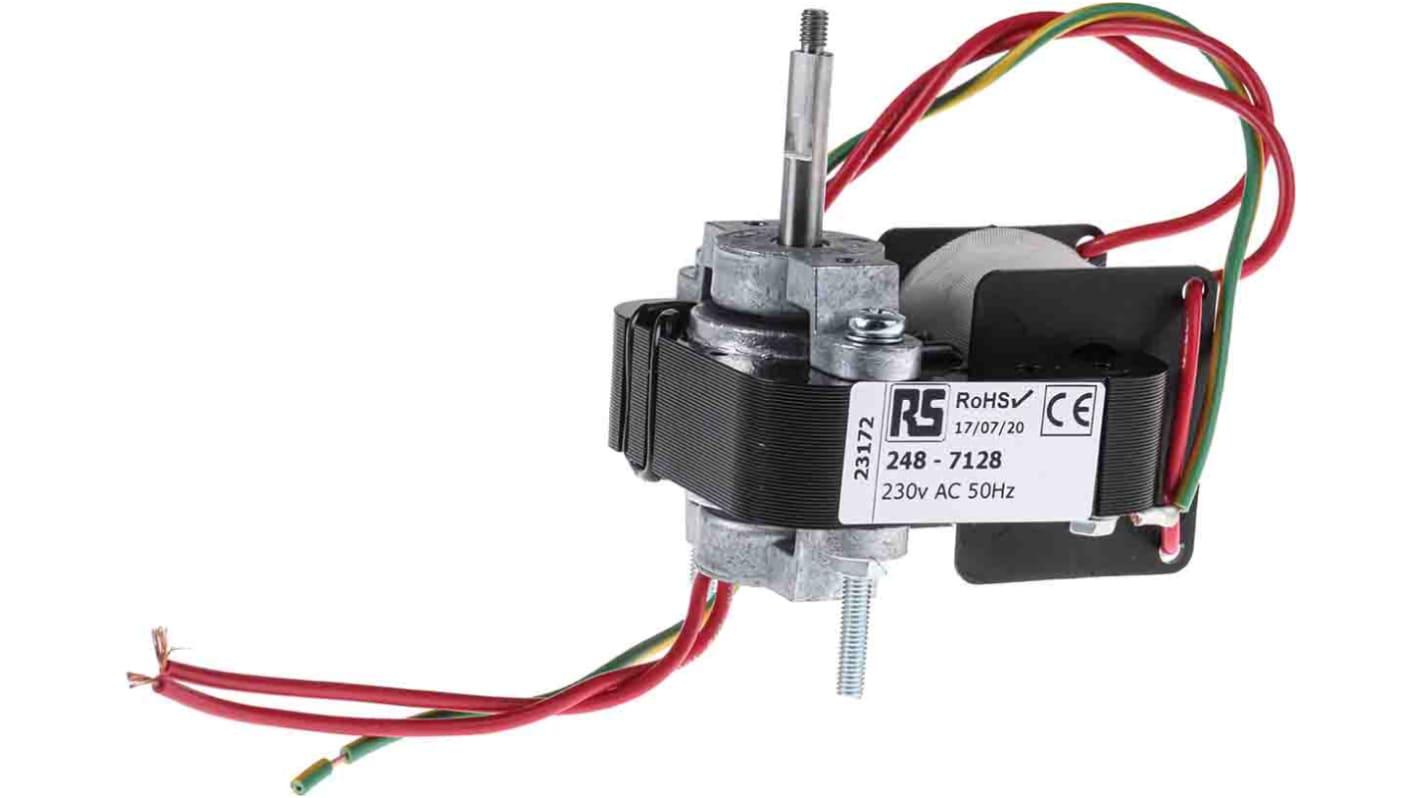

Shaded Pole Motor

A 240 Vac 50//60 Hz shaded pole motor with starting characteristics ideal for small loads such as air and liquid movement
The 6Ø x 25mm long stainless steel shaft extension is threaded M4 for the first 5 mm as well as having a 1 mm deep flat for 19 mm
The two pole windings are varnish impregnated to class F insulation, impedance protected. Non-reversing, self-starting, r.f. and t.v. interference-free. Sintered bronze bearings
Two versions are offered: clockwise (cw) and anti-clockwise (acw) rotation as viewed from extension shaft. Complete with 300 mm supply leads including earth. Both versions are UL 94-V0 rated and are self extinguishing within 10-15 seconds

Specifications
Attribute Value
Power Rating 19 W
AC Motor Type Shaded Pole
Supply Voltage 220 → 260 V ac
Phase 1
Output Speed 2000 rpm @ 240 V
Number of Poles 2
Shaft Diameter 6mm
Length 73.25mm
Depth 46.53mm
Maximum Output Torque 1.06 Ncm
Series AC1000
Rotation Anti Clockwise
31 In stock for FREE next working day delivery
Price Each
£ 15.59
(exc. VAT)
£ 18.71
(inc. VAT)
Units
Per unit
1 +
£15.59
