Schneider Electric AC Motor, 1.05 W, 480 V dc
- RS Stock No.:
- 248-3953
- Mfr. Part No.:
- BMH0701P01F2A
- Brand:
- Schneider Electric
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 248-3953
- Mfr. Part No.:
- BMH0701P01F2A
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Schneider Electric | |
Power Rating | 1.05 W | |
Supply Voltage | 480 V dc | |
Output Speed | 8000 rpm | |
Shaft Diameter | 11mm | |
Maximum Output Torque | 1.2 Nm | |
Select all | ||
---|---|---|
Brand Schneider Electric | ||
Power Rating 1.05 W | ||
Supply Voltage 480 V dc | ||
Output Speed 8000 rpm | ||
Shaft Diameter 11mm | ||
Maximum Output Torque 1.2 Nm | ||
- COO (Country of Origin):
- DE

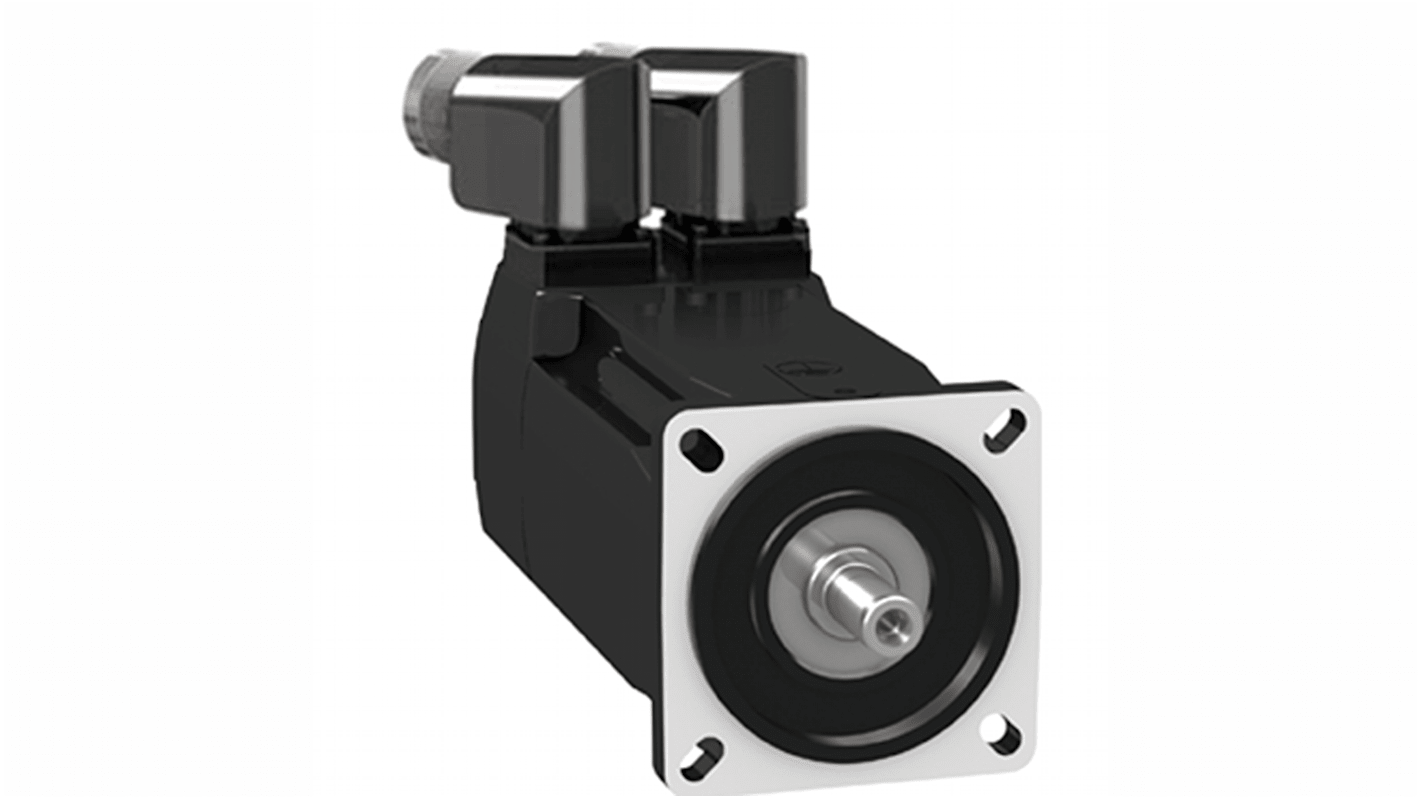

Schneider Electric BMH0701P01F2A
This product is part of the Lexium 32 range, an offer of servo motors from 0.15kW to 11kW. The 10-pole servo motor features maximum mechanical speed of 8000RPM and smooth shaft end with holding brake. It is an equipped with a single-turn SinCos Hiperface® feedback with 1,31,072 points/turn speed feedback resolution. It is a servo motor with a rated supply voltage of 480V, a continuous stall current of 1.78A and a continuous power of 1.05W. The shaft dimensions are 11mm (diameter) x 23mm (length). It is furnished with rotatable right angled connectors for electrical connection. It is an IP54 rated product. The length of this product is 161mm and the centering collar dimensions are 2.5mm (depth) x 60mm (diameter) with 82mm mounting hole. It weighs 2.6kg. This range is compatible with Lexium 32 servo drives. This product is compatible with LXM32.U60N4 at 400V to 480V three phase and LXM32.D12N4 at 400V to 480V three phase. It supports 70mm international standard flange mount with a natural convection cooling system. Lexium 32 is a servo drive range provides drive and motor combination that has exactly the right power, performance and functionality. The Lexium 32 range of servo drives includes four servo drive models with power ratings from 0.15kW to 11kW and the servo motor ranges BMH and BSH series.
The Schneider Electric servo motor BMH is three-phase motor and they feature a SinCos Hiperface encoder for automatic transmission of data from the servo motor to the servo drive and are available with or without a holding brake. It offer continuous stall torque range from 1.2 Nm with nominal speed 8000 RPM.
IP degree of protection IP54 standard
Number of motor stacks 1
Number of motor stacks 1
