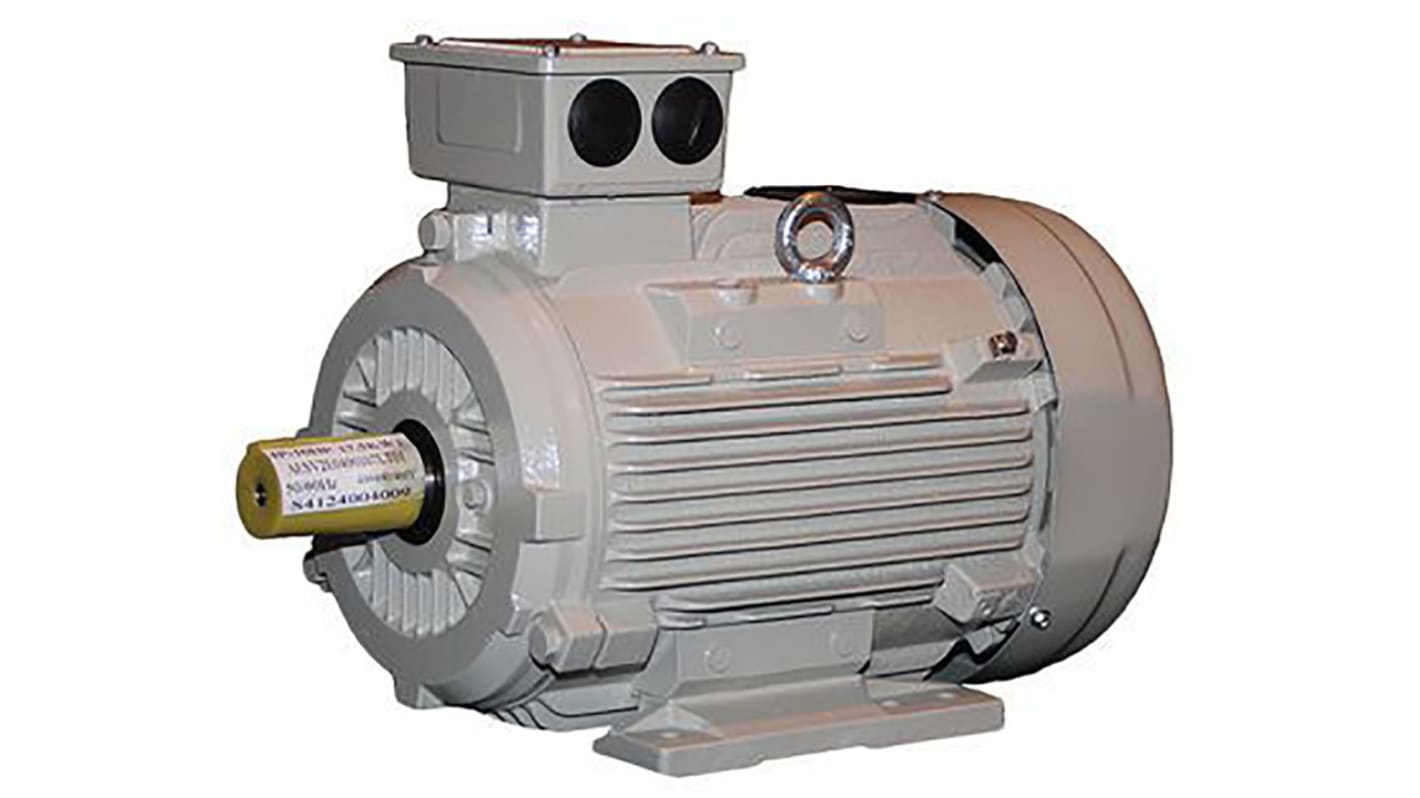

TECO Westinghouse ALTA Reversible Induction AC Motor, 0.37 kW, IE3, 3 Phase, 4 Pole, 230 V, 400 V, Foot Mount Mounting

View all AC Motors
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
127-2676
Mfr. Part No.:
ALTA - 0071 M1 - 10004- IO
Brand:
TECO Westinghouse
Find similar products by selecting one or more attributes.
Select all

Brand

TECO Westinghouse

Power Rating

0.37 kW

Efficiency Class

IE3

Frequency Rating

50Hz

AC Motor Type

Induction

Supply Voltage

230 V, 400 V

Phase

3

Number of Poles

4

Mounting Type

Foot Mount

Shaft Diameter

14mm

Shaft Length

30mm

Width

136mm

Current Rating

990 mA

Maximum Output Torque

2.57 Nm

Rotation

Reversible

Length

245mm

Depth

160mm

Series

ALTA

Standards Met

IEC

Dimensions

245 x 136 x 160 mm

Bearing Type

Ball

COO (Country of Origin):
CN

4 Pole, Foot Mounted Motors - Teco ALTA Series


Professional range of ALTA series AC motors from Teco. These AC motors require ventilation space at rear cooling air intake. All models are excellent quality and highly reliable.

3-phase induction motor
4-pole
IE3 efficiency
Flange mounted version
