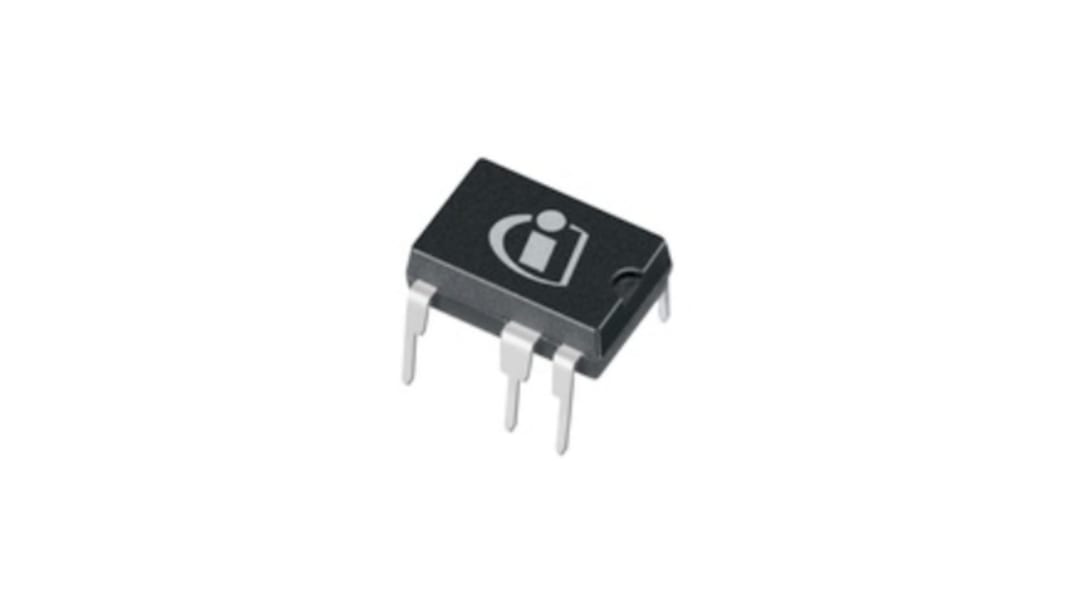

Infineon, AC/DC Converter 7-Pin, PG-DIP-7
- RS Stock No.:
- 262-5902
- Mfr. Part No.:
- ICE3AR0680JZXKLA1
- Brand:
- Infineon
Subtotal (1 tube of 2000 units)*
£2,518.00
(exc. VAT)
£3,022.00
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Tube* |
|---|---|---|
| 2000 + | £1.259 | £2,518.00 |
*price indicative
- RS Stock No.:
- 262-5902
- Mfr. Part No.:
- ICE3AR0680JZXKLA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Maximum Input Voltage | 25V | |
| Product Type | AC/DC Converter | |
| Mount Type | Through Hole | |
| Output Power | 39W | |
| Pin Count | 7 | |
| Switching Frequency | 100kHz | |
| Package Type | PG-DIP-7 | |
| Minimum Input Voltage | 10.5V | |
| Topology | Flyback | |
| Maximum Duty Cycle | 80% | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 130°C | |
| Length | 9.77mm | |
| Height | 4.57mm | |
| Standards/Approvals | SVHC Free, RoHS Phthalates, RoHS | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Maximum Input Voltage 25V | ||
Product Type AC/DC Converter | ||
Mount Type Through Hole | ||
Output Power 39W | ||
Pin Count 7 | ||
Switching Frequency 100kHz | ||
Package Type PG-DIP-7 | ||
Minimum Input Voltage 10.5V | ||
Topology Flyback | ||
Maximum Duty Cycle 80% | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 130°C | ||
Length 9.77mm | ||
Height 4.57mm | ||
Standards/Approvals SVHC Free, RoHS Phthalates, RoHS | ||
Automotive Standard No | ||
The Infineon Integrated power management IC comes with 800V avalanche rugged CoolMOS, start-up cell and QR current mode fly back PWM controller in DIP-7 package. It is capable for 44W SMPS design.
Very accurate maximum power control
Low EMI noise
Low standby power
