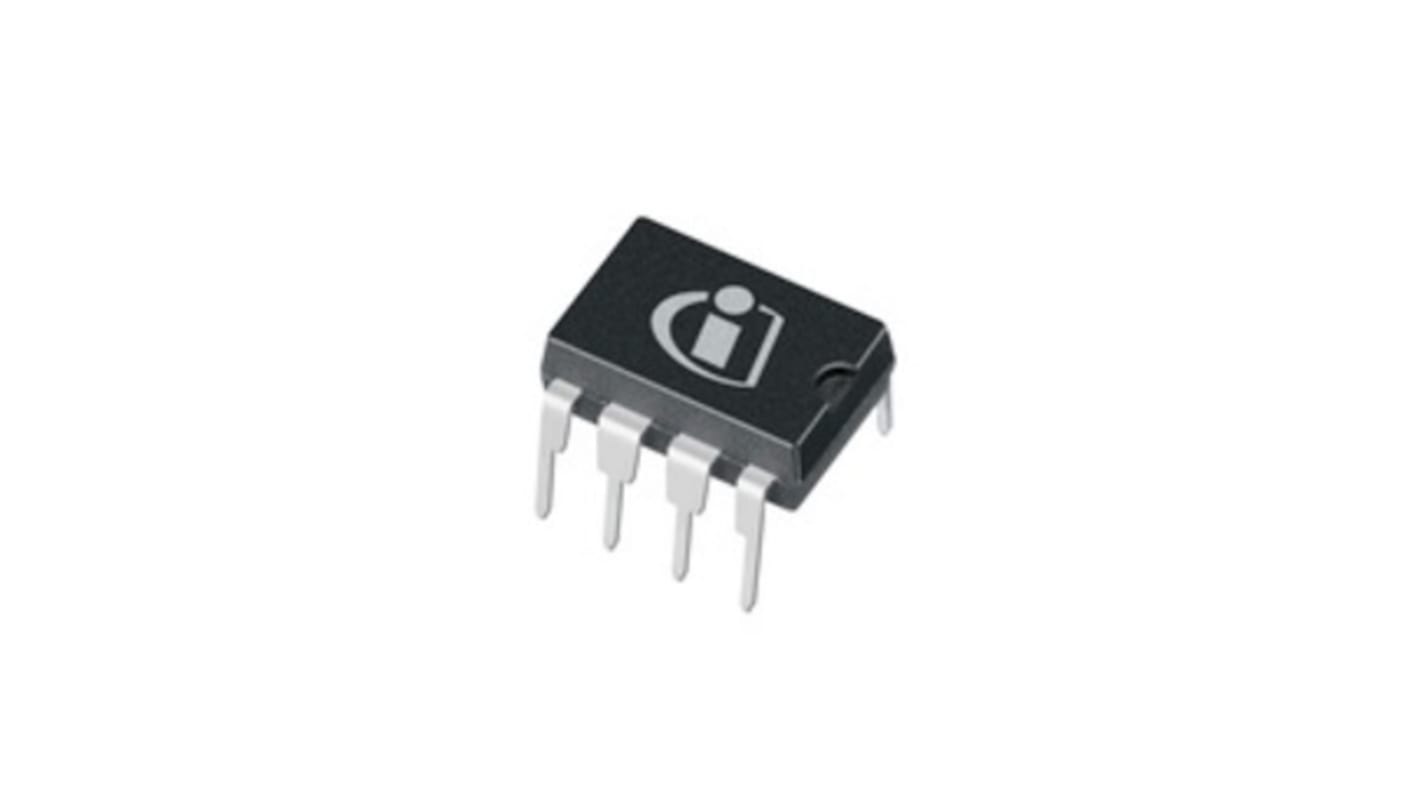

Infineon, AC/DC Converter 8-Pin, DIP ICE3A2065ELJFKLA1
- RS Stock No.:
- 260-5907
- Mfr. Part No.:
- ICE3A2065ELJFKLA1
- Brand:
- Infineon
Bulk discount available
View bulk pricing optionsSubtotal (1 tube of 50 units)*
£57.00
(exc. VAT)
£68.50
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 250 unit(s) shipping from 12 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 50 - 50 | £1.14 | £57.00 |
| 100 - 200 | £1.083 | £54.15 |
| 250 - 450 | £1.026 | £51.30 |
| 500 + | £0.982 | £49.10 |
*price indicative
- RS Stock No.:
- 260-5907
- Mfr. Part No.:
- ICE3A2065ELJFKLA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Maximum Input Voltage | 26V | |
| Product Type | AC/DC Converter | |
| Output Power | 34W | |
| Mount Type | Through Hole | |
| Pin Count | 8 | |
| Switching Frequency | 100kHz | |
| Package Type | DIP | |
| Minimum Input Voltage | 10.5V | |
| Topology | Flyback | |
| Maximum Duty Cycle | 75% | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 130°C | |
| Height | 4.8mm | |
| Standards/Approvals | RoHS Phthalates, SVHC Free, RoHS | |
| Width | 6.6mm | |
| Length | 9.1mm | |
| Automotive Standard | No | |
| Supply Current | 4.2mA | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Maximum Input Voltage 26V | ||
Product Type AC/DC Converter | ||
Output Power 34W | ||
Mount Type Through Hole | ||
Pin Count 8 | ||
Switching Frequency 100kHz | ||
Package Type DIP | ||
Minimum Input Voltage 10.5V | ||
Topology Flyback | ||
Maximum Duty Cycle 75% | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 130°C | ||
Height 4.8mm | ||
Standards/Approvals RoHS Phthalates, SVHC Free, RoHS | ||
Width 6.6mm | ||
Length 9.1mm | ||
Automotive Standard No | ||
Supply Current 4.2mA | ||
The Infineon SMPS current mode controller comes with start-up cell. It consists active burst mode to reach the lowest standby power requirements < 100mW. Built-in latched off mode and external latch enable function to increase robustness of the system. Built-in and extendable blanking window for high load jumps to increase system reliability.
Built-in soft start
Built-in and extendable blanking window for short duration high current
External latch enable function
Max duty cycle 75%
Overall tolerance of current limiting < ±5%
