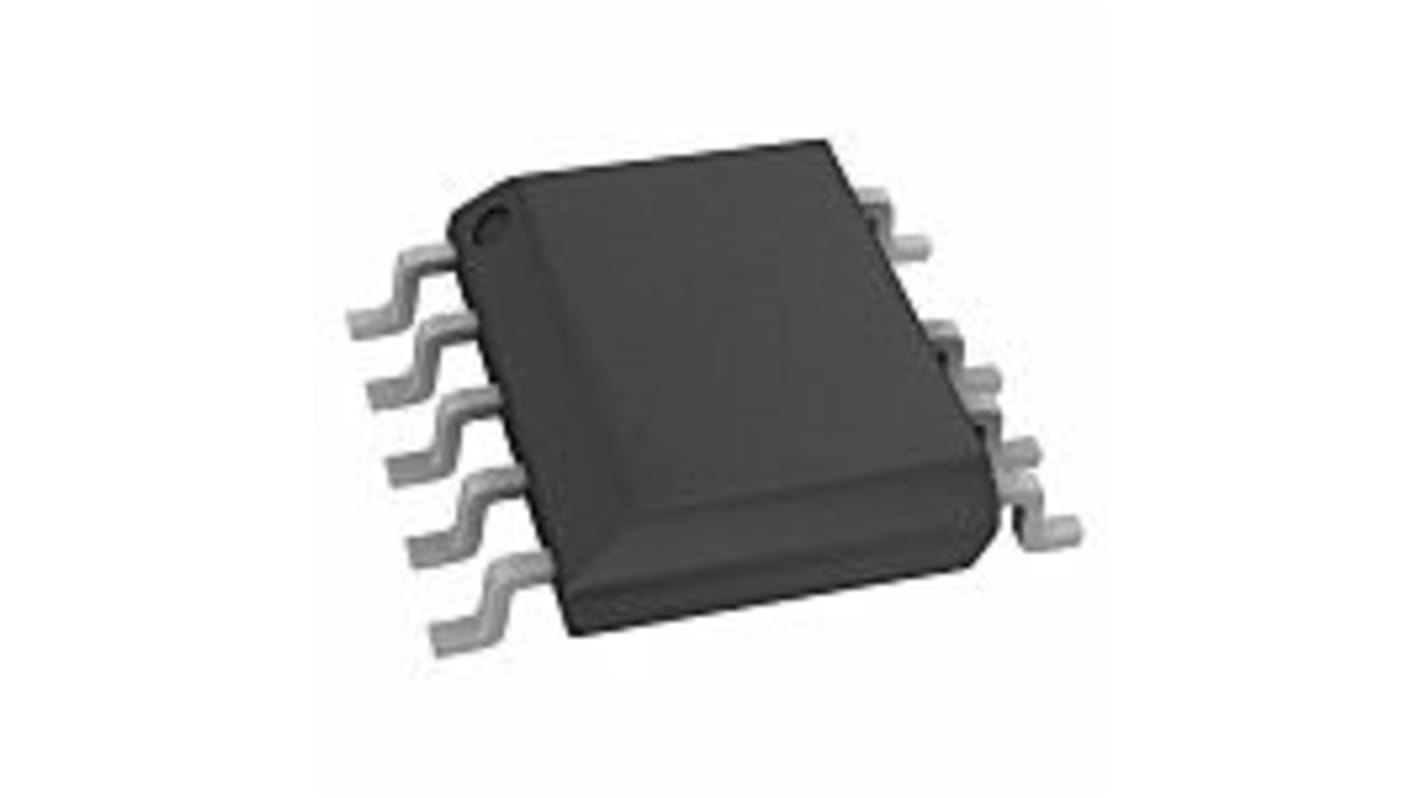

onsemi, AC/DC Converter 800 mA 9-Pin, SOIC NCP1342ENDCEAD1R2G
- RS Stock No.:
- 230-9058
- Mfr. Part No.:
- NCP1342ENDCEAD1R2G
- Brand:
- onsemi
Bulk discount available
Subtotal (1 pack of 5 units)*
£4.86
(exc. VAT)
£5.83
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Final 2,450 unit(s), ready to ship
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 45 | £0.972 | £4.86 |
| 50 - 95 | £0.838 | £4.19 |
| 100 - 495 | £0.726 | £3.63 |
| 500 - 995 | £0.638 | £3.19 |
| 1000 + | £0.582 | £2.91 |
*price indicative
- RS Stock No.:
- 230-9058
- Mfr. Part No.:
- NCP1342ENDCEAD1R2G
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Maximum Input Voltage | 30V | |
| Product Type | AC/DC Converter | |
| Mount Type | Surface | |
| Switching Frequency | 25kHz | |
| Pin Count | 9 | |
| Maximum Output Current | 800mA | |
| Package Type | SOIC | |
| Minimum Input Voltage | 9V | |
| Topology | Flyback | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Series | NCP1342 | |
| Standards/Approvals | SVHC: No SVHC (27-Jun-2024), RoHS Phthalates, RoHS, ECCN: EAR99 | |
| Height | 4mm | |
| Length | 5mm | |
| Supply Current | 1mA | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Maximum Input Voltage 30V | ||
Product Type AC/DC Converter | ||
Mount Type Surface | ||
Switching Frequency 25kHz | ||
Pin Count 9 | ||
Maximum Output Current 800mA | ||
Package Type SOIC | ||
Minimum Input Voltage 9V | ||
Topology Flyback | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Series NCP1342 | ||
Standards/Approvals SVHC: No SVHC (27-Jun-2024), RoHS Phthalates, RoHS, ECCN: EAR99 | ||
Height 4mm | ||
Length 5mm | ||
Supply Current 1mA | ||
Automotive Standard No | ||
The ON Semiconductor series NCP1342 is a highly integrated quasi−resonant fly back controller suitable for designing high−performance off−line power converters. With an integrated active X2 capacitor discharge feature, the NCP1342 can enable no−load power consumption below 30 mW. To ensure light load performance with high frequency designs, the NCP1342 incorporates Rapid Frequency Fold back with Minimum Peak Current Modulation to reduce the switching frequency quickly.
Integrated High−Voltage Start-up Circuit with Brownout Detection
Integrated X2 Capacitor Discharge Capability
Wide VCC Range from 9 V to 28 V
28 V VCC Overvoltage Protection
Abnormal Overcurrent Fault Protection for Winding Short Circuit or Saturation Detection
Internal Temperature Shutdown
Valley Switching Operation with Valley−Lockout for Noise−Free Operation
Frequency Fold back with 25 kHz Minimum Frequency Clamp for Increased Efficiency at Light Loads
