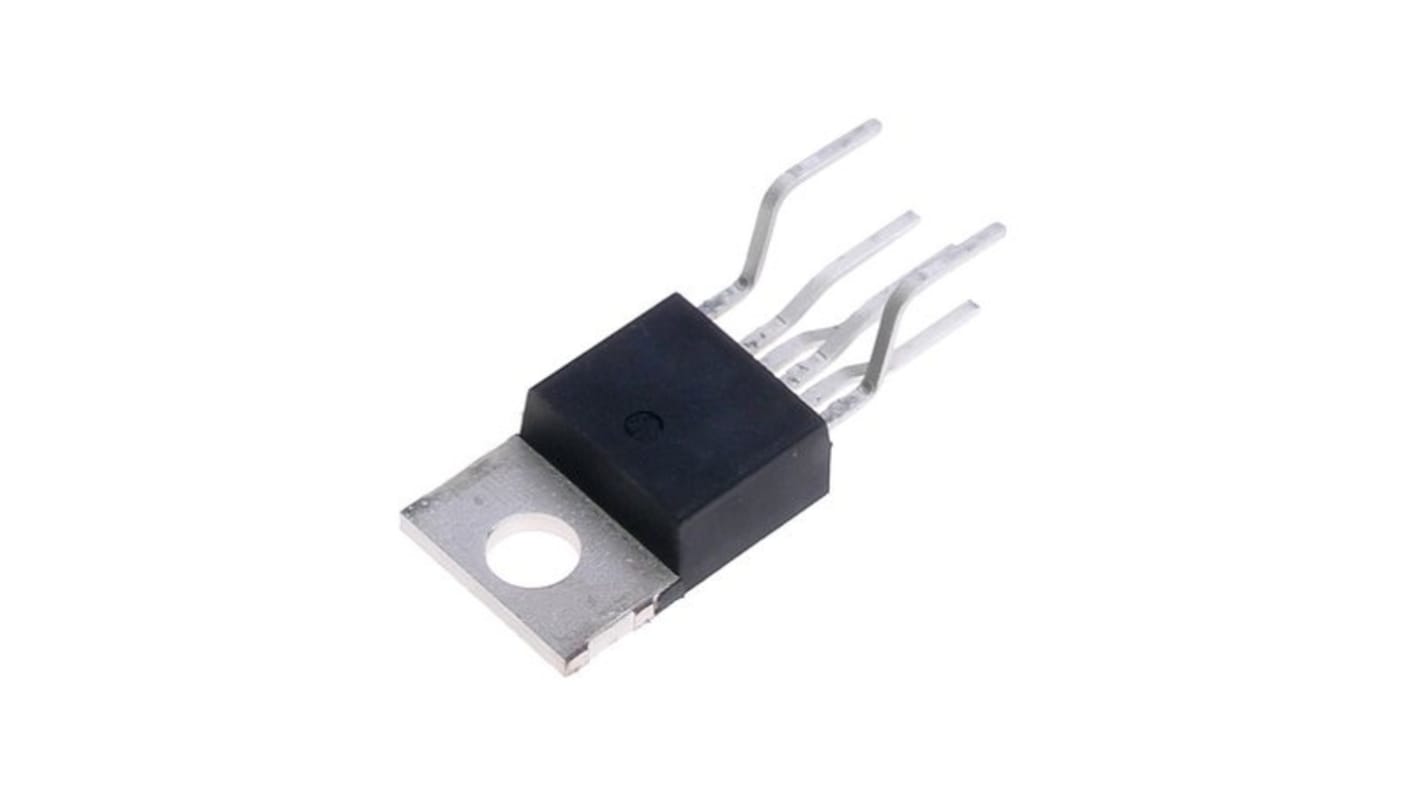

Power Integrations, AC/DC Converter 7-Pin, TO-220-7C
- RS Stock No.:
- 222-6836
- Mfr. Part No.:
- TOP256YN
- Brand:
- Power Integrations
Bulk discount available
Subtotal (1 tube of 50 units)*
£93.10
(exc. VAT)
£111.70
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 6,250 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 50 - 50 | £1.862 | £93.10 |
| 100 - 950 | £1.536 | £76.80 |
| 1000 + | £1.304 | £65.20 |
*price indicative
- RS Stock No.:
- 222-6836
- Mfr. Part No.:
- TOP256YN
- Brand:
- Power Integrations
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Power Integrations | |
| Maximum Input Voltage | 265V | |
| Product Type | AC/DC Converter | |
| Output Power | 119W | |
| Mount Type | Through Hole | |
| Switching Frequency | 132kHz | |
| Pin Count | 7 | |
| Package Type | TO-220-7C | |
| Minimum Input Voltage | 85V | |
| Topology | Flyback | |
| Maximum Duty Cycle | 78% | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 150°C | |
| Series | TOPSwitch-HX | |
| Length | 10.67mm | |
| Height | 12.57mm | |
| Standards/Approvals | RoHS | |
| Automotive Standard | No | |
| Supply Current | 1mA | |
| Select all | ||
|---|---|---|
Brand Power Integrations | ||
Maximum Input Voltage 265V | ||
Product Type AC/DC Converter | ||
Output Power 119W | ||
Mount Type Through Hole | ||
Switching Frequency 132kHz | ||
Pin Count 7 | ||
Package Type TO-220-7C | ||
Minimum Input Voltage 85V | ||
Topology Flyback | ||
Maximum Duty Cycle 78% | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 150°C | ||
Series TOPSwitch-HX | ||
Length 10.67mm | ||
Height 12.57mm | ||
Standards/Approvals RoHS | ||
Automotive Standard No | ||
Supply Current 1mA | ||
The Power Integrations TOP256YN is a Enhanced Eco Smart Integrated offline switcher with advanced feature set and extended power range power MOSFET, high voltage switched current source, PWM control, oscillator, thermal shutdown circuit, fault protection and other control circuitry onto a monolithic device. The Y packages have the F pin removed to improve the noise immunity.
Is energy efficient over entire load range
Has lower system cost
Has high density flexibility
