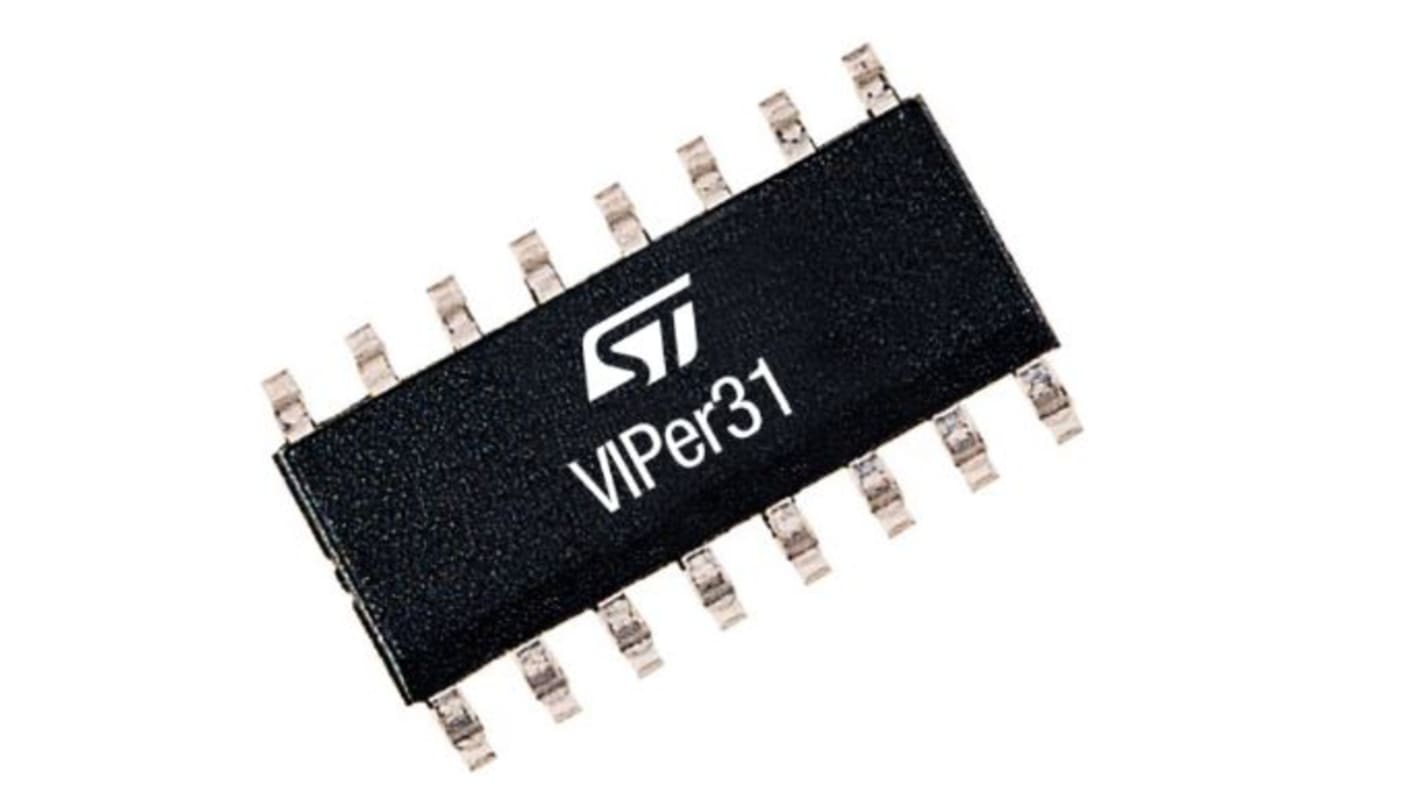

STMicroelectronics, High Voltage Switcher 2 A 16-Pin, SOP-16 VIPER317LDTR

View all AC-DC Converters
Bulk discount available

Subtotal (1 pack of 10 units)*

£6.70

(exc. VAT)

£8.00

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible - Please check back later

Units
Per unit
Per Pack*
10 - 40£0.67£6.70
50 - 90£0.659£6.59
100 - 240£0.651£6.51
250 - 990£0.643£6.43
1000 +£0.636£6.36

*price indicative

Packaging Options:
RS Stock No.:
215-5545
Mfr. Part No.:
VIPER317LDTR
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Product Type

High Voltage Switcher

Maximum Input Voltage

265V

Mount Type

Surface

Switching Frequency

15kHz

Pin Count

16

Maximum Output Current

2A

Package Type

SOP-16

Minimum Input Voltage

85V

Topology

Flyback

Maximum Duty Cycle

80%

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

150°C

Length

9.9mm

Series

VIPER31

Standards/Approvals

RoHS

Height

6mm

Supply Current

2mA

Automotive Standard

No

The STMicroelectronics VIPER31 device is a high-voltage converter that smartly integrates an 800 V avalanche rugged power MOSFET with PWM current-mode control. The 800 V breakdown allows extended input voltage range to be applied, as well as to reduce the size of the DRAIN snubber circuit. The IC can meet the most stringent energy-saving standards as it has very low consumption and operates in pulse frequency modulation at light load.

Built-in soft-start for improved system reliability

Protections with automatic restart

Embedded HV start-up and sense FET

Current mode PWM controller
