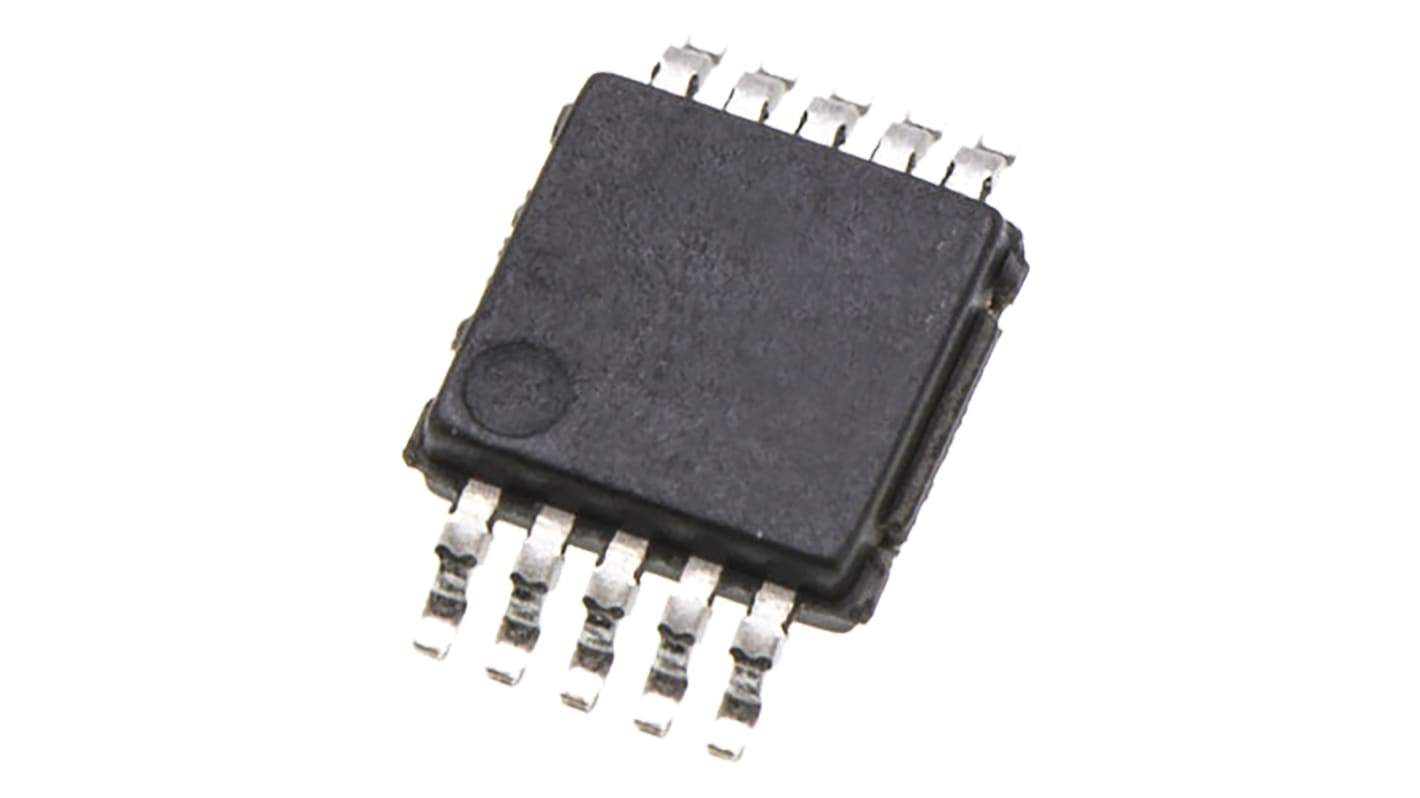

STMicroelectronics, High Voltage Switcher, Maximum of 5 V 10-Pin, SSOP VIPER011XSTR
- RS Stock No.:
- 178-5105
- Mfr. Part No.:
- VIPER011XSTR
- Brand:
- STMicroelectronics
This product is currently unavailable to backorder.
Unfortunately, we don’t have this product in stock and it’s not available to backorder at this time.
Added
Price Each (On a Reel of 2500)
£0.463
(exc. VAT)
£0.556
(inc. VAT)
| Units | Per unit | Per Reel* |
| 2500 + | £0.463 | £1,157.50 |
| *price indicative | ||
- RS Stock No.:
- 178-5105
- Mfr. Part No.:
- VIPER011XSTR
- Brand:
- STMicroelectronics
Technical Reference
Legislation and Compliance
Product Details
VIPerPlus High-Voltage Off-Line Converters, STMicroelectronics
The VIPerPlus series of high-voltage converters combine an 800V avalanche-rugged MOSFET, that allows ultra-wide range mains voltage input, with a leading-edge PWM controller. VIPerPlus fixed frequency off-line converters enable SMPS designs meeting the most demanding energy saving regulations with enhanced reliability and scalability. It also comes with the largest choice of protection schemes and supports different topologies.
AC/DC Converters, STMicroelectronics
Specifications
Attribute | Value |
|---|---|
| Maximum Input Voltage | 30 V |
| Maximum Output Voltage | 5 V |
| Mounting Type | Surface Mount |
| Pin Count | 10 |
| Dimensions | 5 x 4 x 1.5mm |
| Package Type | SSOP |
| Input Voltage Range | 4.5 → 30 V |
| Current Limit | 126mA |
| Minimum Input Voltage | 4.5 V |
| Maximum Operating Temperature | +150 °C |
| Length | 5mm |
| Width | 4mm |
| Height | 1.5mm |
| Minimum Operating Temperature | -40 °C |
| Output Voltage Range | Maximum of 5 V |
| Operating Temperature Range | -40 → +150 °C |
- RS Stock No.:
- 178-5105
- Mfr. Part No.:
- VIPER011XSTR
- Brand:
- STMicroelectronics
