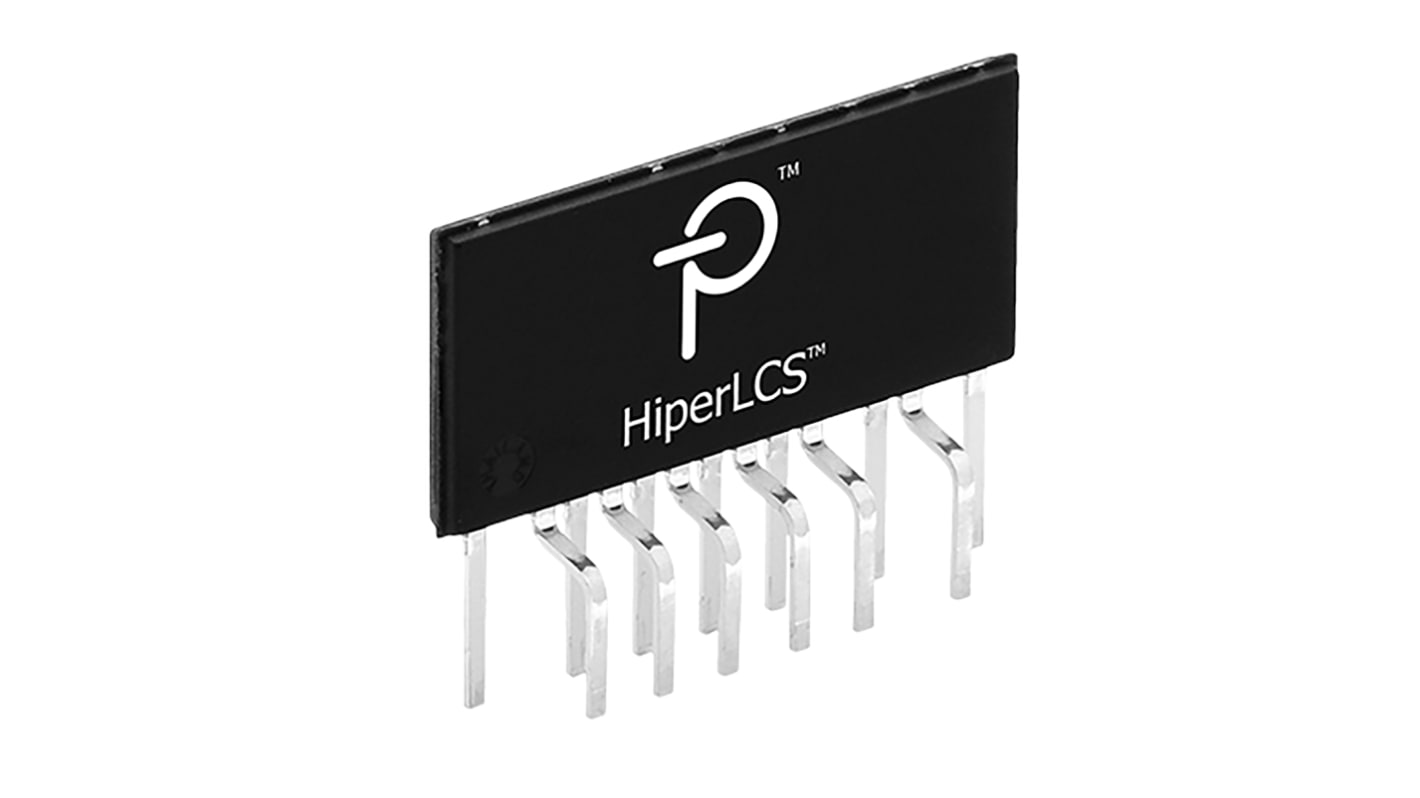

Power Integrations, AC/DC Converter 19.3 A, 530V, -1.3 V 13-Pin, eSIP-16J LCS705HG
- RS Stock No.:
- 146-2497
- Mfr. Part No.:
- LCS705HG
- Brand:
- Power Integrations
Subtotal (1 tube of 30 units)*
£128.10
(exc. VAT)
£153.60
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 510 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 30 + | £4.27 | £128.10 |
*price indicative
- RS Stock No.:
- 146-2497
- Mfr. Part No.:
- LCS705HG
- Brand:
- Power Integrations
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Power Integrations | |
| Product Type | AC/DC Converter | |
| Maximum Input Voltage | 15V | |
| Maximum Output Voltage | 530V | |
| Mount Type | Through Hole | |
| Output Power | 350W | |
| Switching Frequency | 800kHz | |
| Pin Count | 13 | |
| Maximum Output Current | 19.3A | |
| Package Type | eSIP-16J | |
| Minimum Input Voltage | 11.4V | |
| Topology | LLC Half Bridge | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 150°C | |
| Length | 16.59mm | |
| Width | 2.06mm | |
| Series | HiperLCS | |
| Standards/Approvals | No | |
| Height | 8.25mm | |
| Minimum Output Voltage | -1.3V | |
| Automotive Standard | No | |
| Supply Current | 5.4mA | |
| Select all | ||
|---|---|---|
Brand Power Integrations | ||
Product Type AC/DC Converter | ||
Maximum Input Voltage 15V | ||
Maximum Output Voltage 530V | ||
Mount Type Through Hole | ||
Output Power 350W | ||
Switching Frequency 800kHz | ||
Pin Count 13 | ||
Maximum Output Current 19.3A | ||
Package Type eSIP-16J | ||
Minimum Input Voltage 11.4V | ||
Topology LLC Half Bridge | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 150°C | ||
Length 16.59mm | ||
Width 2.06mm | ||
Series HiperLCS | ||
Standards/Approvals No | ||
Height 8.25mm | ||
Minimum Output Voltage -1.3V | ||
Automotive Standard No | ||
Supply Current 5.4mA | ||
- COO (Country of Origin):
- CN
HiperLCS Family of LLC AC-DC Converters
The Power Integrations HiperLCS family of integrated AC-DC Converters utilise a resonant half bridge LLC topology to implement a high-efficiency offline converter in a Compact SIP package. These devices incorporate a multi-function controller, high-side and low-side gate drivers, Plus two power MOSFETs in a half-bridge configuration and are suitable for power supply designs of up to 400W. The high level of integration minimizes the external component count and reduces PCB layout area as well as simplifying power supply design.
• High maximum operating frequency of 1 MHz
• Nominal steady-state operation up to 500 kHz
• Programmable brown-in/out thresholds and hysteresis
• Under-voltage and over-voltage protection
• Programmable over-current protection
• Short-circuit protection
• Over-temperature protection
• Programmable soft-start time and delay before soft-start
• Simple single-clip attachment to heat sink
