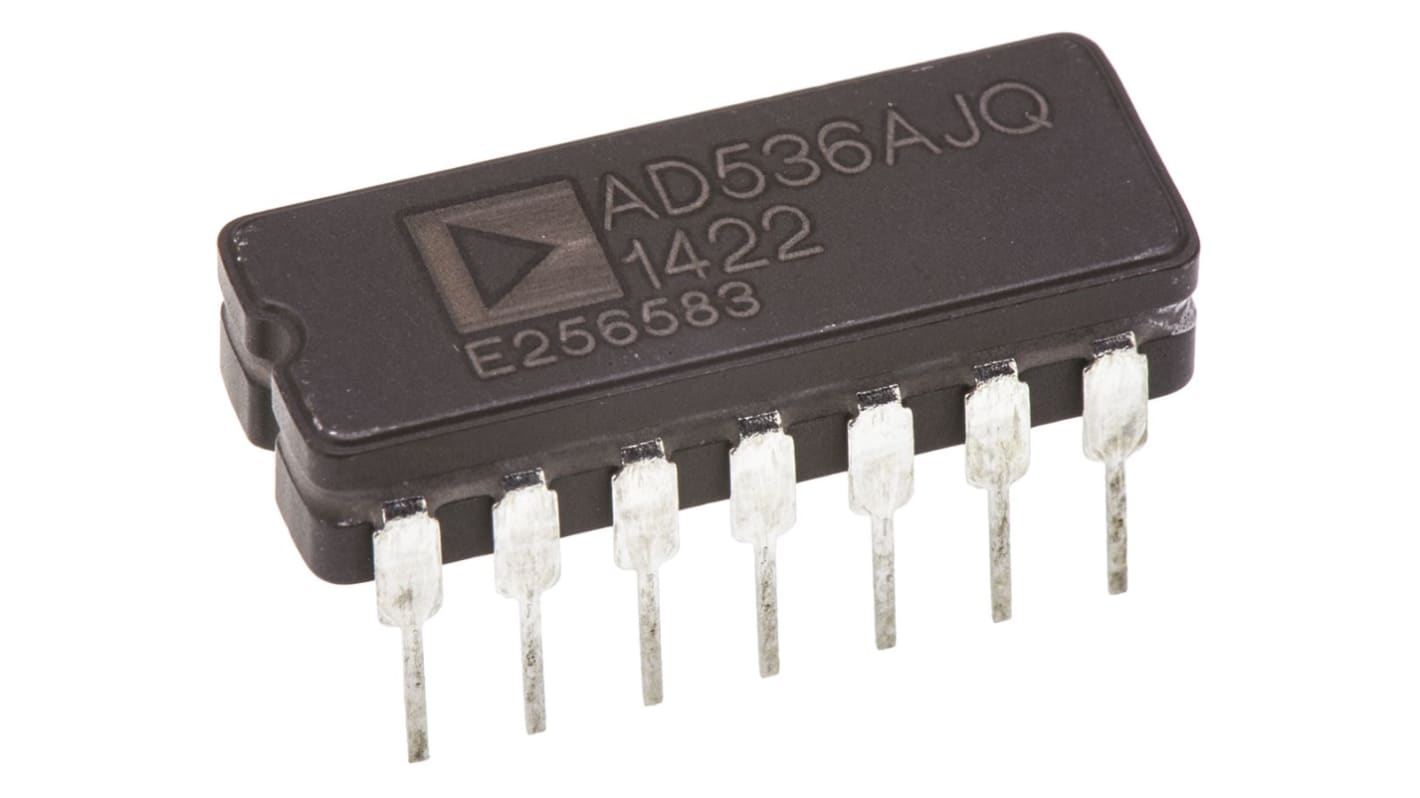

Analog Devices, True RMS-DC Converter 14-Pin, CDIP AD536AJQ
- RS Stock No.:
- 308-786
- Mfr. Part No.:
- AD536AJQ
- Brand:
- Analog Devices
Bulk discount available
Subtotal (1 unit)*
£15.23
(exc. VAT)
£18.28
(inc. VAT)
Stock information currently inaccessible
Units | Per unit |
|---|---|
| 1 - 12 | £15.23 |
| 13 + | £13.96 |
*price indicative
- RS Stock No.:
- 308-786
- Mfr. Part No.:
- AD536AJQ
- Brand:
- Analog Devices
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Analog Devices | |
| Mounting Type | Through Hole | |
| Pin Count | 14 | |
| Dimensions | 19.94 x 7.87 x 3.56mm | |
| Package Type | CDIP | |
| Maximum Operating Temperature | +70 °C | |
| Length | 19.94mm | |
| Width | 7.87mm | |
| Height | 3.56mm | |
| Minimum Operating Temperature | 0 °C | |
| Operating Temperature Range | 0 → +70 °C | |
| Output Current Range | 5 mA | |
| Minimum Output Current | 5mA | |
Select all | ||
|---|---|---|
Brand Analog Devices | ||
Mounting Type Through Hole | ||
Pin Count 14 | ||
Dimensions 19.94 x 7.87 x 3.56mm | ||
Package Type CDIP | ||
Maximum Operating Temperature +70 °C | ||
Length 19.94mm | ||
Width 7.87mm | ||
Height 3.56mm | ||
Minimum Operating Temperature 0 °C | ||
Operating Temperature Range 0 → +70 °C | ||
Output Current Range 5 mA | ||
Minimum Output Current 5mA | ||
Non Compliant
RMS to DC Converters, Analog Devices
A range of true RMS to DC Converters from Analog Devices. These products provide integrated circuit solutions to the requirement to accurately measure the true RMS level of complex AC or DC signals. Many of the devices have an additional logarithmic dB output making them ideally suited to audio applications.
