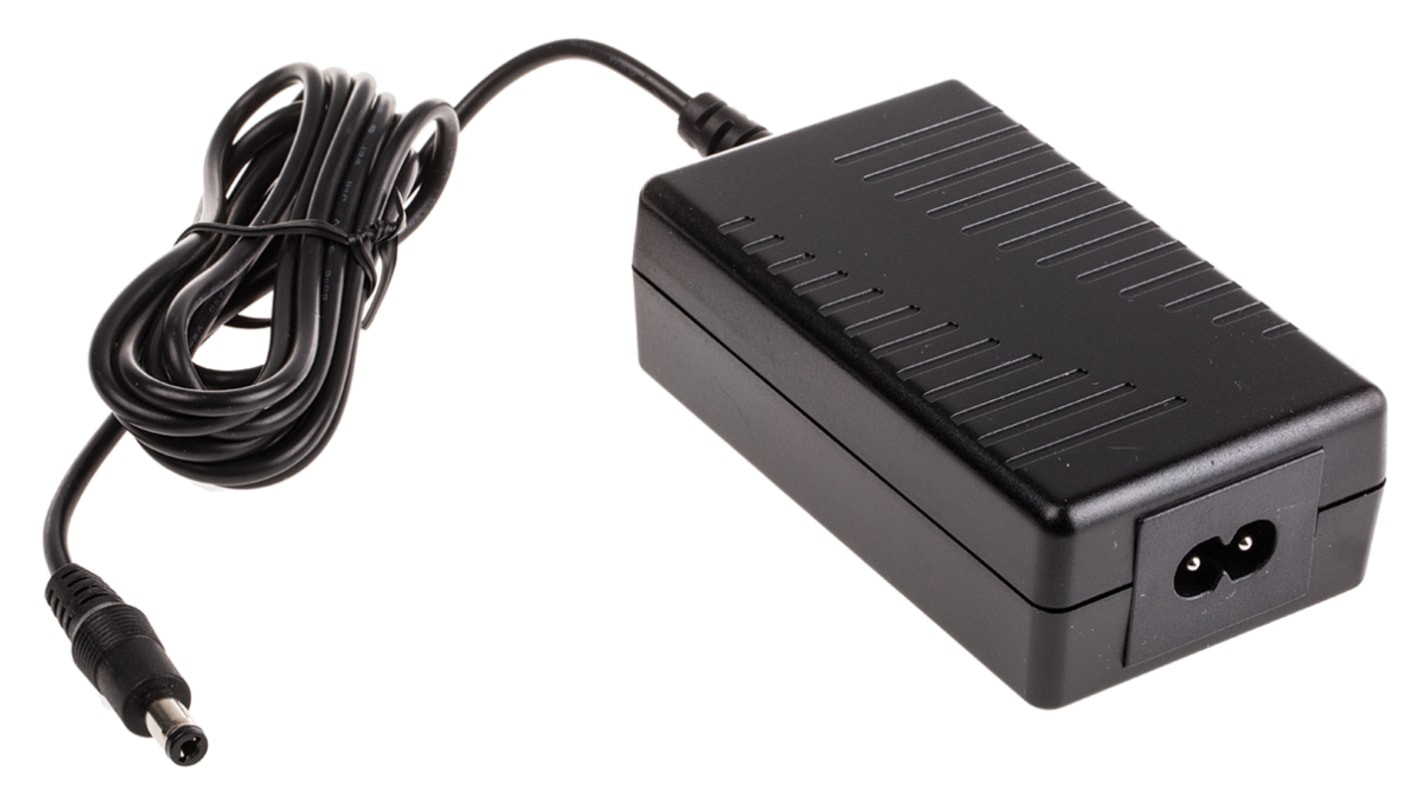

MEAN WELL Power Brick AC/DC Adapter 9V dc Output, 1.66A Output
- RS Stock No.:
- 721-2112
- Mfr. Part No.:
- GS15B-2P1J
- Brand:
- MEAN WELL
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£16.43
(exc. VAT)
£19.72
(inc. VAT)
- RS Stock No.:
- 721-2112
- Mfr. Part No.:
- GS15B-2P1J
- Brand:
- MEAN WELL
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MEAN WELL | |
| Adapter Type | Power Brick Adapter | |
| Output Voltage | 9V dc | |
| Input Voltage | 100 → 240V ac | |
| Output Current | 1.66A | |
| Maximum Temperature | +50°C | |
| Output Connector | 2.1 x 5.5 x 11 mm Centre Positive | |
| Input Connector | IEC 320-C8 | |
| Number of Outputs | 1 | |
| Cable Length | 1830mm | |
| Standards Met | ErP Compliant | |
| MTBF | 500000h | |
| Efficiency | 80% | |
| Energy Efficiency Level | V | |
| Depth | 32.8mm | |
| Load Regulation | ±5% | |
| Width | 58.5mm | |
| Minimum Temperature | 0°C | |
| Line Regulation Range | ±0.5% | |
| Length | 100mm | |
Select all | ||
|---|---|---|
Brand MEAN WELL | ||
Adapter Type Power Brick Adapter | ||
Output Voltage 9V dc | ||
Input Voltage 100 → 240V ac | ||
Output Current 1.66A | ||
Maximum Temperature +50°C | ||
Output Connector 2.1 x 5.5 x 11 mm Centre Positive | ||
Input Connector IEC 320-C8 | ||
Number of Outputs 1 | ||
Cable Length 1830mm | ||
Standards Met ErP Compliant | ||
MTBF 500000h | ||
Efficiency 80% | ||
Energy Efficiency Level V | ||
Depth 32.8mm | ||
Load Regulation ±5% | ||
Width 58.5mm | ||
Minimum Temperature 0°C | ||
Line Regulation Range ±0.5% | ||
Length 100mm | ||
- COO (Country of Origin):
- CN
Meanwell 12W to 25W ErP Single Output Switch Mode Desktop Power Supply - GS15B, GS18B, GS25B Series
Energy saving, class 2, switch mode, desk-top power supplies
High efficiency, long life and high reliability
ErP level V, step 2 compliant
No load power consumption <0.3W
Meet EISA 2007 (Energy Independence and Security Act)
Short circuit, over load and over voltage protection
2-pin IEC320, C8 input socket. For suitable input leads see stk nos. 452-669 (UK 3-pin plug) or 321-203 (Schuko plug) typically
Approximately 1.2m output lead fitted with a centre positive 2.1mm jack plug
EMC compliance to FCC part 15, EN55022 class B
Harmonic compliance to EN 61000-3-2,3
High efficiency, long life and high reliability
ErP level V, step 2 compliant
No load power consumption <0.3W
Meet EISA 2007 (Energy Independence and Security Act)
Short circuit, over load and over voltage protection
2-pin IEC320, C8 input socket. For suitable input leads see stk nos. 452-669 (UK 3-pin plug) or 321-203 (Schuko plug) typically
Approximately 1.2m output lead fitted with a centre positive 2.1mm jack plug
EMC compliance to FCC part 15, EN55022 class B
Harmonic compliance to EN 61000-3-2,3
Note
Conforms to Energy-related Product Directive 2009/125/EC.
Power derates above 40°C.
MTBF to MIL-HDBK-217F.
Power derates above 40°C.
MTBF to MIL-HDBK-217F.
Standards
UL60950-1, CSA C22.2, TUV EN60950-1
Approvals
UL/cUL recognised, TUV, CB
