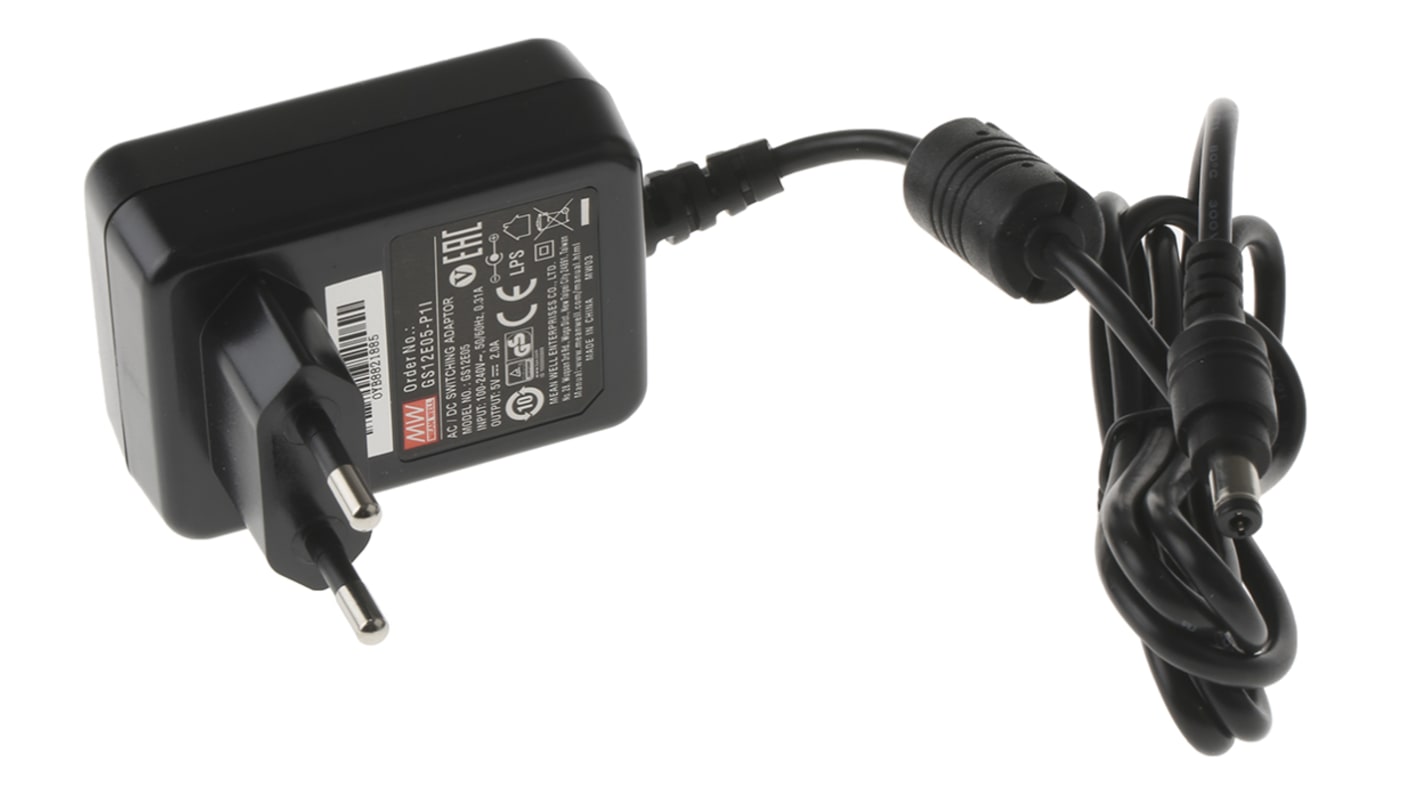

MEAN WELL 10W Plug In Power Supply 5V dc Output, 2A Output
- RS Stock No.:
- 721-2064
- Mfr. Part No.:
- GS12E05-P1I
- Brand:
- Mean Well
Unavailable
RS will no longer stock this product.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£11.87
(exc. VAT)
£14.24
(inc. VAT)
- RS Stock No.:
- 721-2064
- Mfr. Part No.:
- GS12E05-P1I
- Brand:
- Mean Well
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Mean Well | |
| Plug Type | Type C | |
| Output Voltage | 5V dc | |
| Input Voltage | 100 V ac, 110 V ac, 115 V ac, 120 V ac, 127 V ac, 220 V ac, 230 V ac, 240 V ac | |
| Output Current | 2A | |
| Maximum Temperature | +50°C | |
| Output Connector | 2.1 x 5.5 x 9.5 mm Centre Positive | |
| Input Connector | EU Plug | |
| Number of Outputs | 1 | |
| Power Rating | 10W | |
| Cable Length | 1.23m | |
| Standards Met | ErP Compliant | |
| MTBF | 141460h | |
| Width | 47mm | |
| Type | Switched Mode Power Supply | |
| Load Regulation | ±5% | |
| Energy Efficiency Level | V | |
| Minimum Temperature | 0°C | |
| Depth | 26.5mm | |
| Length | 65mm | |
| Select all | ||
|---|---|---|
Brand Mean Well | ||
Plug Type Type C | ||
Output Voltage 5V dc | ||
Input Voltage 100 V ac, 110 V ac, 115 V ac, 120 V ac, 127 V ac, 220 V ac, 230 V ac, 240 V ac | ||
Output Current 2A | ||
Maximum Temperature +50°C | ||
Output Connector 2.1 x 5.5 x 9.5 mm Centre Positive | ||
Input Connector EU Plug | ||
Number of Outputs 1 | ||
Power Rating 10W | ||
Cable Length 1.23m | ||
Standards Met ErP Compliant | ||
MTBF 141460h | ||
Width 47mm | ||
Type Switched Mode Power Supply | ||
Load Regulation ±5% | ||
Energy Efficiency Level V | ||
Minimum Temperature 0°C | ||
Depth 26.5mm | ||
Length 65mm | ||
Mean Well Power Supply
The Mean well power supply has a regulated output voltage of 5VDC. It supports numerous applications due to a wide input voltage range up to 230VAC. It supports numerous applications due to a wide range of input (90-264V AC) that complies with the universal standard. This 2-pin Euro plug power supply is a class II power unit that comes in a fully enclosed plastic case.
Note:
Conforms to energy-related product directive 2009/125/EC.
Note:
Conforms to energy-related product directive 2009/125/EC.
Features and Benefits
No load power consumption is less than 0.3W
ErP level V
Overload, overvoltage and short-circuit protection
Output lead is 1m long and fitted with a centre positive 2.1mm jack plug
Output current is 2A
Power rating is 10W
Efficiency is 76%
Pass LPS for full series
ErP level V
Overload, overvoltage and short-circuit protection
Output lead is 1m long and fitted with a centre positive 2.1mm jack plug
Output current is 2A
Power rating is 10W
Efficiency is 76%
Pass LPS for full series
Certifications
EN 61000-3-2,3 (harmonic compliance)
EMC compliance to FCC part 15
EN55022 class B
Class II power (without earth pin)
EISA 2007 (energy independence and security act)
TUV approved
CB approved
CE certified
EN60950-1
EMC compliance to FCC part 15
EN55022 class B
Class II power (without earth pin)
EISA 2007 (energy independence and security act)
TUV approved
CB approved
CE certified
EN60950-1
