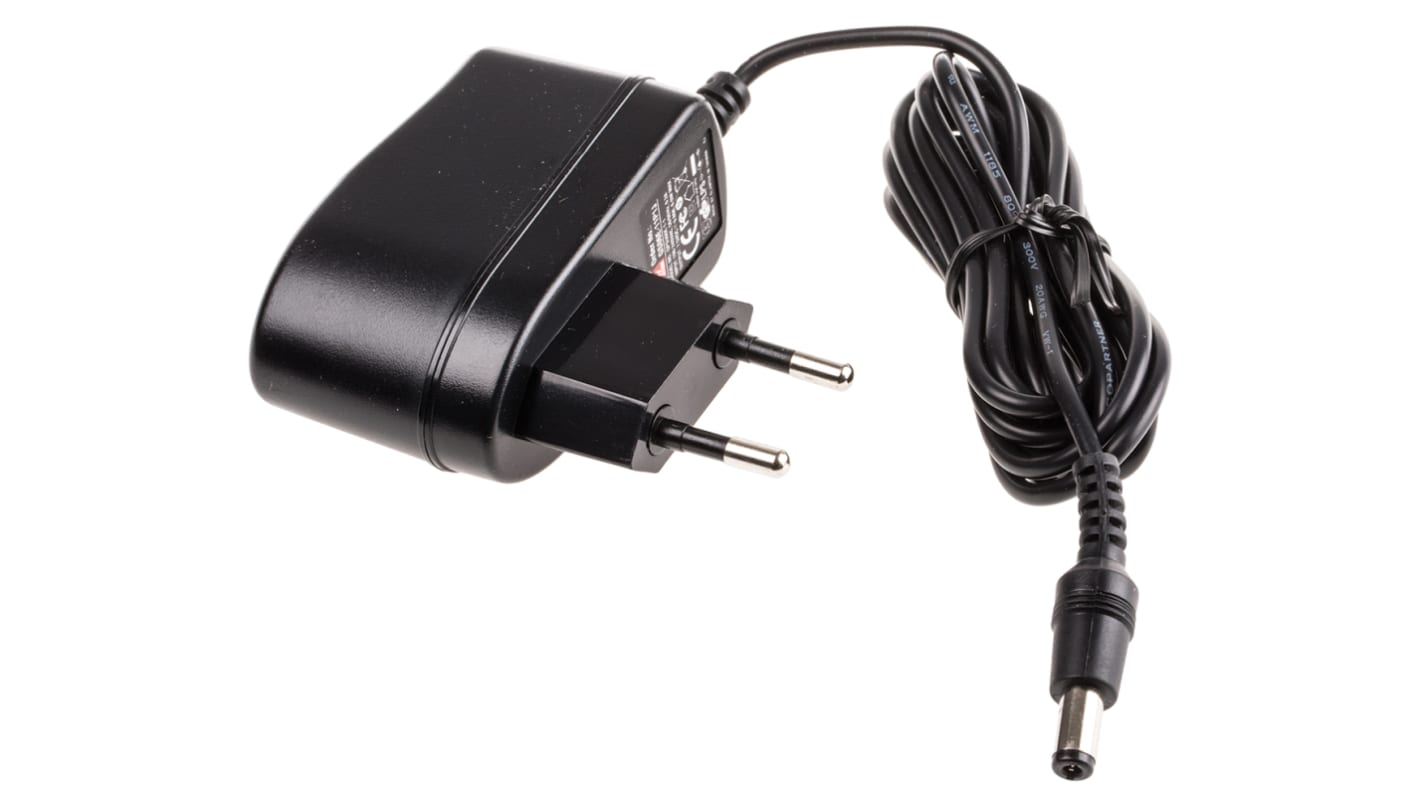

MEAN WELL 6W Plug-In AC/DC Adapter 7.5V dc Output, 800mA Output
- RS Stock No.:
- 721-2033
- Mfr. Part No.:
- GS06E-11P1J
- Brand:
- MEAN WELL
74 In stock - FREE next working day delivery available
3 available from Europe for delivery within 1 working day(s).
Added
Price Each
£12.00
(exc. VAT)
£14.40
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £12.00 |
| 5 - 9 | £11.64 |
| 10 - 24 | £11.28 |
| 25 - 49 | £10.92 |
| 50 + | £10.56 |
- RS Stock No.:
- 721-2033
- Mfr. Part No.:
- GS06E-11P1J
- Brand:
- MEAN WELL
Technical Reference
Legislation and Compliance
Product Details
2-Pin Euro Power Supply, ErP, Energy Saving, 5W to 36W
The Mean Well GSxxE series offers power adapters with low no load power consumption ˂0.3W, this plug in power supply also complies with energy saving regulations, such as ErP step 2 and EISA 2007. The Mean Well 2 pin Euro plug power supply is a class II power unit and comes in a fully enclosed plastic case. The GSxxE has TUV, CB and CE certificates, which guarantee the safety for different applications requiring low no load power consumption.
Energy saving power supplies with 2 pin Euro plug
ErP level V
No load power consumption< 0.3W
Meets EISA 2007 (Energy Independence and Security Act)
Class II power (without earth pin)
Overload, overvoltage and short circuit protection
Approximately 1m output lead fitted with a centre positive 2.1mm jack plug
EMC compliance to FCC part 15, EN55022 class B
Harmonic compliance to EN 61000-3-2,3
ErP level V
No load power consumption< 0.3W
Meets EISA 2007 (Energy Independence and Security Act)
Class II power (without earth pin)
Overload, overvoltage and short circuit protection
Approximately 1m output lead fitted with a centre positive 2.1mm jack plug
EMC compliance to FCC part 15, EN55022 class B
Harmonic compliance to EN 61000-3-2,3
Note
Conforms to Energy-related Product Directive 2009/125/EC.
Power derates above 40°C.
MTBF to MIL-HDBK-217F.
Power derates above 40°C.
MTBF to MIL-HDBK-217F.
Standards
EN60950-1
Approvals
TUV, CB
Switch Mode - Mean Well
Specifications
Attribute | Value |
|---|---|
| Adapter Type | Plug-In Adapter |
| Plug Type | Type C |
| Output Voltage | 7.5V dc |
| Input Voltage | 100 V ac, 110 V ac, 115 V ac, 120 V ac, 127 V ac, 220 V ac, 230 V ac, 240V ac |
| Output Current | 800mA |
| Maximum Temperature | +40°C |
| Output Connector | 2.1 x 5.5 x 11 mm Centre Positive |
| Input Connector | EU Plug |
| Number of Outputs | 1 |
| Power Rating | 6W |
| Cable Length | 1.83m |
| Standards Met | ErP Compliant |
| MTBF | 50000h |
| Load Regulation | ±5% |
| Minimum Temperature | 0°C |
| Depth | 62.5mm |
| Width | 32mm |
| Type | AC/DC Adapter |
| Length | 66mm |
| Energy Efficiency Level | V |
