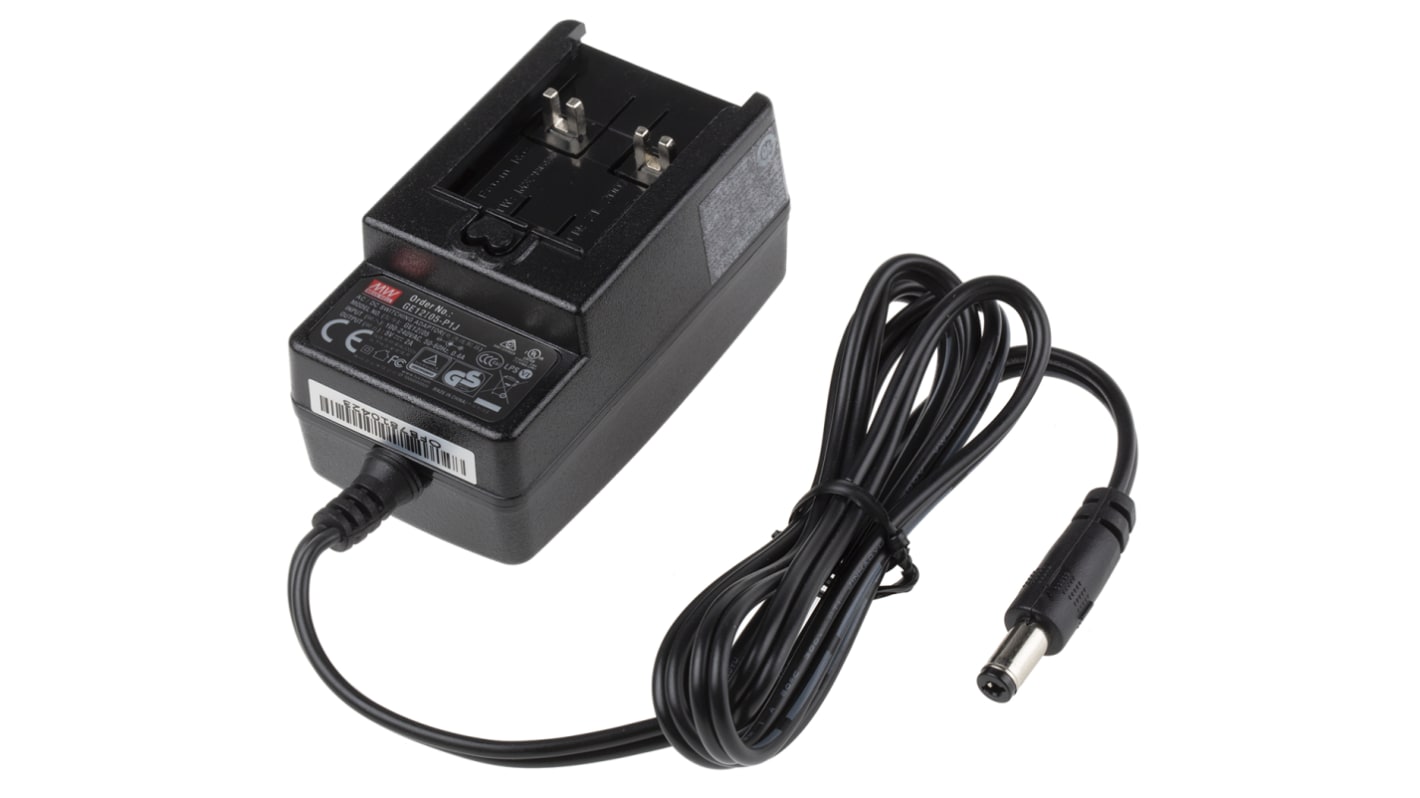

MEAN WELL 10W Plug-In AC/DC Adapter 5V dc Output, 2A Output

RS Stock No.:: 706-6451
Mfr. Part No.:: GE12I05-P1J
Brand:: MEAN WELL

MEAN WELL 10W Plug-In AC/DC Adapter 5V dc Output, 2A Output

227 In stock - FREE next working day delivery available

40 available from Europe for delivery within 2 working day(s).

Price Each

£21.43

(exc. VAT)

£25.72

(inc. VAT)

Units	Per unit
1 - 4	£21.43
5 - 9	£20.78
10 - 24	£20.14
25 - 49	£19.50
50 +	£18.86

RS Stock No.:: 706-6451
Mfr. Part No.:: GE12I05-P1J
Brand:: MEAN WELL

Technical Reference

Legislation and Compliance

Product Details

ErP Plug-In Travel Power Supply, Energy Saving, 10W to 24W

Plugs Not Included
Compatible plugs are:
• UK (1783436),
• Euro (1783437),
• US (1783438),
• Australian (1783435)
• Mixed plugs (1783439)

Features and Benefits
• Energy saving power supplies
• ErP level VI
• No load power consumption< 0.3W
• Meets EISA 2007 (Energy Independence and Security Act) for 5∼24V
• Class II power (without earth pin)
• Overload, overvoltage and short circuit protection
• LED power on indicator
• Output lead fitted with a centre positive 2.1mm jack plug
• EMC compliance to FCC part 15, EN55022 class B, GB9254 class B
• Harmonic compliance to EN 61000-3-2,3

Note

Conforms to Energy-related Product Directive 2009/125/EC.

Power derates above 30°C.
MTBF to MIL-HDBK-217F.

Standards

UL60950-1, CSA C22.2, TUV EN60950 -1, CCC GB4943

Approvals

TUV, CCC, UL recognised for Canada & US, C-Tick

Switch Mode - Mean Well

Specifications

Attribute	Value
Adapter Type	Plug-In Adapter
Plug Type	Australia/China, European Plug, UK, US/Japan
Output Voltage	5V dc
Input Voltage	100 V ac, 110 V ac, 115 V ac, 120 V ac, 127 V ac, 220 V ac, 230 V ac, 240V ac
Output Current	2A
Maximum Temperature	+50°C
Output Connector	2.1 x 5.5 x 11 mm Centre Positive
Input Connector	Universal Plug
Number of Outputs	1
Power Rating	10W
Cable Length	1m
MTBF	100000h
Standards Met	ErP Compliant
Minimum Temperature	-10°C
Energy Efficiency Level	VI
Depth	38.8mm
Load Regulation	±5%
Width	40mm
Type	AC/DC Adapter
Length	70.7mm
