EOS 60 W AC-DC Converter Power Supplies AC/DC Adapter 15V dc Output, 4 A
- RS Stock No.:
- 668-9264
- Mfr. Part No.:
- LFZVC60NP15E4
- Brand:
- EOS

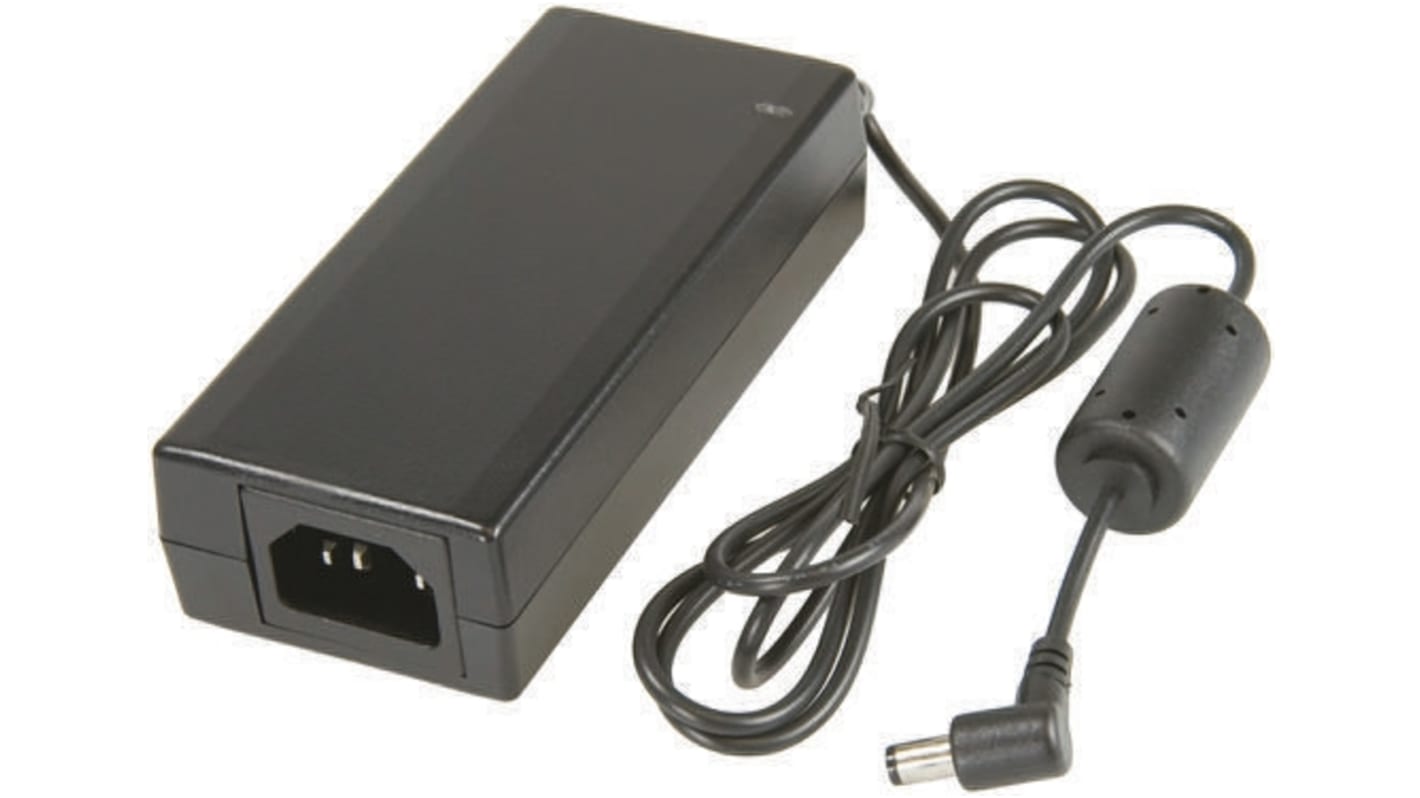

Image representative of range
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 668-9264
- Mfr. Part No.:
- LFZVC60NP15E4
- Brand:
- EOS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EOS | |
| Product Type | AC/DC Adapter | |
| Sub Type | AC-DC Converter Power Supplies | |
| Output Voltage | 15V dc | |
| Power | 60W | |
| Output Connector Type | Jack | |
| Cable Length | 1200mm | |
| Number of Outputs | 1 | |
| Minimum Operating Temperature | 0°C | |
| Regulated/Unregulated | Regulated | |
| Input Connector Type | IEC 320-C14 | |
| Adapter Current | 4A | |
| Maximum Operating Temperature | 50°C | |
| Depth | 31.5mm | |
| Length | 117mm | |
| Standards/Approvals | ErP Compliant | |
| Width | 53mm | |
| Maximum Input Voltage | 264V ac | |
| Efficiency | 85% | |
| Energy Efficiency Level | V | |
| Series | LFZVC60 | |
| Load Regulation | 5 % | |
| Minimum Input Voltage | 90V ac | |
| Select all | ||
|---|---|---|
Brand EOS | ||
Product Type AC/DC Adapter | ||
Sub Type AC-DC Converter Power Supplies | ||
Output Voltage 15V dc | ||
Power 60W | ||
Output Connector Type Jack | ||
Cable Length 1200mm | ||
Number of Outputs 1 | ||
Minimum Operating Temperature 0°C | ||
Regulated/Unregulated Regulated | ||
Input Connector Type IEC 320-C14 | ||
Adapter Current 4A | ||
Maximum Operating Temperature 50°C | ||
Depth 31.5mm | ||
Length 117mm | ||
Standards/Approvals ErP Compliant | ||
Width 53mm | ||
Maximum Input Voltage 264V ac | ||
Efficiency 85% | ||
Energy Efficiency Level V | ||
Series LFZVC60 | ||
Load Regulation 5 % | ||
Minimum Input Voltage 90V ac | ||
- COO (Country of Origin):
- IN
EOS 36W to 180W Single Output Switch Mode Desktop Power Supply - ZVC Series
36 to 180W energy saving switch mode single output desktop power supply with universal input and compact design. This energy saving switch mode single output desktop power supply is ideal for laptops and multimedia, industrial, networking and printing applications. This range of desktop power supplies includes versions that are suitable for use as either a laptop power supply, netbook power supply or notebook power supply.
Ultra miniature and lightweight switch mode power supply
Universal input
High efficiency, no load standby power < 0.5W
Fully regulated and protected output
EMI/RFI filter to EN55022-B, FCC2/15-B, CISPR22-B
Types ZVC36 to ZVC72 are fitted with a 1.2m output lead with right angled jack plug (I/D 2.54 x O/D 5.54 x L 9.5mm, centre pin positive)
Types ZVC150 & ZVC180 are fitted with a 1.2m output lead with a 4 pin DIN connector, for suitable mating connectors use stk nos 667-7283 and 667-7287
Note
Non Compliant For Industrial Use Only, not in scope of Regulation (EC) No 125/2009.
Current derates to 75% at 50°C
Current derates to 75% at 50°C
Approvals
UL, CSA
Standards
UL, TUV, EN60950-1
