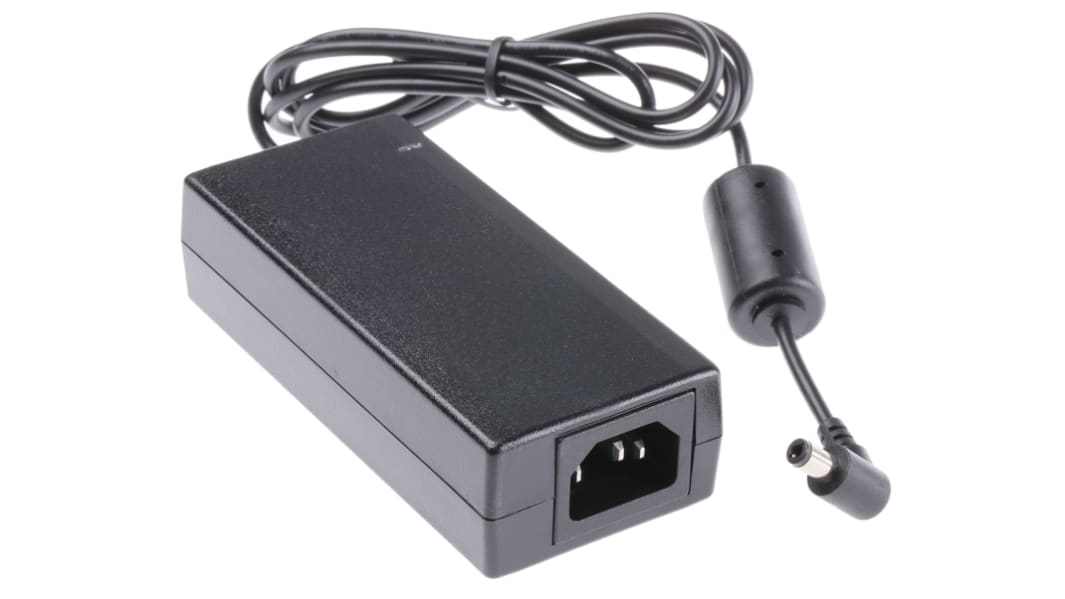

EOS 36 W Linear Power Supply AC/DC Adapter 12 V dc Output, 3 A
- RS Stock No.:
- 668-9242
- Mfr. Part No.:
- LFZVC36NP12E4
- Brand:
- EOS
Bulk discount available
Subtotal (1 unit)*
£57.33
(exc. VAT)
£68.80
(inc. VAT)
FREE delivery for orders over £50.00
Being discontinued
- Final 114 unit(s), ready to ship
Units | Per unit |
|---|---|
| 1 - 4 | £57.33 |
| 5 - 9 | £55.61 |
| 10 - 24 | £53.89 |
| 25 - 49 | £52.17 |
| 50 + | £50.45 |
*price indicative
- RS Stock No.:
- 668-9242
- Mfr. Part No.:
- LFZVC36NP12E4
- Brand:
- EOS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EOS | |
| Sub Type | Linear Power Supply | |
| Product Type | AC/DC Adapter | |
| Output Voltage | 12 V dc | |
| Output Connector Type | 2.54 x 5.54 x 9.5 mm Centre Positive - Right Angle Jack | |
| Power | 36W | |
| Cable Length | 1200mm | |
| Number of Outputs | 1 | |
| Regulated/Unregulated | Regulated | |
| Input Connector Type | IEC 320-C14 | |
| Minimum Operating Temperature | 0°C | |
| Adapter Current | 3A | |
| Maximum Operating Temperature | 50°C | |
| Length | 117mm | |
| Depth | 31.5mm | |
| Standards/Approvals | ErP Compliant | |
| Width | 53 mm | |
| Efficiency | 80% | |
| Maximum Input Voltage | 264V ac | |
| Load Regulation | 5 % | |
| Series | LFZVC36 | |
| Energy Efficiency Level | V | |
| Minimum Input Voltage | 90V ac | |
| Select all | ||
|---|---|---|
Brand EOS | ||
Sub Type Linear Power Supply | ||
Product Type AC/DC Adapter | ||
Output Voltage 12 V dc | ||
Output Connector Type 2.54 x 5.54 x 9.5 mm Centre Positive - Right Angle Jack | ||
Power 36W | ||
Cable Length 1200mm | ||
Number of Outputs 1 | ||
Regulated/Unregulated Regulated | ||
Input Connector Type IEC 320-C14 | ||
Minimum Operating Temperature 0°C | ||
Adapter Current 3A | ||
Maximum Operating Temperature 50°C | ||
Length 117mm | ||
Depth 31.5mm | ||
Standards/Approvals ErP Compliant | ||
Width 53 mm | ||
Efficiency 80% | ||
Maximum Input Voltage 264V ac | ||
Load Regulation 5 % | ||
Series LFZVC36 | ||
Energy Efficiency Level V | ||
Minimum Input Voltage 90V ac | ||
- COO (Country of Origin):
- IN
EOS 36W to 180W Single Output Switch Mode Desktop Power Supply - ZVC Series
36 to 180W energy saving switch mode single output desktop power supply with universal input and compact design. This energy saving switch mode single output desktop power supply is ideal for laptops and multimedia, industrial, networking and printing applications. This range of desktop power supplies includes versions that are suitable for use as either a laptop power supply, netbook power supply or notebook power supply.
Ultra miniature and lightweight switch mode power supply
Universal input
High efficiency, no load standby power < 0.5W
Fully regulated and protected output
EMI/RFI filter to EN55022-B, FCC2/15-B, CISPR22-B
Types ZVC36 to ZVC72 are fitted with a 1.2m output lead with right angled jack plug (I/D 2.54 x O/D 5.54 x L 9.5mm, centre pin positive)
Types ZVC150 & ZVC180 are fitted with a 1.2m output lead with a 4 pin DIN connector, for suitable mating connectors use stk nos 667-7283 and 667-7287
Note
Non Compliant For Industrial Use Only, not in scope of Regulation (EC) No 125/2009.
Current derates to 75% at 50°C
Current derates to 75% at 50°C
Approvals
UL, CSA
Standards
UL, TUV, EN60950-1
