RS PRO 12W AC/DC Adapter 3 to 12 V dc, Output, 500mA Output
- RS Stock No.:
- 615-8880
- Brand:
- RS PRO
Stock information currently inaccessible
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£13.50
(exc. VAT)
£16.20
(inc. VAT)
- RS Stock No.:
- 615-8880
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Plug Type | Type G - British 3-Pin | |
| Output Voltage | 3 V dc, 4.5 V dc, 6 V dc, 7.5 V dc, 9 V dc, 12 V dc | |
| Input Voltage | 230V ac | |
| Output Current | 500mA | |
| Maximum Temperature | +25°C | |
| Output Connector | Interchangeable | |
| Input Connector | UK Plug | |
| Number of Outputs | 1 | |
| Power Rating | 12W | |
| Regulated/Unregulated | Unregulated | |
| Cable Length | 1.8m | |
| Length | 92mm | |
| Type | Linear Power Supply | |
| Minimum Temperature | 0°C | |
| Depth | 46mm | |
| Width | 56mm | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Plug Type Type G - British 3-Pin | ||
Output Voltage 3 V dc, 4.5 V dc, 6 V dc, 7.5 V dc, 9 V dc, 12 V dc | ||
Input Voltage 230V ac | ||
Output Current 500mA | ||
Maximum Temperature +25°C | ||
Output Connector Interchangeable | ||
Input Connector UK Plug | ||
Number of Outputs 1 | ||
Power Rating 12W | ||
Regulated/Unregulated Unregulated | ||
Cable Length 1.8m | ||
Length 92mm | ||
Type Linear Power Supply | ||
Minimum Temperature 0°C | ||
Depth 46mm | ||
Width 56mm | ||
- COO (Country of Origin):
- CN
RS PRO 12W AC/DC Adapters

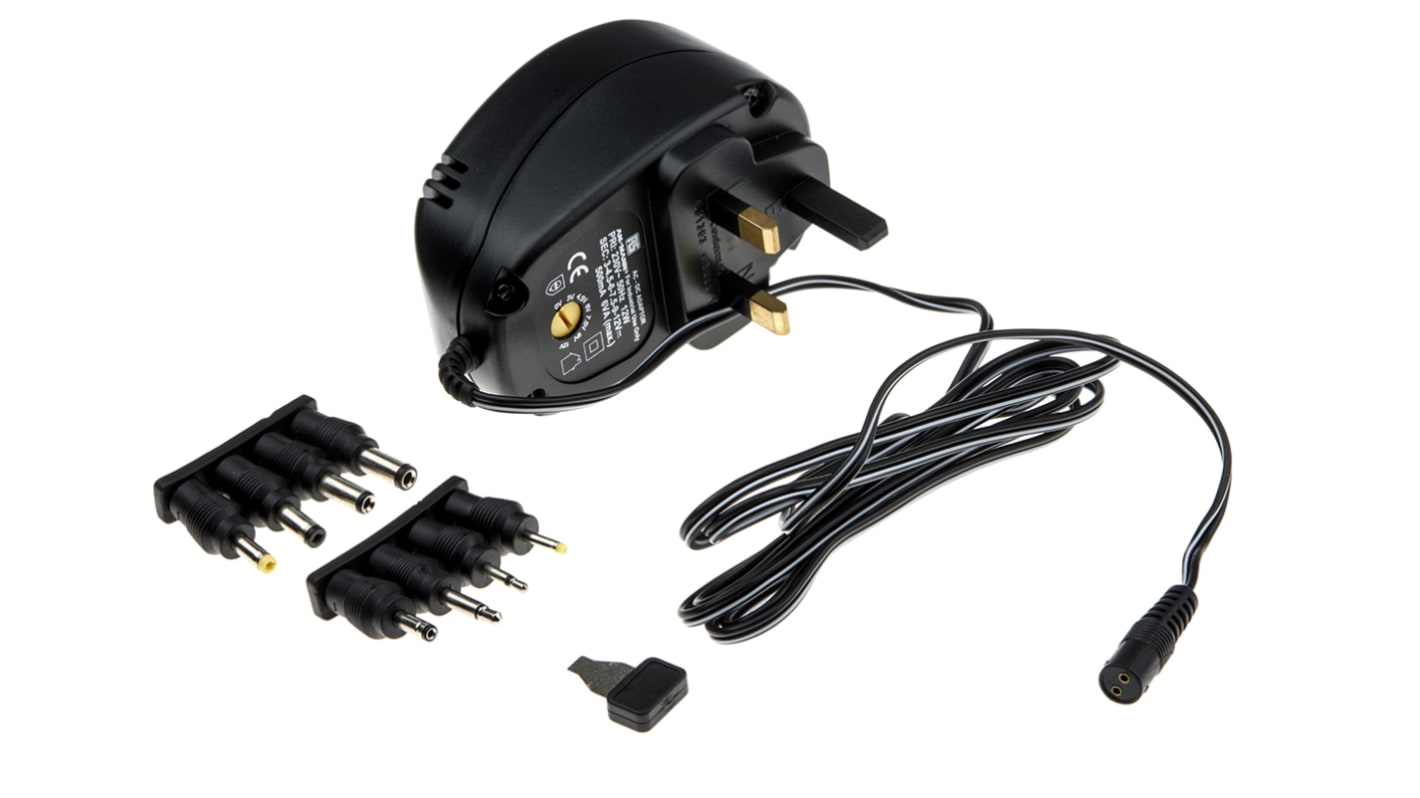

From RS Pro a high quality and versatile plug-in AC-DC adapter for converting AC mains current into DC voltage for a wide range of DC applications. This adapter has a 3 pin plug for use with UK mains power and features 6 selectable output voltages from 3V DC to 12V DC. These voltages are selected by turning a recessed rotary switch on the back of the adapter. This AC adapter is supplied with 8 different output connectors consisting of jack plugs and hollow barrel connectors that allow it to be used with a wide range of products.
Features and Benefits
This AC DC adapter has the following features and benefits:
6 x Selectable output voltage ranges from 3V to 12V DC
12W power rating
Supplied with 8 output connectors
Class II double insulated
Power LED indication
Thermal fuse protection
1.8 m cable length
Reverse polarity coupling
