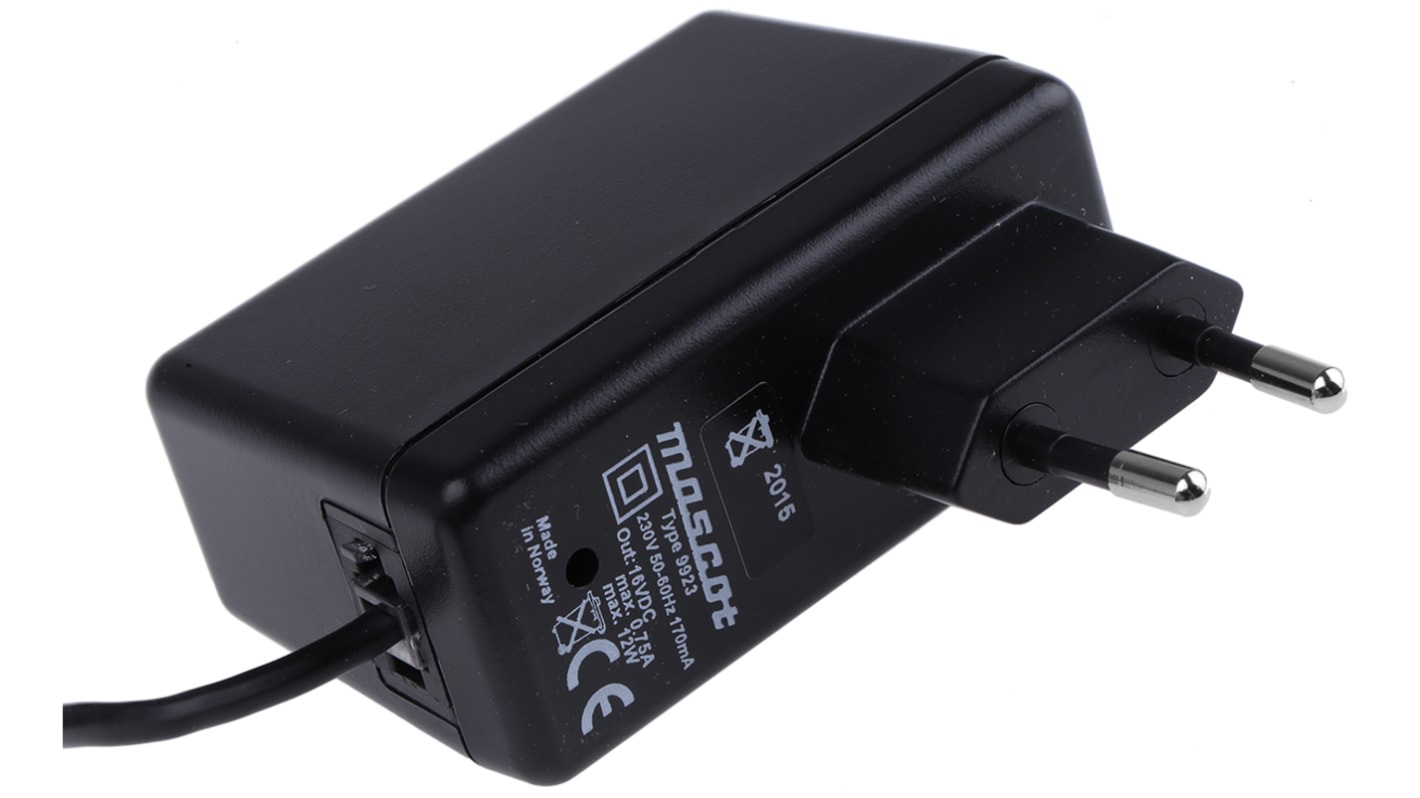

Mascot 12W Plug-In AC/DC Adapter 16V dc Output, 750mA Output
- RS Stock No.:
- 425-3911
- Mfr. Part No.:
- 9923000046
- Brand:
- Mascot
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£33.24
(exc. VAT)
£39.89
(inc. VAT)
- RS Stock No.:
- 425-3911
- Mfr. Part No.:
- 9923000046
- Brand:
- Mascot
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Mascot | |
Adapter Type | Plug-In Adapter | |
Plug Type | Type C | |
Output Voltage | 16V dc | |
Input Voltage | 220 V ac, 230 V ac, 240V ac | |
Output Current | 750mA | |
Maximum Temperature | +40°C | |
Output Connector | Interchangeable | |
Input Connector | EU Plug | |
Number of Outputs | 1 | |
Power Rating | 12W | |
Cable Length | 1.5m | |
Length | 75mm | |
Type | AC/DC Adapter | |
Depth | 50mm | |
Minimum Temperature | -10°C | |
Width | 32mm | |
Load Regulation | ±1% | |
Select all | ||
---|---|---|
Brand Mascot | ||
Adapter Type Plug-In Adapter | ||
Plug Type Type C | ||
Output Voltage 16V dc | ||
Input Voltage 220 V ac, 230 V ac, 240V ac | ||
Output Current 750mA | ||
Maximum Temperature +40°C | ||
Output Connector Interchangeable | ||
Input Connector EU Plug | ||
Number of Outputs 1 | ||
Power Rating 12W | ||
Cable Length 1.5m | ||
Length 75mm | ||
Type AC/DC Adapter | ||
Depth 50mm | ||
Minimum Temperature -10°C | ||
Width 32mm | ||
Load Regulation ±1% | ||
9923 series serial plug-in adapter
Plug-in switch mode power supplies delivering a maximum 12 W (9 W for 7.5 V version).
Extremely compact, and weighing just 80 g.
Choose from 5 different output voltages: 7.5 V; 9 V; 12 V; 16 V; 24 V.
Output connector lead approx. 1.5 m long with a 2.1 mm internal diameter connector (+ inside).
Extremely compact, and weighing just 80 g.
Choose from 5 different output voltages: 7.5 V; 9 V; 12 V; 16 V; 24 V.
Output connector lead approx. 1.5 m long with a 2.1 mm internal diameter connector (+ inside).
Note
Non Compliant For Industrial Use Only, not in scope of Regulation (EC) No 125/2009
