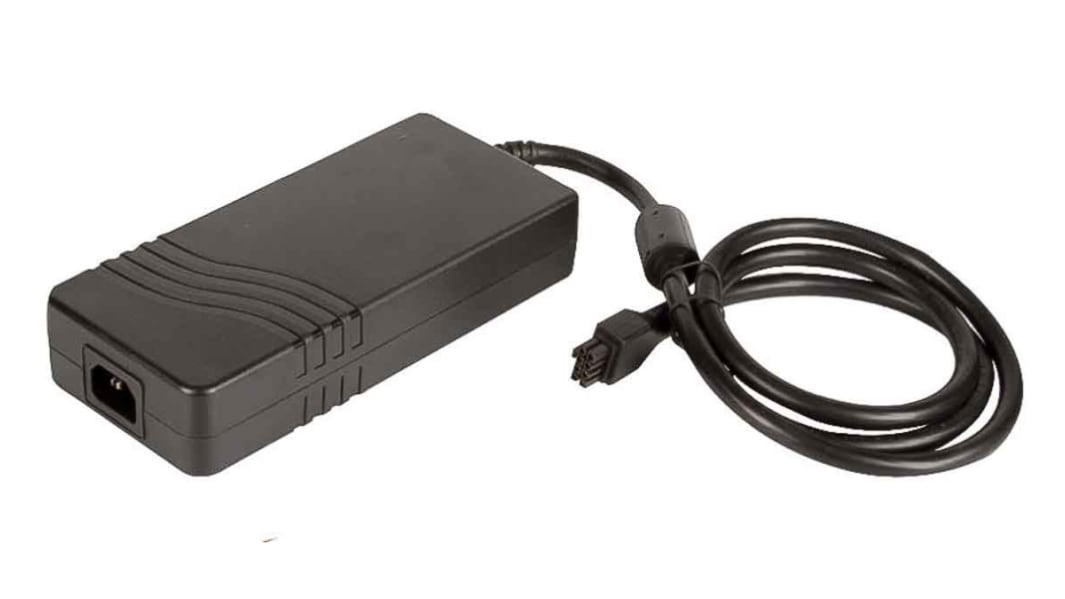

XP Power 5 Output Molex Mini Fit JR, 8 Way Connector AC-DC Converter Power Supplies AC/DC Adapter IEC 300 W 19V dc
- RS Stock No.:
- 200-6360
- Distrelec Article No.:
- 301-83-856
- Mfr. Part No.:
- VES300PS19
- Brand:
- XP Power
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 200-6360
- Distrelec Article No.:
- 301-83-856
- Mfr. Part No.:
- VES300PS19
- Brand:
- XP Power
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | XP Power | |
| Product Type | AC/DC Adapter | |
| Sub Type | AC-DC Converter Power Supplies | |
| Plug Type | IEC | |
| Output Voltage | 19V dc | |
| Power | 300W | |
| Output Connector Type | Molex Mini Fit JR, 8 Way Connector | |
| Cable Length | 1200mm | |
| Number of Outputs | 5 | |
| Regulated/Unregulated | Regulated | |
| Minimum Operating Temperature | -10°C | |
| Adapter Current | 15.79A | |
| Maximum Operating Temperature | 60°C | |
| Length | 197.4mm | |
| Depth | 39mm | |
| Width | 88.9mm | |
| Standards/Approvals | UL 60950-1, EN 60950-1, CE, CB | |
| Maximum Input Voltage | 264V ac | |
| Efficiency | 92% | |
| Energy Efficiency Level | VI | |
| Minimum Input Voltage | 100V ac | |
| Load Regulation | ±0.5 % | |
| Series | VES300 | |
| Select all | ||
|---|---|---|
Brand XP Power | ||
Product Type AC/DC Adapter | ||
Sub Type AC-DC Converter Power Supplies | ||
Plug Type IEC | ||
Output Voltage 19V dc | ||
Power 300W | ||
Output Connector Type Molex Mini Fit JR, 8 Way Connector | ||
Cable Length 1200mm | ||
Number of Outputs 5 | ||
Regulated/Unregulated Regulated | ||
Minimum Operating Temperature -10°C | ||
Adapter Current 15.79A | ||
Maximum Operating Temperature 60°C | ||
Length 197.4mm | ||
Depth 39mm | ||
Width 88.9mm | ||
Standards/Approvals UL 60950-1, EN 60950-1, CE, CB | ||
Maximum Input Voltage 264V ac | ||
Efficiency 92% | ||
Energy Efficiency Level VI | ||
Minimum Input Voltage 100V ac | ||
Load Regulation ±0.5 % | ||
Series VES300 | ||
- COO (Country of Origin):
- CN
The Xp Power VES255 series is used as desktop power supply. It has high power density and is energy efficient.
<0.15 W Standby Power
China compulsory certification (CCC) qualified
-10 °C to 60 °C Operation
Low Cost
