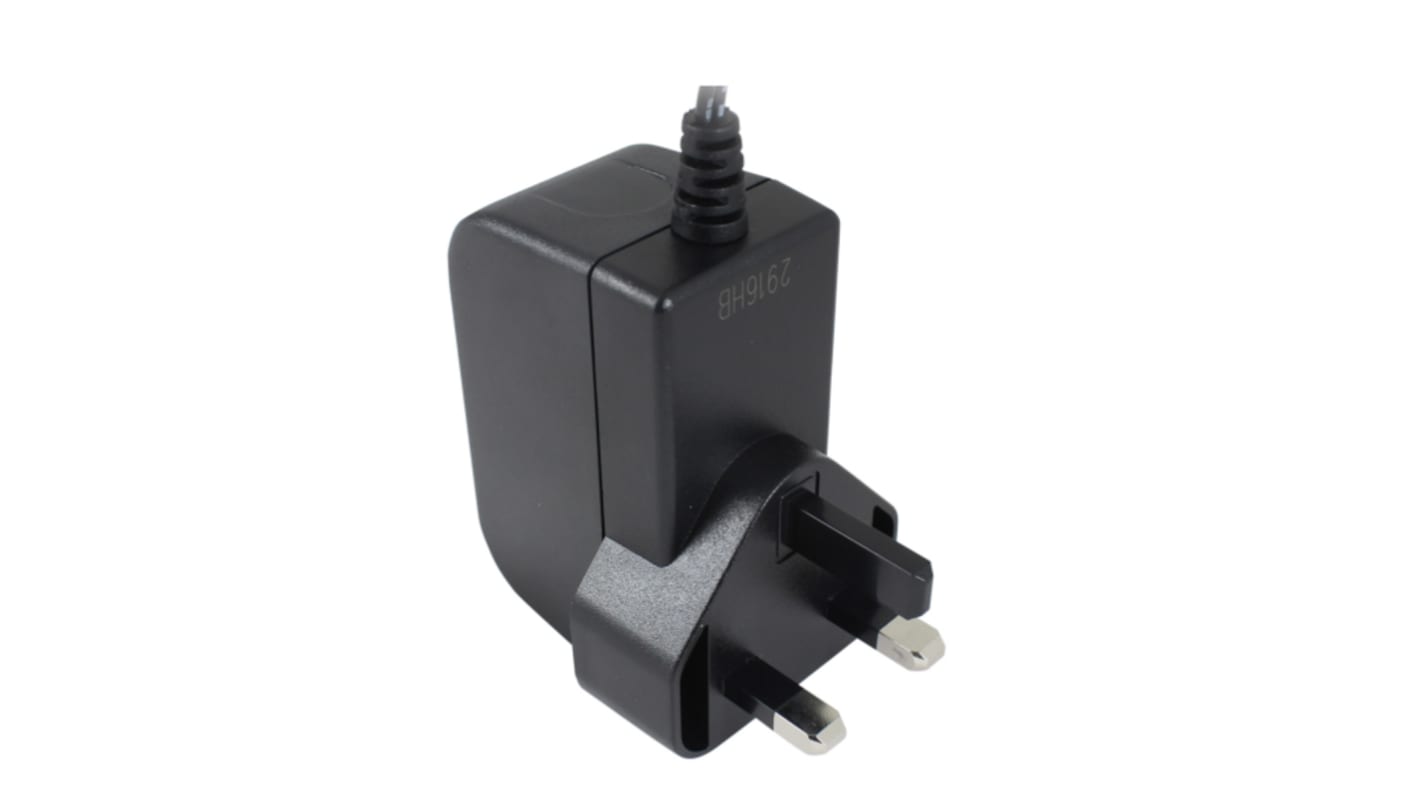

RS PRO, 12.5W Plug Adapter 5V dc, 2.5A, Level VI Efficiency, 1 Output Power Adapter, Type G

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

The RS Pro Range of Class II 12.5watt AC/DC United Kingdom plug-in power supplies provide 12.5 watts of continuous power in a compact fixed wall plug enclosure suitable for use in many general power applications.

Features:

• United Kingdom Fixed AC Head
• 3 Year Warranty
• Level VI Efficiency
• CE Approved

Specifications
Attribute Value
Type Power Adapter
Plug Type Type G
Output Voltage 5 V dc
Input Voltage 100 V ac, 110 V ac, 115 V ac, 120 V ac, 127 V ac, 220 V ac, 230 V ac, 240 V ac
Output Current 2.5A
Maximum Temperature +40°C
Output Connector 2.1 x 5.5 x 12 mm Centre Positive
Input Connector UK Plug
Number of Outputs 1
Power Rating 12.5W
Regulated/Unregulated Regulated
Cable Length 1500mm
Load Regulation ±5%
Depth 77.4mm
Width 50mm
Length 70mm
Minimum Temperature 0°C
Energy Efficiency Level VI
Standards Met CE Certified
Available to back order for despatch 17/12/2019
Price Each
£ 6.91
(exc. VAT)
£ 8.29
(inc. VAT)
Units
Per unit
1 - 4
£6.91
5 - 9
£6.56
10 - 24
£6.23
25 - 49
£5.88
50 +
£5.53
