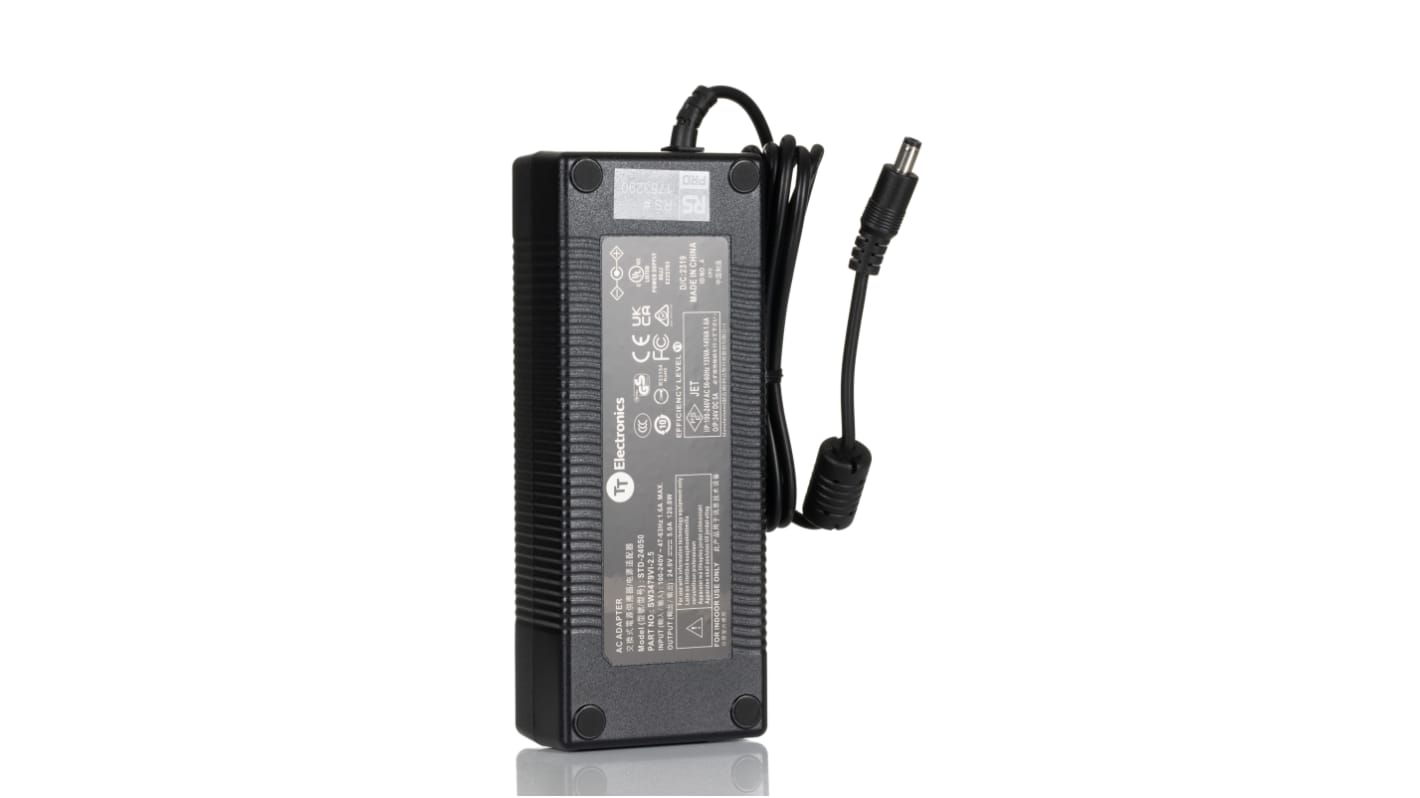

RS PRO 2.5 x 5.5 mm Centre Positive Power Adapter AC/DC Adapter C14 120 W 24V dc Output, 5 A
- RS Stock No.:
- 175-3290
- Distrelec Article No.:
- 304-02-738
- Brand:
- RS PRO
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£86.06
(exc. VAT)
£103.27
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 605 unit(s) shipping from 07 September 2026
- Plus 43 unit(s) shipping from 07 September 2026
- Plus 288 unit(s) shipping from 16 March 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £86.06 |
| 5 - 9 | £83.49 |
| 10 - 24 | £80.90 |
| 25 - 49 | £78.33 |
| 50 + | £75.73 |
*price indicative
- RS Stock No.:
- 175-3290
- Distrelec Article No.:
- 304-02-738
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Sub Type | Power Adapter | |
| Product Type | AC/DC Adapter | |
| Plug Type | C14 | |
| Output Voltage | 24V dc | |
| Output Connector Type | 2.5 x 5.5 mm Centre Positive | |
| Power | 120W | |
| Number of Outputs | 1 | |
| Minimum Operating Temperature | 0°C | |
| Adapter Current | 5A | |
| Input Connector Type | IEC 320-C14 | |
| Maximum Operating Temperature | 40°C | |
| Standards/Approvals | EN 60950-1, CE | |
| Depth | 39mm | |
| Width | 66mm | |
| Length | 168mm | |
| Efficiency | 88% | |
| Maximum Input Voltage | 240V ac | |
| Energy Efficiency Level | VI | |
| Load Regulation | ±5 % | |
| Series | SW34 | |
| Minimum Input Voltage | 90V ac | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Sub Type Power Adapter | ||
Product Type AC/DC Adapter | ||
Plug Type C14 | ||
Output Voltage 24V dc | ||
Output Connector Type 2.5 x 5.5 mm Centre Positive | ||
Power 120W | ||
Number of Outputs 1 | ||
Minimum Operating Temperature 0°C | ||
Adapter Current 5A | ||
Input Connector Type IEC 320-C14 | ||
Maximum Operating Temperature 40°C | ||
Standards/Approvals EN 60950-1, CE | ||
Depth 39mm | ||
Width 66mm | ||
Length 168mm | ||
Efficiency 88% | ||
Maximum Input Voltage 240V ac | ||
Energy Efficiency Level VI | ||
Load Regulation ±5 % | ||
Series SW34 | ||
Minimum Input Voltage 90V ac | ||
- COO (Country of Origin):
- CN
RS PRO 24V Power Supply
The RS PRO is a 24VDC power supply AC/DC switch-mode power desktop AC adapter. This range of switch-mode power supply provides 120W of continuous output power in a high-quality compact enclosure suitable for many general power applications. It has an input frequency of 50-60Hz. While the input voltage range is 100-240VAC (wide range), its maximum input current is 1.6mA. It gives an efficiency of 88%. It gives fully regulated output and most importantly, is short circuit protected. It is a reliable product with high MTBF. The plug type is C14. Thermal protection is of latching type. The desktop power supply overall cable length is 168mm. It has low power consumption, less than 0.10W.
Features and Benefits
• Universal AC input
• Fully regulated output
• Overvoltage and short circuit protected
• High-efficiency
• LED power good indicator
• AC input fuse
• Operating temperature ranges between 0°C and 40°C
Applications
• It is used in information technology equipment (ITE) commercial
• A desktop power supply is a PSU specifically designed to be used by small items or applications, like laptops and CCTV cameras
• Networking and peripherals
• Gaming machines
Certifications
• CCC
• CE
• CULus
• FCC
• TUV
• UL
Note
Output connector dimensions; 2.5 x 5.5 x 9.5 mm, with centre positive
