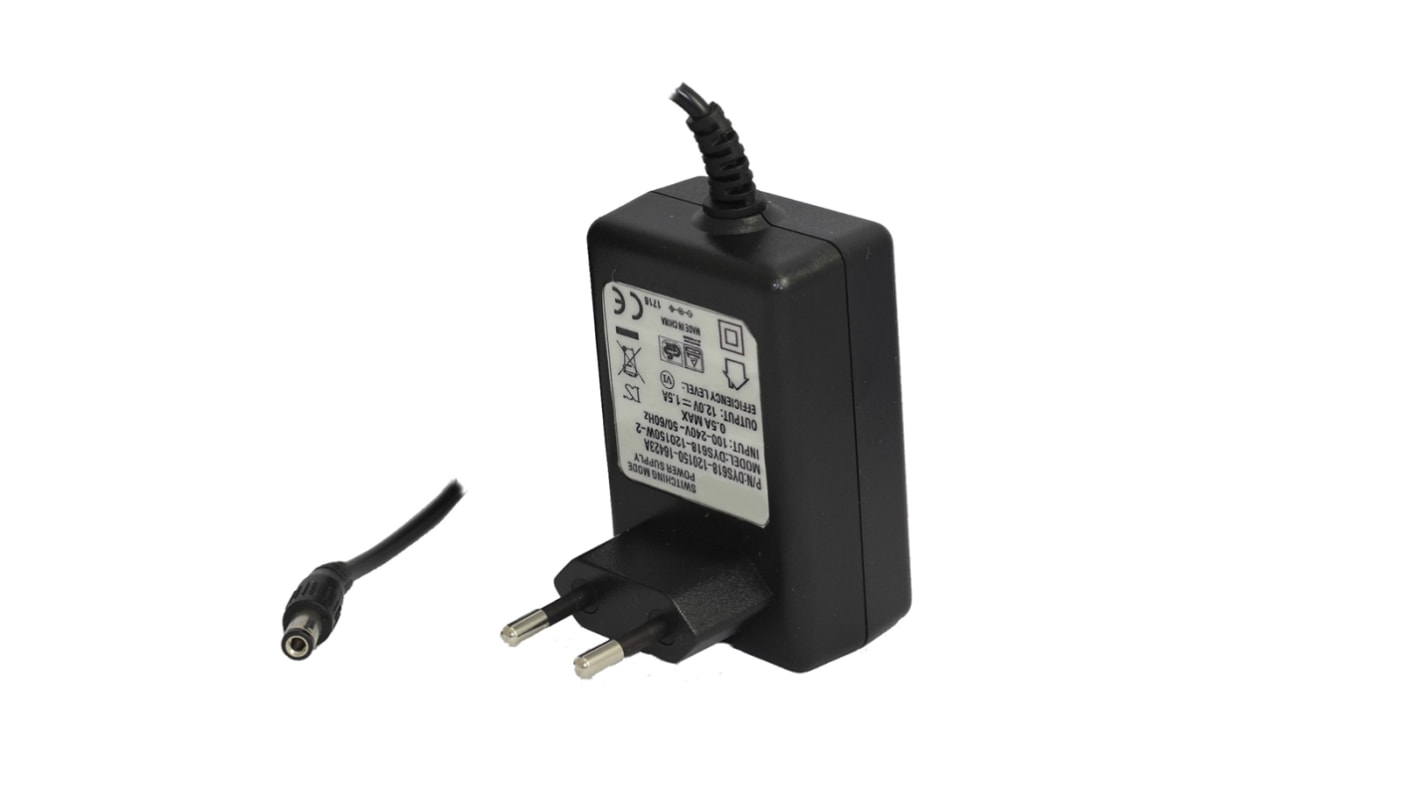

RS PRO 50W Plug In Power Supply 12V dc Output, 4.2A Output
- RS Stock No.:
- 175-2827
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£18.02
(exc. VAT)
£21.62
(inc. VAT)
- RS Stock No.:
- 175-2827
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Output Voltage | 12V dc | |
| Input Voltage | 100 V ac, 110 V ac, 115 V ac, 120 V ac, 127 V ac, 220 V ac, 230 V ac, 240 V ac | |
| Output Current | 4.2A | |
| Maximum Temperature | +45°C | |
| Output Connector | 2.1 x 5.5 x 12 mm Centre Positive | |
| Input Connector | EU Plug | |
| Number of Outputs | 1 | |
| Power Rating | 50W | |
| Regulated/Unregulated | Regulated | |
| Cable Length | 1.5m | |
| Medical Approved | No | |
| Efficiency | 88% | |
| Load Regulation | ±5% | |
| Minimum Temperature | 0°C | |
| Energy Efficiency Level | VI | |
| Depth | 52mm | |
| Type | Switched Mode Power Supply | |
| Width | 50mm | |
| Length | 83.5mm | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Output Voltage 12V dc | ||
Input Voltage 100 V ac, 110 V ac, 115 V ac, 120 V ac, 127 V ac, 220 V ac, 230 V ac, 240 V ac | ||
Output Current 4.2A | ||
Maximum Temperature +45°C | ||
Output Connector 2.1 x 5.5 x 12 mm Centre Positive | ||
Input Connector EU Plug | ||
Number of Outputs 1 | ||
Power Rating 50W | ||
Regulated/Unregulated Regulated | ||
Cable Length 1.5m | ||
Medical Approved No | ||
Efficiency 88% | ||
Load Regulation ±5% | ||
Minimum Temperature 0°C | ||
Energy Efficiency Level VI | ||
Depth 52mm | ||
Type Switched Mode Power Supply | ||
Width 50mm | ||
Length 83.5mm | ||
- COO (Country of Origin):
- CN
These series of FIXED UK or EURO Plug-in Power Supplies comply with ErP II & Level VI energy regulations. These PSUs are class II Double Insulated products, have a high efficiency rating, No load power consumption and low leakage current and comply with the relevant safety and EMC standards. Typical applications for theese series of Interchangeable Plug-in power supplies include IT, point of sale, networking and peripherals equipment, gaming machines, amongst many others.
Universal input voltages 100-240 VAC
DoE Level VI Efficiency
0-40ºC Operating Temperature
Limited Power Source (LPS)
Over Voltage & Short Circuit Protection
RoHS-REACH Compliant
Meets EN 55032
Fixed EU AC Head
2.1 X 5.5 DC Connector
DoE Level VI Efficiency
0-40ºC Operating Temperature
Limited Power Source (LPS)
Over Voltage & Short Circuit Protection
RoHS-REACH Compliant
Meets EN 55032
Fixed EU AC Head
2.1 X 5.5 DC Connector
